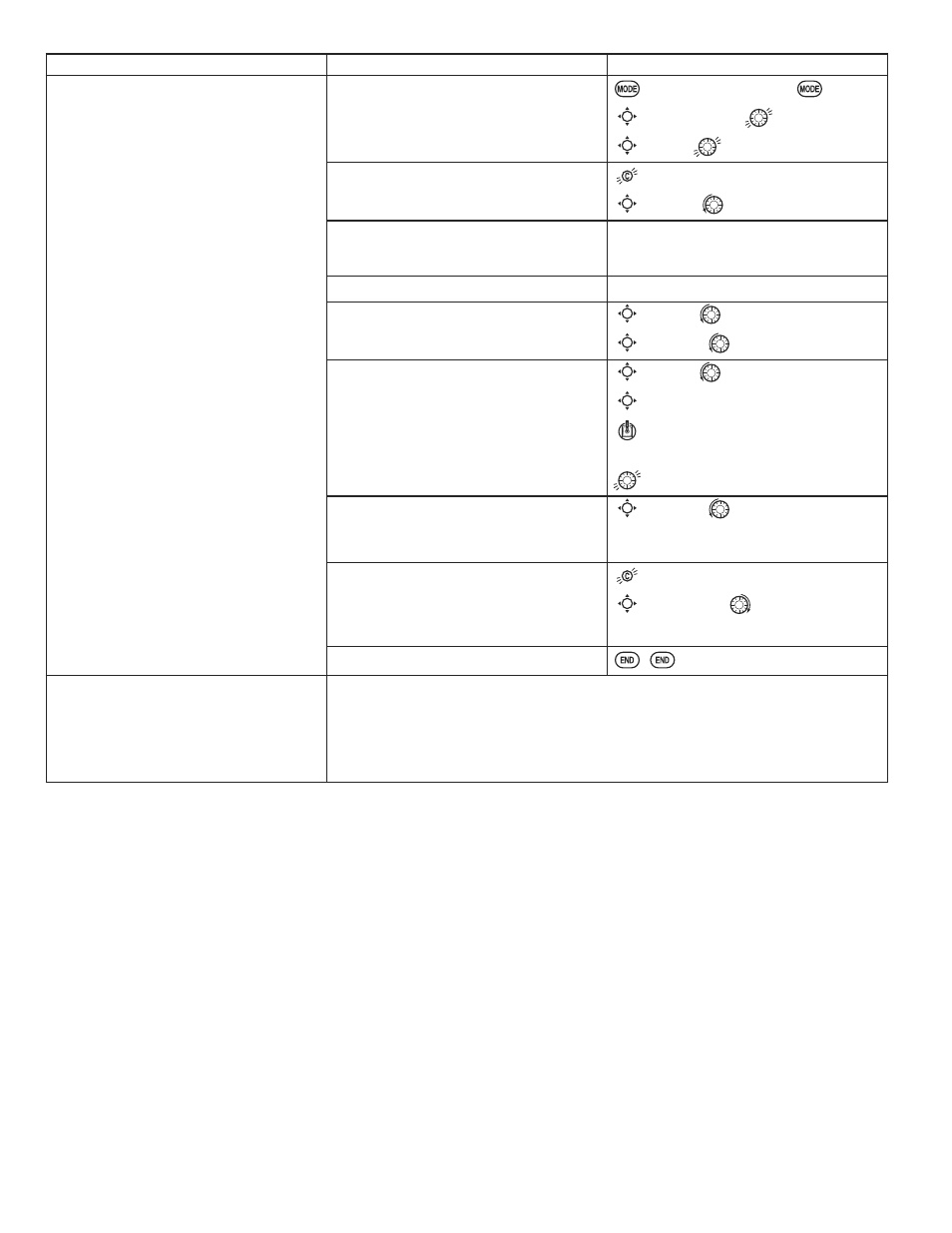

GOAL of EXAMPLE:
STEPS:
INPUTS:
Set up a RUDD-ELEV curve mix on a
model that pitches down severely at
full rudder and not at all with minimal
rudder input, and pitches worse on right
rudder than left:
Point 1: 25%
Point 2: 8%
Point 3: 0%
Point 4: 10%
Point 5: 28%
ON
when SWITCH C is down.
LINK
should be ON if model has twin
e l e v a t o r s e r v o s . O t h e r w i s e , LINK
remains OFF.
(Note that point 3 is 0%. Otherwise,the
elevator would be retrimmed when the
mix is active and no rudder input is
given.)
Open an unused curve programmable
mix. (Ex: use PROG.MIX7 since it is
already set-up for RUDDER-ELEV.)
for 1 second.
(If BASIC,
again.)
C
to PROG.MIX-.
C
to 7 >.
Activate the function.
to page 2.
C
to MIX.
to ON.
Choose master and slave channels.
(Ex: do not change MAS or SLV).
already RUDD
already ELEV
Set LINK as needed. (Ex: off)
Assign SWITCH and position.
(Ex: change from F to C, DOWN.)
C
to SW.
to C.
C
to POSI.
to DOWN.
Optional: set switch to STk-THR to
activate mix with THROTTLE STICK.
(See above for details.)
C
to SW.
to STk-THR.
C
to POSI.
THROTTLE STICK to desired
point.
for 1 second to set.
Optional: set switch position to NULL.
Makes mix active at all times. Not
compatible with STk-THR.
C
to POSI.
to NULL.
Set desired percent at the stick points.
(Ex: listed at left.)
to page 1.
C
to POINT-1.
to 25%.
Repeat for points 2-5.
Close menu.
Where next?
Adjust servo END POINTs: see p. 39.
Set up AILEVATOR: see p. 57.
Set up linear programmable mixes, ex: RUDDER-to-Aux2(twin rudder servos):see p.
68, or additional curve mix, ex: RUDDER-AILERON: see p. 71.
View numerous mix setups: www.futaba-rc.com\faq\
