Modulation select (MODUL): sets the type of modulation transmitted.
The modulation of your receiver will determine whether you utilize FM (PPM
PCM or 2.4G-10CH7CH setting in MODUL
during transmission. Note that you have to turn your transmitter off and back on before a modulation change becomes
effective. If you choose PCM or 2.4G-10CH
7CH, be sure you understand and set the FailSafe (F/S ) settings as you intended
(see p. 50). When utilize PPM or PCM setting, use the TP-FM module. When you utilize 2.4G-10CH 7CH setting, use the
TM-10 2.4GHz module.
PCM = Pulse Code Modulation PPM = Pulse Position Modulation (also called FM)
2.4G-10CH 7CH = FASST-2.4GHz system (10CHPRGH7CH mode)
Adjustability:
• PCM setting for all Futaba PCM1024 receivers, regardless of number of
FKDQQHOVLH5'3'3'3'3'36'36'36
• PPM setting for all Futaba compatible (negative shift) FM receivers, regardless
of number of channels (ie. R127DF, R123F, R138DF, R148DF).
• Not compatible with PCM512 receivers such as the R128DP and R105iP.
• Not compatible with other brands of PCM receiver, or positive shift FM
UHFHLYHUVLH-5$LUWURQLFV
• You do not need a different module in the radio to transmit in PCM . For more
information on PCM, please see our website.
• 2.4G-10CH setting for all Futaba FASST-2.4G Multi-ch mode receivers,
UHJDUGOHVVRIQXPEHURIFKDQQHOVLH5)65)6
• 2.4G-7CH setting for all Futaba FASST-2.4G 7ch mode receivers, regardless of
QXPEHURIFKDQQHOVLH5))65)65)6
NOTE: When you change models in MODEL SELECT, if the new model is set to the other modulation type,
\RXPXVWF\FOHWKHWUDQVPLWWHUSRZHUWRFKDQJHPRGXODWLRQV7KHPRGXODWLRQZLOOÀDVKRQWKHKRPHVFUHHQ
to remind you until you do so. See p. 30, MODEL SELECT, for details.

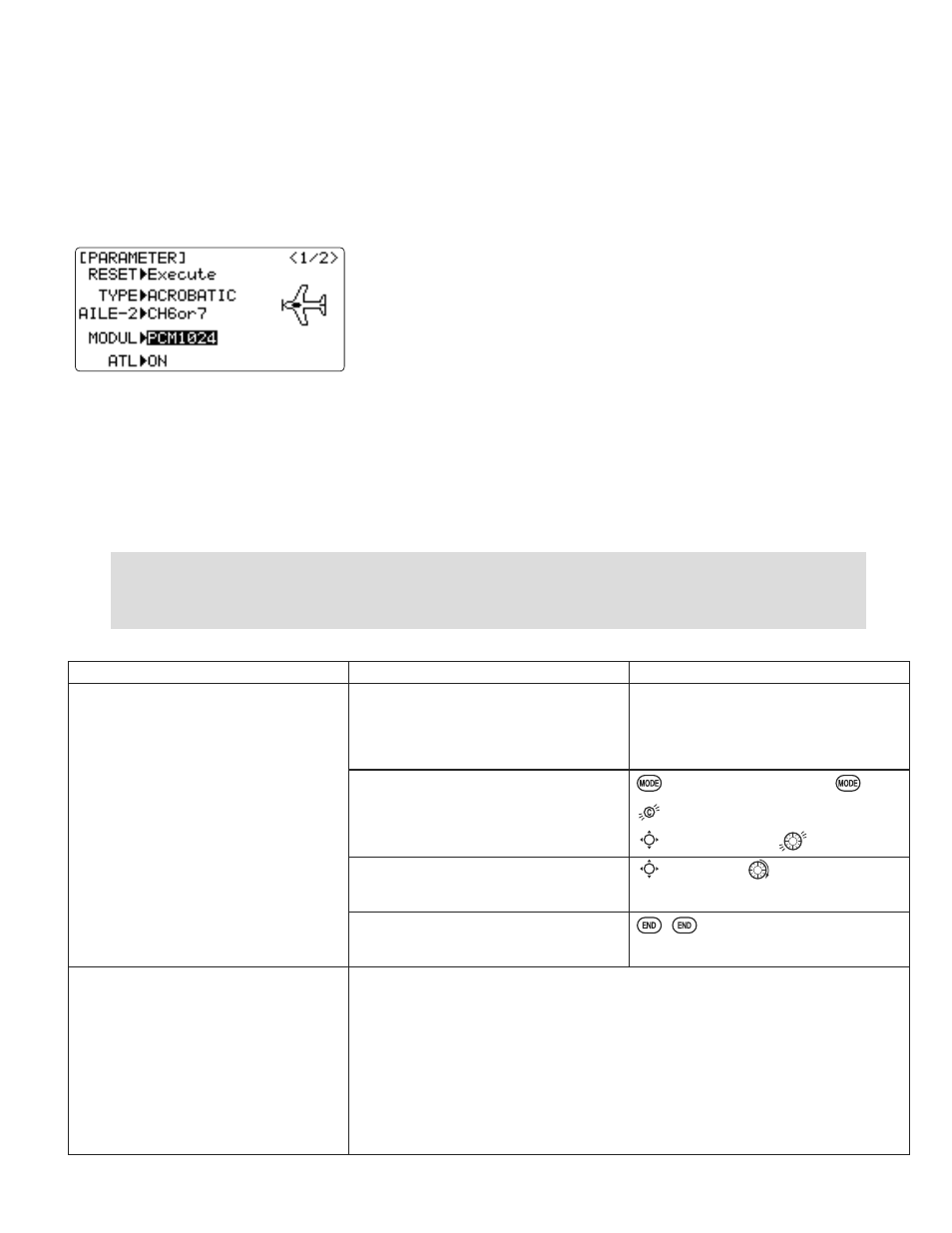

GOAL of EXAMPLE: STEPS: INPUTS:
Change model 1 from FM (PPM) to
PCM
.
Confirm you are currently using the
proper model memory (Ex: 1) On home screen, check model name and
number on top left and the modulation
on top right. If it is not the correct
model, use MODEL SELECT, p. 30.
O p e n B A S I C m e n u , t h e n o p e n
PARAMETER
submenu.
for 1 second. (If ADVANCE, again.)
to 2nd page of menu.
C to PARAMETER.
Go to MODUL and change setting. C to MODUL. to PCM .
cycle power ÀDVKHVRQVFUHHQ
Close menu and cycle power.
POWER OFF. POWER ON.
Where next? Now that the model is in the proper modulation, the T10C should communicate
ZLWK WKH UHFHLYHU ,I LW GRHV QRW FRQILUP WKH PRGXODWLRQ IUHTXHQF\ RI WKH
receiver. [Futaba receivers ending in F use PPM(ex: R148DF), ending in P use
PCM
(ex: R149DP)].
Change MODEL TYPE WRJOLGHUKHOLFRSWHUVHHS
Set F/S settings for when PCM or 2.4G receiver sees interference: see p. 50.
Utilize servo REVERSE: see p. 38.
Adjust servo travel with END POINT: see p. 39.
6HWXSGXDOWULSOHUDWHVDQGH[SRQHQWLDOD/R,EXP): see p. 42.
