63
SELECT Mode Functions
Step
This function allows you to change the increment of the trim movement. This will
allow even finer adjustments to be made when the model is trimmed.
Functions Whose Step Amount Can Be Adjusted
The number of clicks of the steering trim, throttle trim, ATL function, D/R function,
channel 3, traction control function, throttle EXP function, steering EXP function
and A.B.S. function can be changed.

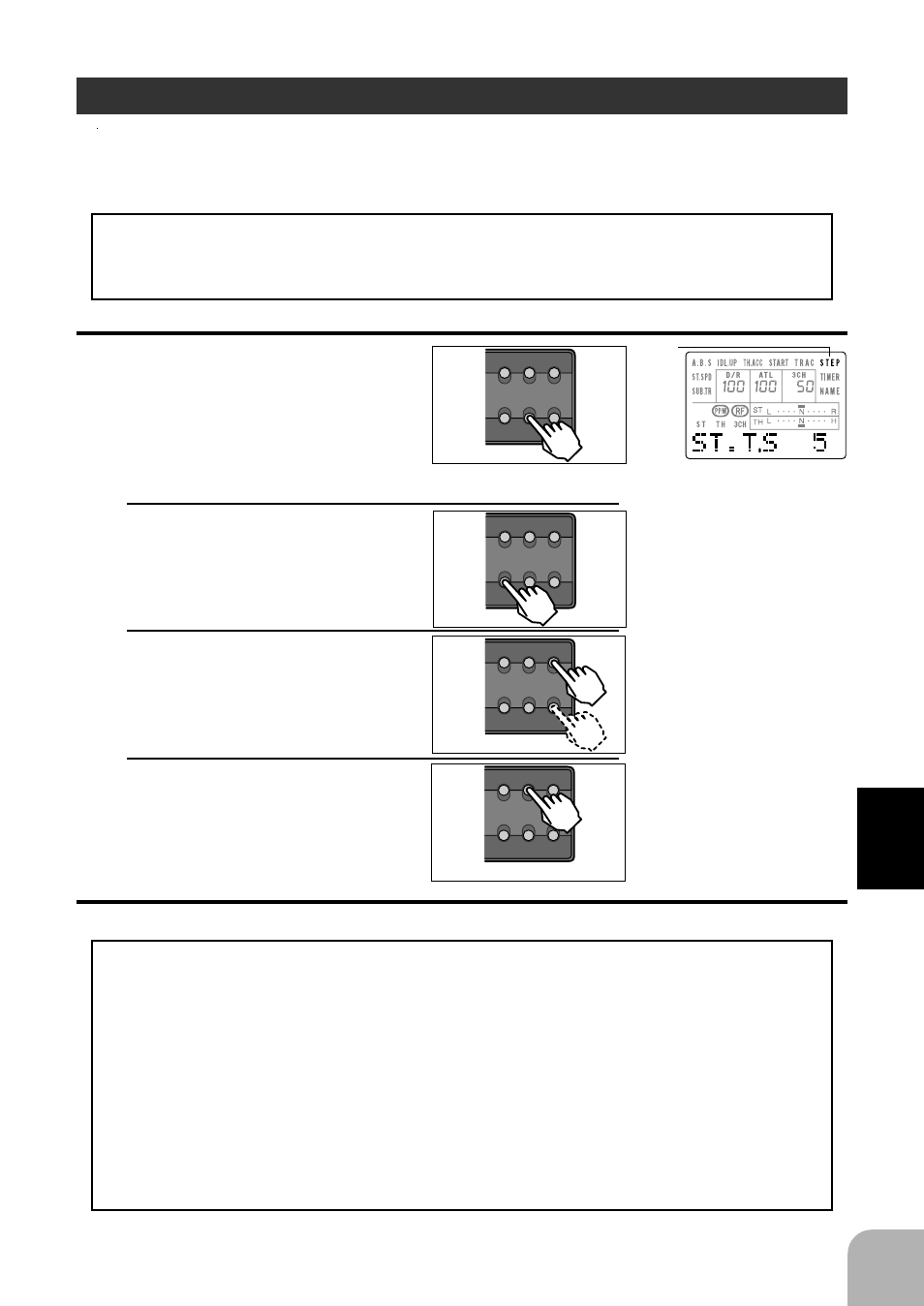

1. Call the Step function set-up
screen by pressing the
DOWN key three times at the
initial screen. (The steering
trim set-up screen is called
first.)
- 3 times
2. Select the step amount to be
changed by pressing the SE-
LECT key.
ST.T: Steering Trim
TH.T: Throttle Trim
D/R: D/R function
ATL: ATL function
3CH: Channel 3
TRC: Traction Control function
delay
AB.P: A.B.S. function return
amount
CYCL: A.B.S. function cycle
STEX: Steering EXP
TEXF: Throttle EXP (forward
side)
TEXB: Throttle EXP (back side)
3. Adjust the amount with the +
or - key.
4. At the end of adjustment.
press the UP key 3 times, or
press the DIRECT key twice.
(The display returns to the ini-
tial screen.)
-3 times
Set Value And Step Amount
- Steering trim/throttle trim (Setting range: 1~10)
When set to minimum (1), the total trim movement is approximately 160 clicks.
When set to maximum (10), the total trim movement is approximately 16 clicks.
- ATL function/D/R function/traction control function/A.B.S function (return
amount)/A.B.S. function (cycle) (Setting range: 1~10%)
The % value operated by one click relative to the set value of each travel can be set.
-Channel 3 (Setting range: 0.1, 0.2, 0.5, 1.0, 2.0, 5.0, 10, 20, 3PS, 2PS)
The total servo travel is 1 step each 0.1. Therefore, when the set value is 5.0, the total
travel is 50 steps (5.0/0.1=50). For 3PS, the total travel is 2 clicks and for 2PS, the
total travel is 1 clicks.
