Futaba 3PJS - Manual (Page 33)

33
Direct Mode Functions
Caution!
Be sure that the
steering servo
does not hum.

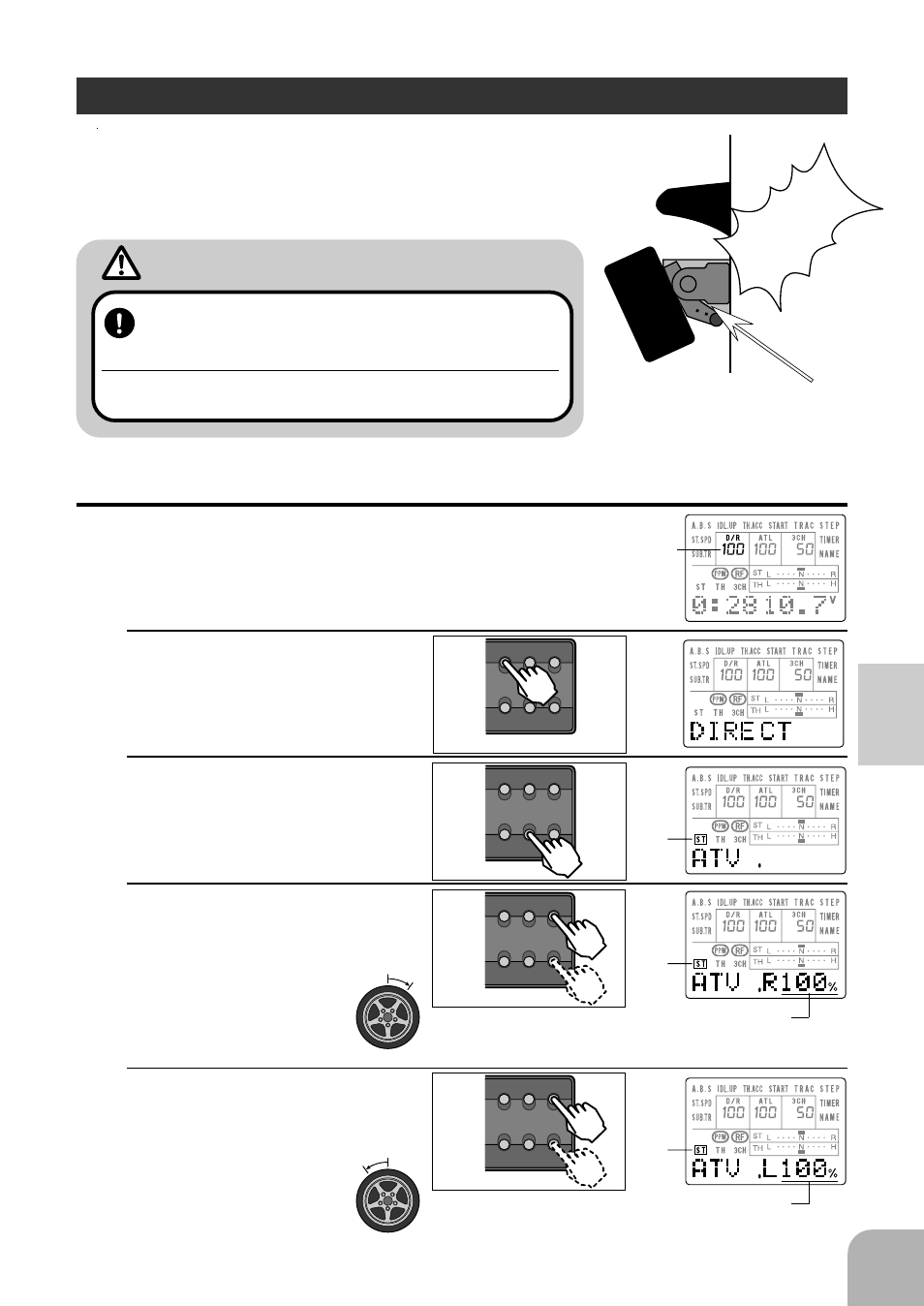

Steering ATV
The ATV function is used to set the steering servo travel
in both directions using the linkage. Make this setting
when the left and right turning angles and the turning ra-
dius differ with the characteristics of the model.
When steering, be sure that the servo does not strike
the knuckle stopper and unreasonable force is not
applied to the servo horn.
Excessive force applied to the servo horn may result in damage to the
servo and loss of control.
- Select the ATV setting at the
contact point.
Before setting the steering ATV, set for 100%
maximum servo travel using the steering D/R
dial (initial setting: GD1).
1. Access the DIRECT mode by
pressing the DIRECT key.
2. Call the ATV function set-up
screen by pressing the ATV
key.
3. To set the steering right side,
turn the steering wheel fully
clockwise and increase and
decrease the servo
throw with the + and -
keys.
Setting range; 30~120%
- Return to the initial value (100%) by pressing the + and - keys
simultaneously for about one second.
4. To set the steering left side,
turn the steering wheel fully
clockwise and increase and
decrease the servo
throw with the + and -
keys.
Setting range: 30~120%
- Return to the initial value (100%) by pressing the + and - keys
simultaneously for about one second.
Warning
100%
Blink
Blink
Blink
DIRECT ST.EXP M.SEL
UP +
SETUP RESET
SELECT DOWN -
TH.EXP ATV CUSTOM
DIRECT ST.EXP M.SEL
UP +
SETUP RESET
SELECT DOWN -
TH.EXP ATV CUSTOM
DIRECT ST.EXP M.SEL
UP +
SETUP RESET
SELECT DOWN -
TH.EXP ATV CUSTOM
DIRECT ST.EXP M.SEL
UP +
SETUP RESET
SELECT DOWN -
TH.EXP ATV CUSTOM
