C-PRO NANO HPR0 APPLICATION MANUAL
Page 9
2 Functioning
Translation of terms used and notes
Digital inputs
Inter été/hiver = summer/winter switch (cooling/heating)
Pressostat HP = HIGH pressure switch
Pressostat BP = LOW pressure switch
Controleur de débit d’eau circuit chauffage = OUTLET circuit flow switch
Controleur de débit d’eau circuit chauffage = GEOTHERMIC circuit flow switch
Thermostat d’ambiance = ROOM thermostat (inserts compressor 1)
Thermostat d’ambiance = EXTERNAL thermostat (inserts compressor 2)
Analogue Inputs
Sonde de dèpart d’eau = OUTLET temperature probe
Digital outputs
Vanne 4 voies = 4-way valve (cycle inversion)
Compressor 1
Compressor 2
Circolateur chauffage = OUTLET circuit pump
Circolateur capteur = GEO circuit pump
Set
Consigne 1 = OUTLET temperature set in functioning mode: “heating”
Consigne 2 = OUTLET temperature set in functioning mode: “cooling”

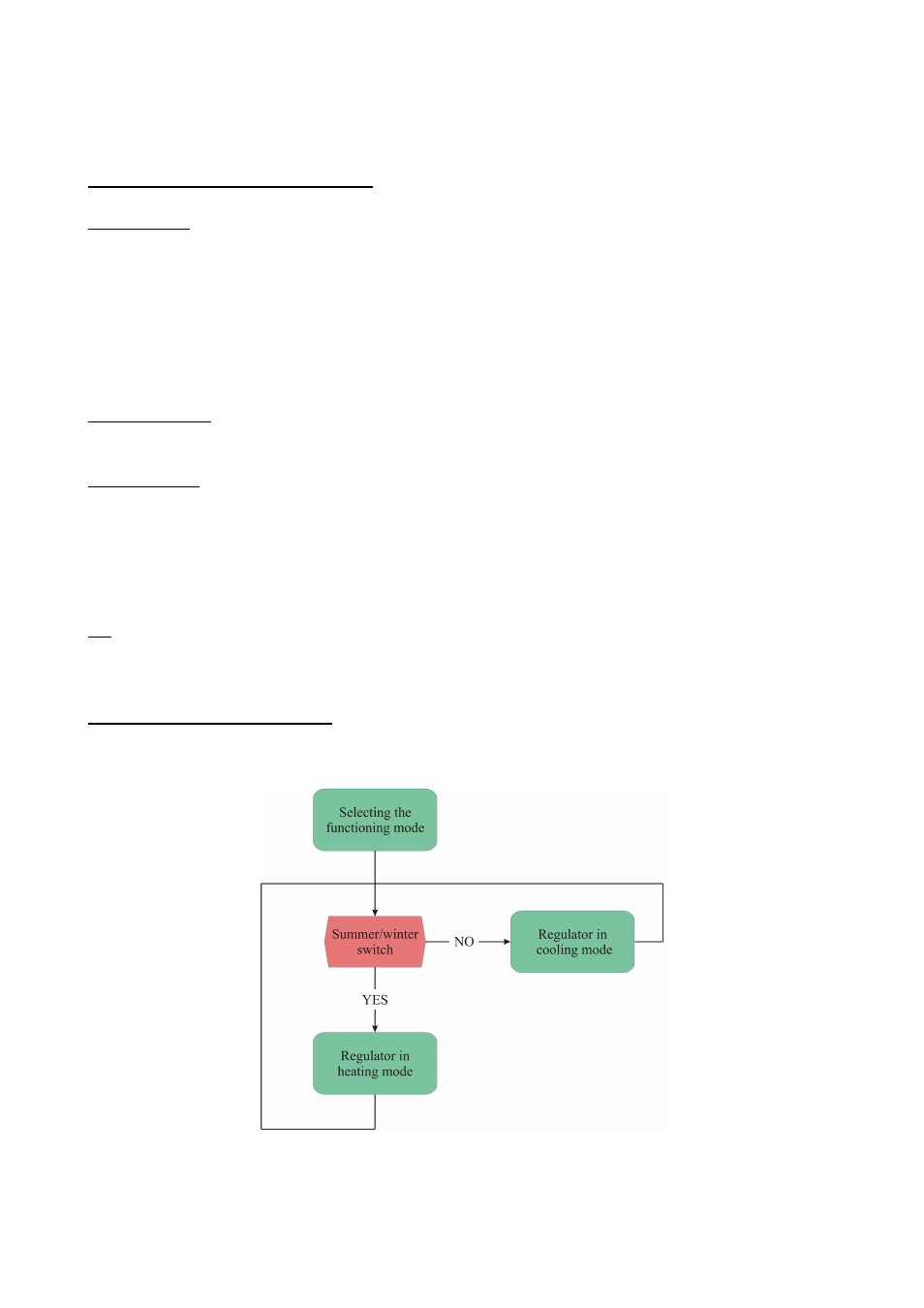

Selecting the functioning mode
