1.2 Connection lay out for C-PRO NANO INTRABUS

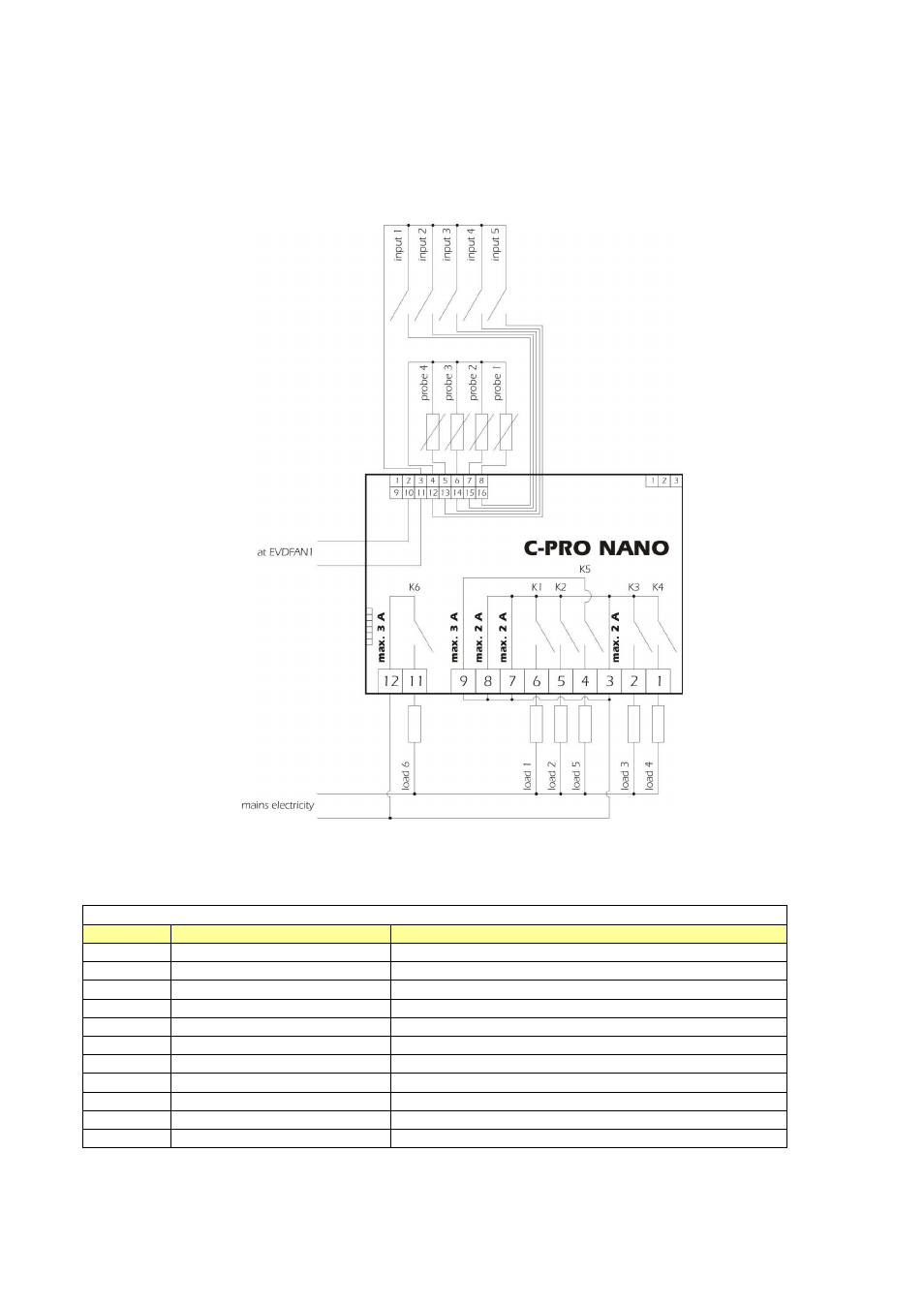

Below find the connection lay out of the C-PRO NANO controller with tables relative to the
meaning of the inputs and outputs.
C-PRO NANO connections
Connector 1: Connection for the relay outputs
Conn. Code Description
C1-1 DO4 Relay n.4 normally open contact
C1-2 DO3 Relay n.3 normally open contact
C1-3 COMMON 1 Common relays n.1,2,3,4
C1-4 DO5 Relay n.5 normally open contact
C1-5 DO2 Relay n.2 normally open contact
C1-6 DO1 Relay n.1 normally open contact
C1-7 COMMON 1 Common relays n.1,2,3,4
C1-8 COMMON 1 Common relays n.1,2,3,4
C1-9 COMMON DO5 Common relay n.5
C1-10 Not used
C1-11 DO6 Relay n.6 normally open contact
