C-PRO NANO HPR0 APPLICATION MANUAL
Page 14
3 User Interface

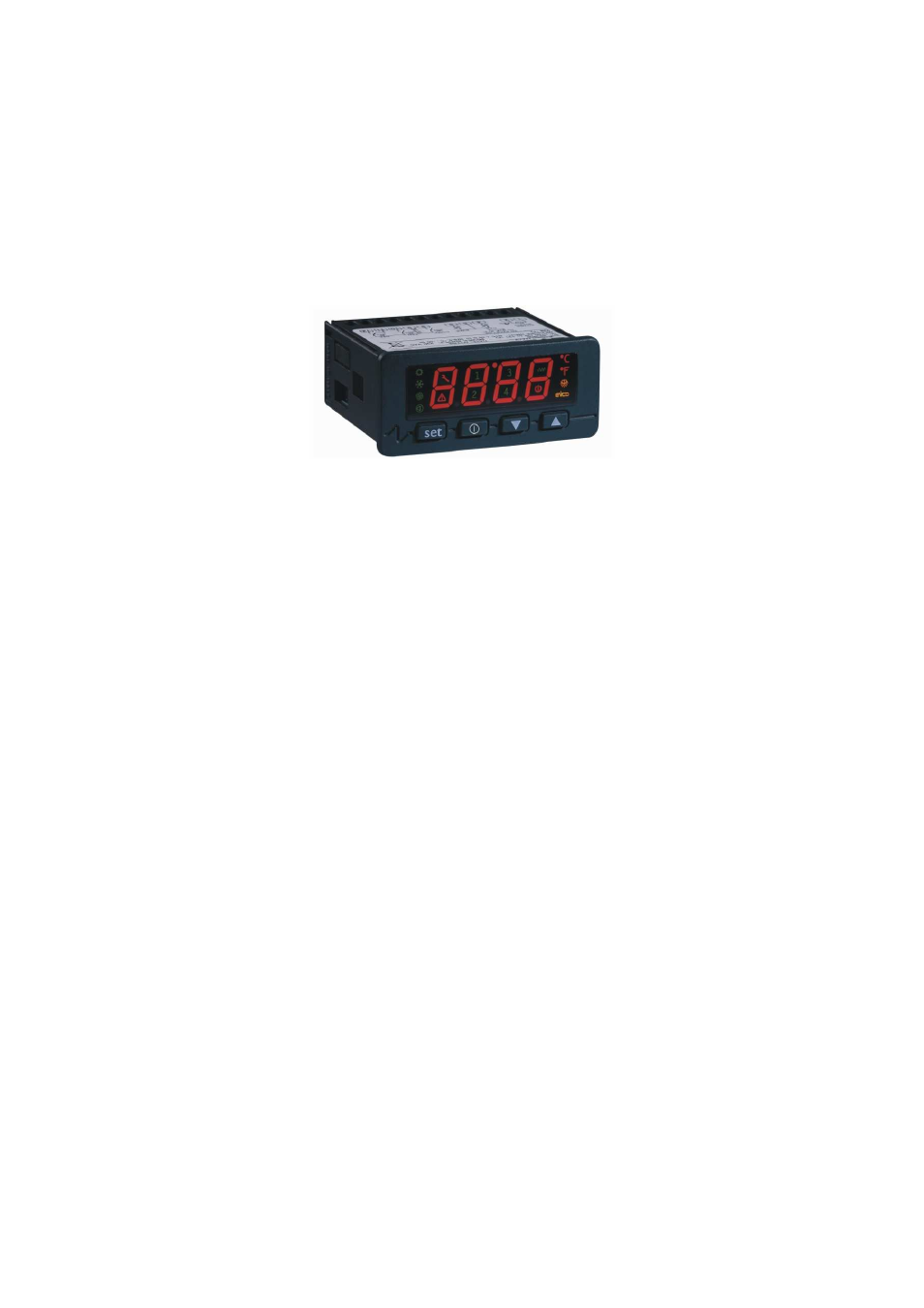

3.1 Display and keyboard
The following interface is envisioned for the application:
⋅
A 4 display interface with 7 Built-In segments with icons
⋅
With 4 keys with navigation/editing the pages and they differ for display
The following icons are also used:
- Summer icon: identifies the cooling functioning mode (summer - chiller): if the heat
regulation requests, it is on in fixed mode, otherwise it is off.
- Winter icon: identifies the heating functioning mode (winter - heat pump): if the heat
regulation requests, it is on in fixed mode, otherwise it is off.
- Fans icon: not used
- Pumps icon: identifies the state of the pumps (geothermic and flow). If on, the pumps result
as running, otherwise it is off. If flashing, it signals that the flow switch has intervened in at
least one of the two circuits (no water - liquid alarm).
- Maintenance icon: not used
- Alarm icon: identifies the presence or not of alarms. Alarms are present if it is on, otherwise
it remains off. When flashing, it signals the presence of a new alarm not yet viewed. The
icon flashes if there are alarms when the machine is off.
- Icons 1,2: identify the state of the individual compressors. If on, the compressor is
functioning, otherwise it is off. The flashing indicates that the compressor has been stopped
for a pressure switch intervention (HIGH or LOW pressure alarm).
- External ventilated heat exchanger anti-freeze resistance icon: not used
- Stand-by icon: not used
- Defrosting icon: not used
-
°C/°F icon: used only in °C
