Genesys Reference Manual
www.digilentinc.com page 26 of 28
Copyright Digilent, Inc. All rights reserved. Other product and company names mentioned may be trademarks of their respective owners

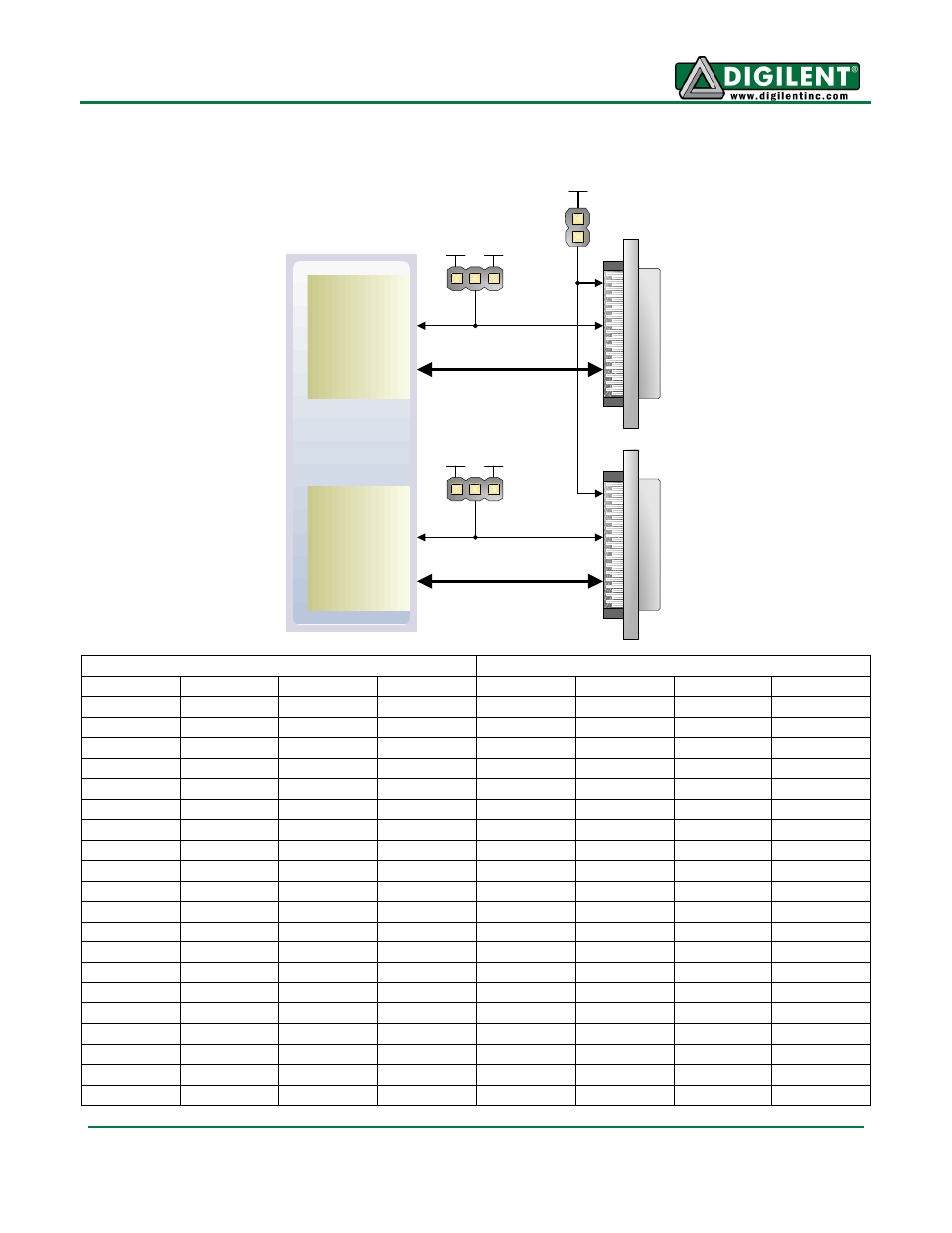

connector VCC may be set to 3.3V, 2.5V, left unconnected or driven from an external source using
jumpers JP11 (J1) and JP12 (J2).
VHDC Connector J1 VHDC Connector J2
Name Pin Name Pin Name Pin Name Pin
IO1-P B32 IO1-N A33 IO21-P W34 IO21-N V34
IO2-P C32 IO2-N D32 IO22-P V32 IO22-N V33
IO3-P B33 IO3-N C33 IO23-P AA34 IO23-N Y34
IO4-P E32 IO4-N E33 IO24-P Y33 IO24-N AA33
IO5-P C34 IO5-N D34 IO25-P AC33 IO25-N AB33
IO6-P G32 IO6-N H32 IO26-P Y32 IO26-N W32
IO7-P F33 IO7-N E34 IO27-P AC34 IO27-N AD34
IO8-P J32 IO8-N H33 IO28-P AC32 IO28-N AB32
IO9-P G33 IO9-N F34 IO29-P AF34 IO29-N AE34
IO10-P K33 IO10-N K32 IO30-P AF33 IO30-N AE33
IO11-P H34 IO11-N J34 IO31-P AG33 IO31-N AH33
IO12-P L34 IO12-N K34 IO32-P AH34 IO32-N AJ34
IO13-P L33 IO13-N M32 IO33-P AD32 IO33-N AE32
IO14-P N33 IO14-N M33 IO34-P AK34 IO34-N AK33
IO15-P P32 IO15-N N32 IO35-P AG32 IO35-N AH32
IO16-P P34 IO16-N N34 IO36-P AM33 IO36-N AM32
IO17-P R33 IO17-N R32 IO37-P AJ32 IO37-N AK32
IO18-P T33 IO18-N R34 IO38-P AN34 IO38-N AN33
IO19-P U32 IO19-N U31 IO39-P AL34 IO39-N AL33
IO20-P U33 IO20-N T34 IO40-P AN32 IO40-N AP32
3.3V 2.5V
Virtex 5
J1
VCCO
Pins (x3)
20 Matched Pairs
JP11
Bank 11
Switched VU
JP1
3.3V 2.5V
J2
VCCO
Pins (x3)
20 Matched Pairs
JP12
Bank 13
