Genesys Reference Manual
www.digilentinc.com page 21 of 28
Copyright Digilent, Inc. All rights reserved. Other product and company names mentioned may be trademarks of their respective owners

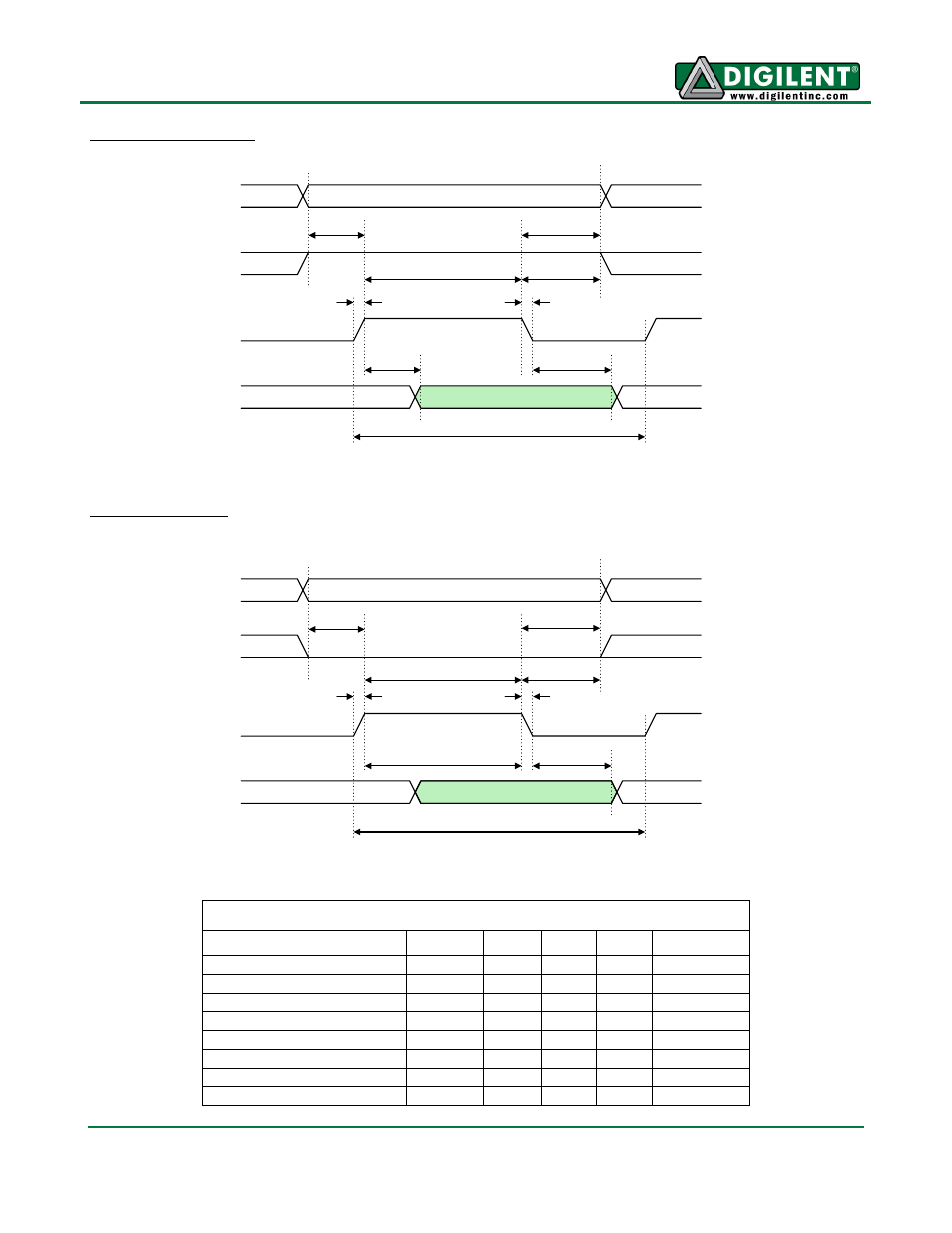

Reading Data from LCD
tsu th
th tpw
tr tf
trdsu tdh
tc
RS
E
RW
DB7-DB0 Valid Data
Writing Data to LCD
tsu th
th tpw
tr tf
twdsu tdh
tc
RS
E
RW
DB7-DB0 Valid Data
LCD Bus Timings
Parameter Symbol Min Max Unit Pin
Enable cycle time tc 1200 ns E
Enable High pulse width tw 480 ns E
Enable rise/fall time tr, tf 25 ns E
RS, R/W setup time tsu 0 ns RS, R/W
RS, R/W hold time th 10 ns RS, R/W
Read data setup trdsu 60 320 ns DB0-DB7
Data hold time tdh 300 ns DB0-DB7
Write data setup time twdsu 80 ns DB0-DB7
