76 - PoE Control
RocketLinx ES7528 User Guide: 2000509 Rev. C
Configuration Using the Web Interface

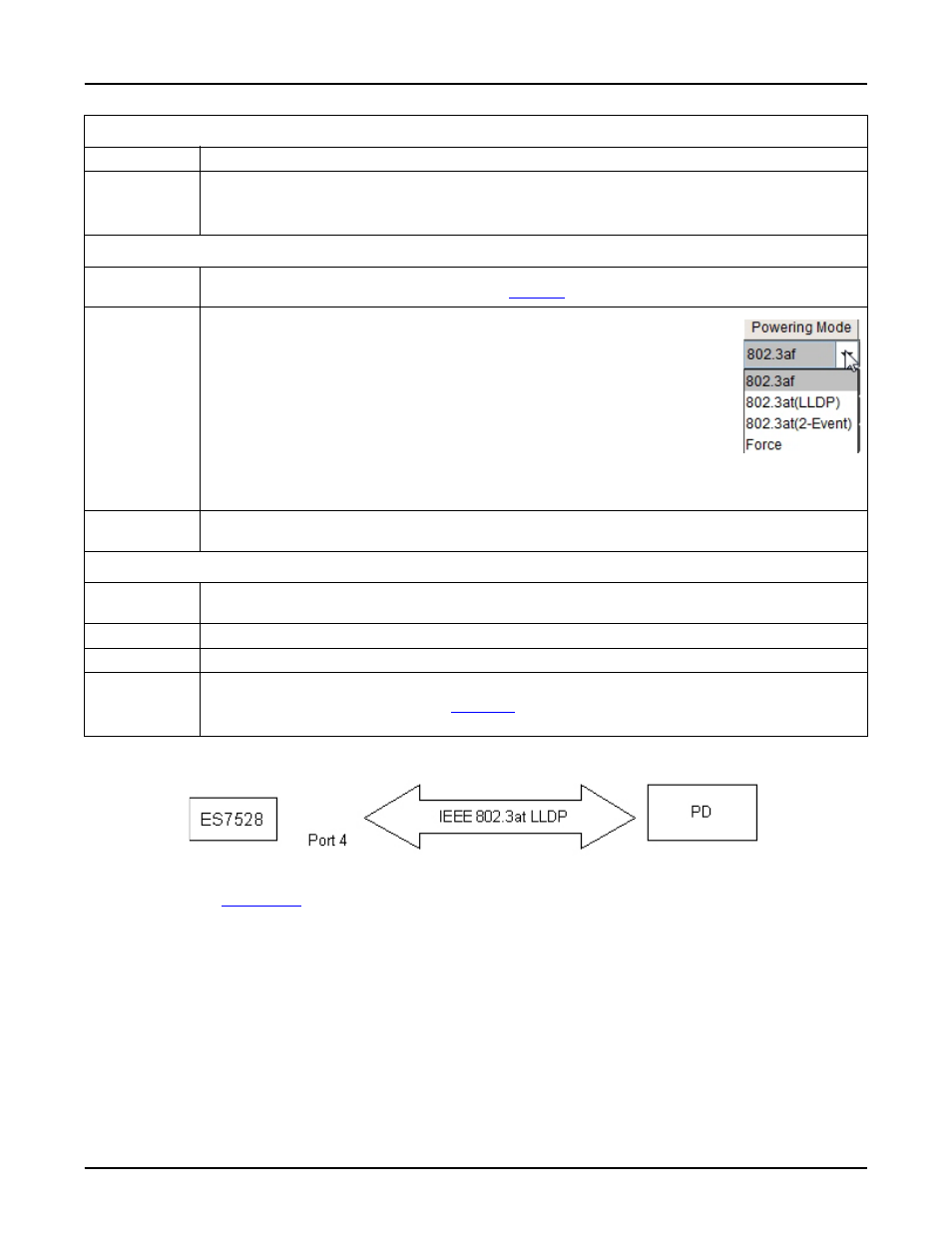

The following illustrates how to configure IEEE 802.3at LLDP. Assume the PD is ready for the configuration
for IEEE 802.3at LLDP, you only need to confirm the ES7528 configuration.
For example, connect the port of the ES7528 to the PD (Port 4), set PoE Mode is Enable and Powering Mode is
802.3at(LLDP). When the ES7528 and the PD are ready to IEEE 802.3at LLDP, IEEE 802.3at LLDP starts
operation. Refer to
on Page 78, to see the PoE Status page.
PoE Control
PoE System
You can Enable/Disable ports, or set it to scheduling control mode.
DC1/DC2
Power Budget
(W)
The output power range is 1-480W.
Port Configuration
PoE Mode
You can select Disable, Enable, or Schedule for PoE mode for each port. Select Schedule to
enable the port in the PoE Schedule page (
).
Powering
Mode
Use this mode to change the Powering Mode to one of the following:
•
802.3af If the PD follows IEEE 802.3af, then the ES7528 delivers
power.
•
802.3at(LLDP) Delivers power to a PD that supports IEEE 802.3at
LLDP.
•
802.3at(2-Event) Delivers power to a PD that supports 2-Event.
•
Force If Force is enabled, the port directly delivers the power even if
there is no Ethernet cable connected.
Note: Use caution when using Force mode. Do not connect a standard Ethernet device if
using Force mode, it will damage the device.
Power Priority
Power Priority lets the PoE port with higher priority to deploy power under the limit power
budget. There are three priorities (Critical, High and Low).
PD Status Detection
PD Status
Detection
Enable/Disable the PD Status Detection function.
IP Address
Type in the IP address that you want to detect.
Cycle Time(s)
This is the gap per detection in seconds. The range is 10-3600 seconds in multiples of 10.
Apply
Click Apply to apply the settings.
Note: You must Save the settings (
), if you want maintain these settings if the
ES7528 is powered off.
