RocketLinx ES7528 User Guide: 2000509 Rev. C
DSCP-Queue Mapping - 105
Configuration Using the Web Interface
DSCP-Queue Mapping

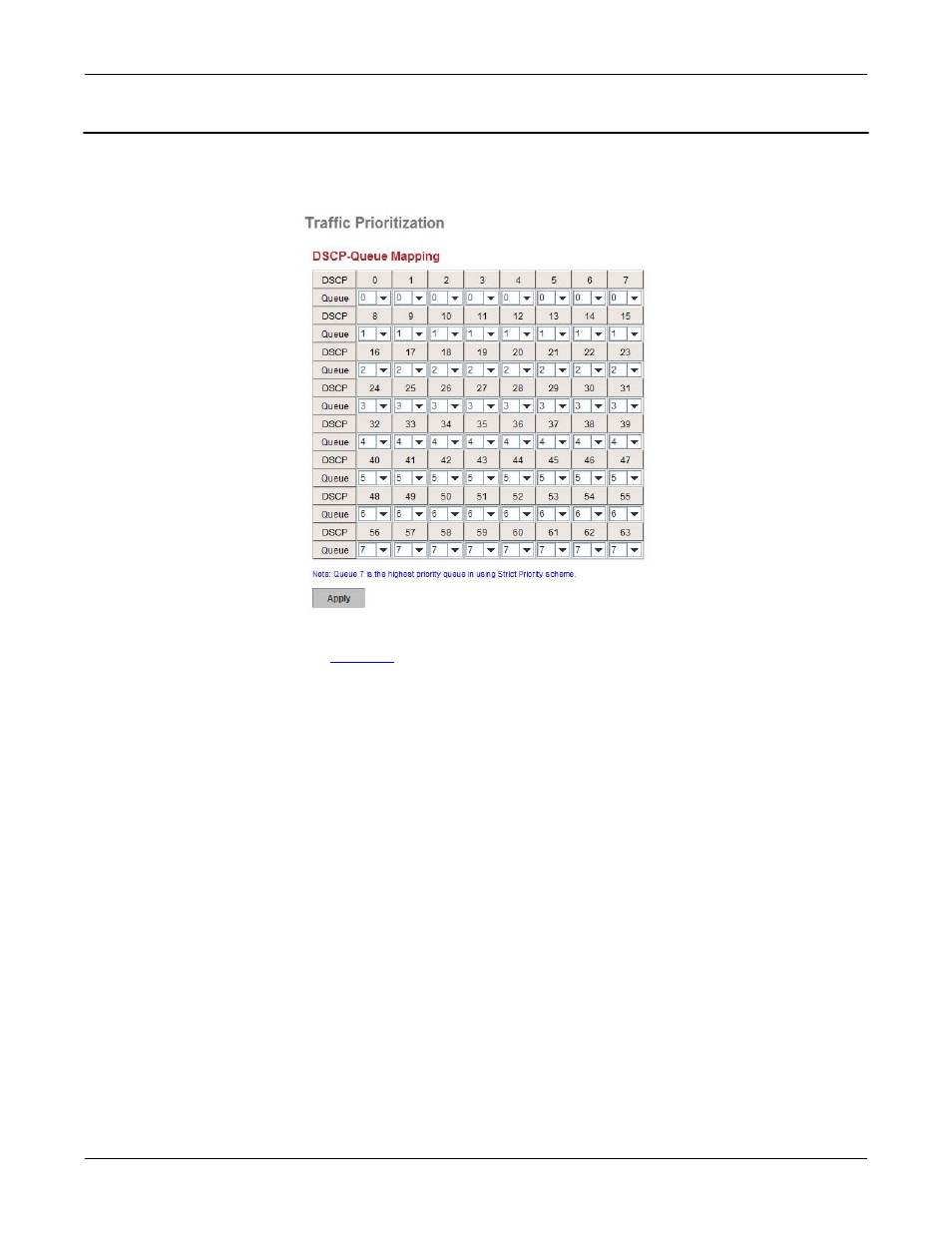

Use this page to change DSCP values to Physical Queue mapping table. Since the switch fabric of the ES7528
only supports eight queues. You can change the mapping table to follow the upper layer 3 switch or routers’
DSCP setting.
After configuration, press Apply to enable the settings.
Note: You must Save the settings (
), if you want to maintain these settings if the ES7528 is powered
off.
