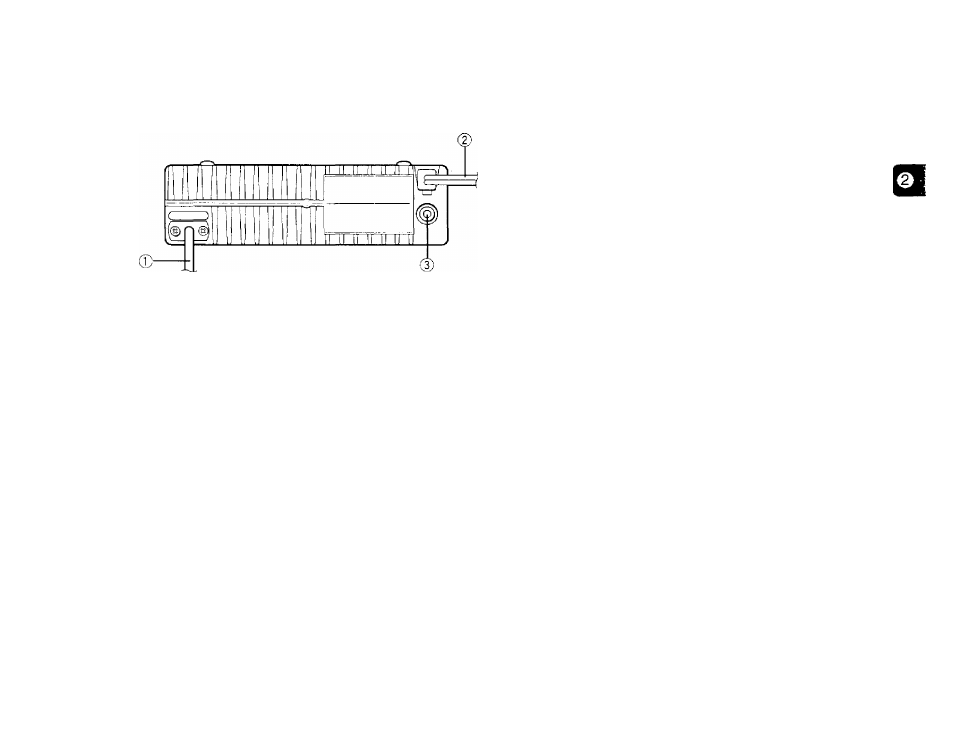

REAR PANEL
© Antenna cable
Connect an external antenna {page 5}. When making test
transmissions, connect a dummy load in place of the
antenna. The antenna system or load should have an
impedance of 50 £2. The connector accepts a male
PL-259 connector.
© Power Input 13.8 V DC cable
Connect a 13.8 V DC power source. Use the supplied DC
power cable (pages 3,4}.
© Speaker jack
If you wish, connect an optional external speaker for clearer
audio. Accepts a 3.5 mm diameter, 2-conductor plug.
