Specifications
1
Storage temperature:
-40˚–167˚F (-40˚–75˚C)
Operating temperature:
-22˚–167˚F (-30˚–75˚C)
Voltage:
24 VAC, Nominal 60Hz
18-30 VAC Maximum
Operating humidity:
5–95% RH
Panel Power:
6 VA @ 24 VAC
Current Draw Max:
100 VA @ 24 VAC
Current Draw Per Zone:
50 VA Max
2.1”
8”
8”
10.2”
Protection:
Electronic self resetting current
limiting for panel power and
damper zones
Configuration:
Conventional and Heat Pump
equipment up to 4 Heating Stages
and 2 Cooling Stages
Maximum Zones:
4 Zones Main Panel + 14 Two
Zone Expanders = 32 Total
Zones Maximum

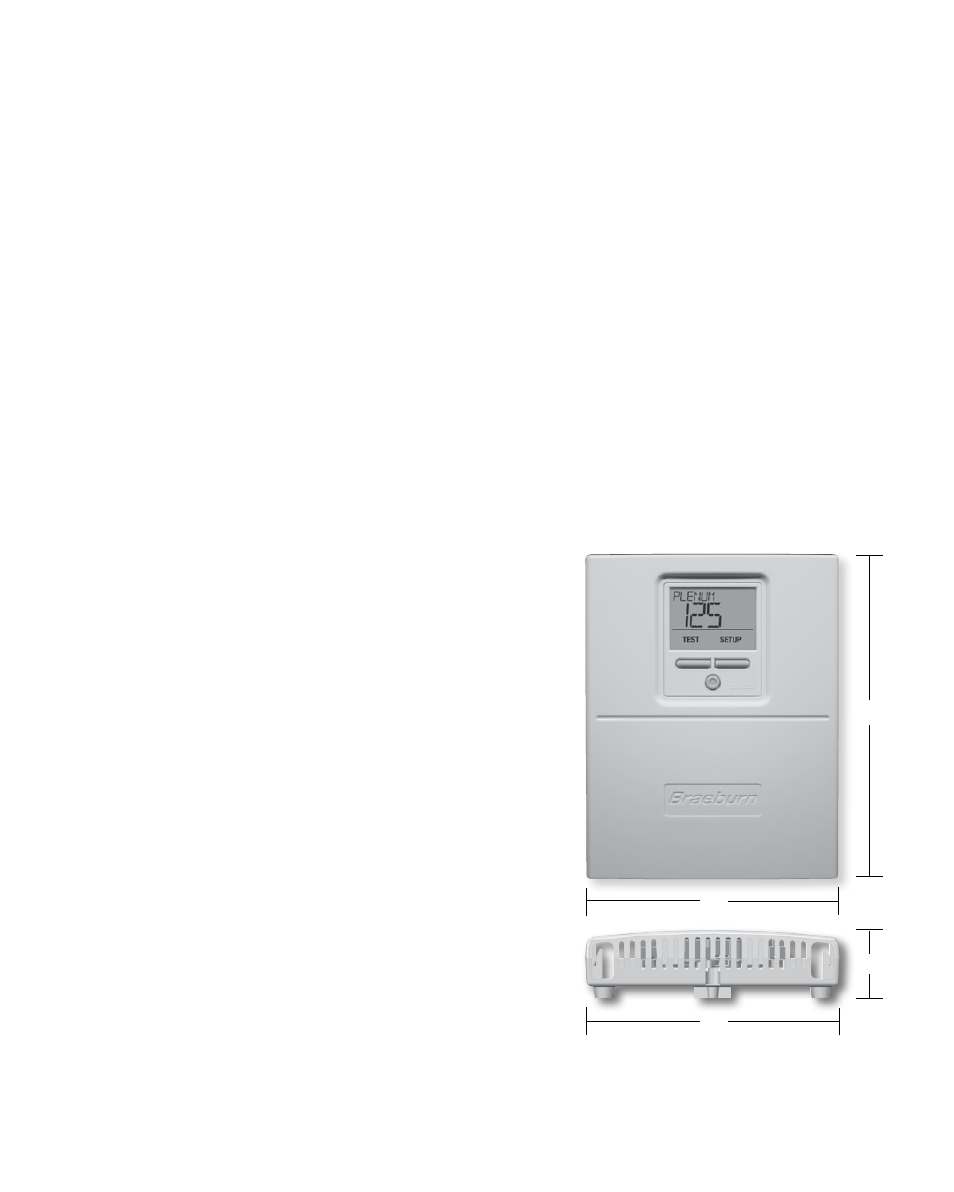

Dimensions:
See Figure 1
Figure 1
Table of Contents
1 Specifications.....................................................................................................................2
2 Suitable Mounting Locations...............................................................................................3
3 Wiring.............................................................................................................................4-9
4 Configuration....................................................................................................................10
5 System Check-Out............................................................................................................13
6 Operation
...............................................................................................................................14
7 Error Conditions.................................................................................................................17
8 Adding More Zones...........................................................................................................19
9 Warranty..........................................................................................................................22
