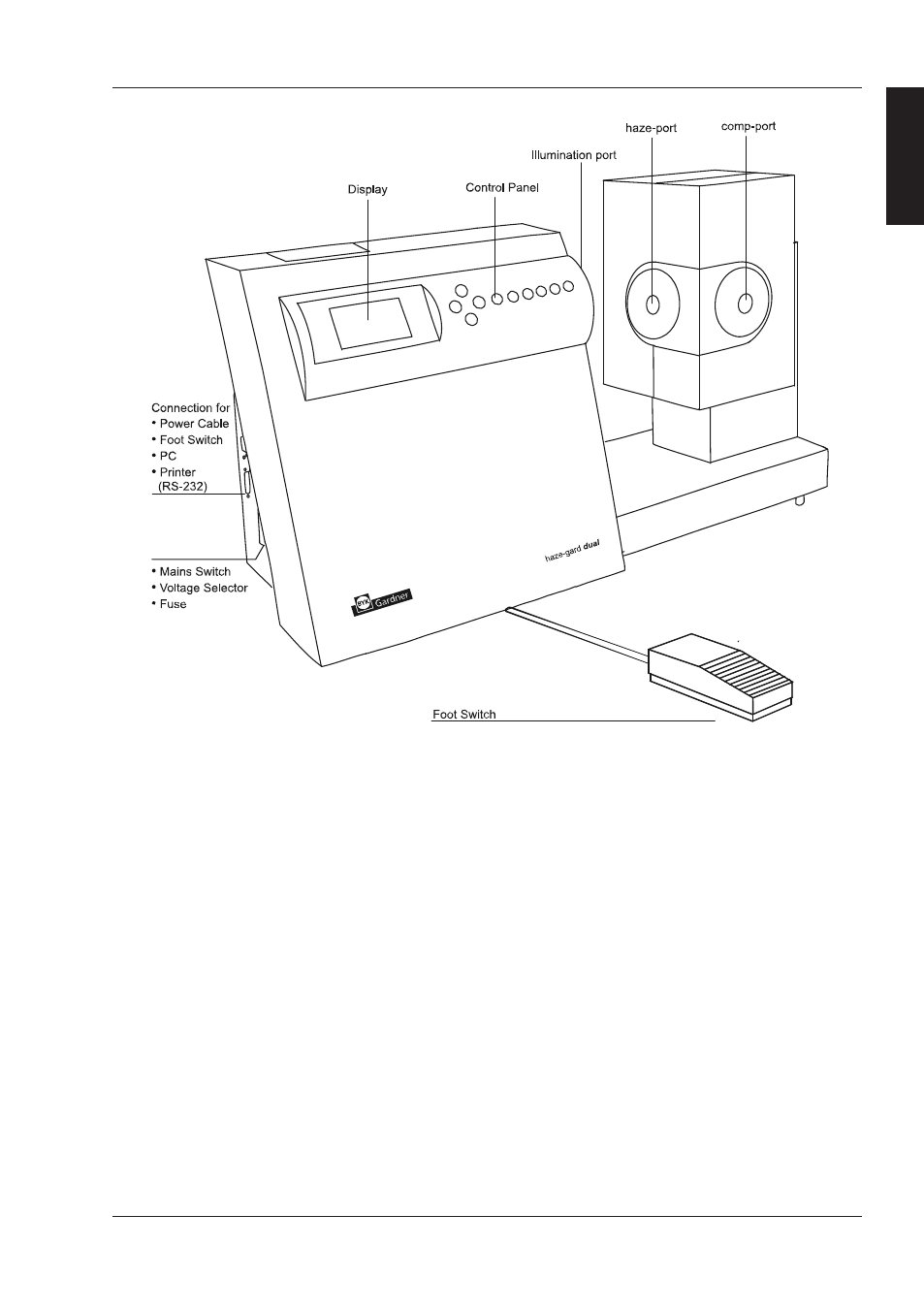

4.1 Device
The display is used to output
measurement values and display
messages from the SET-UP dialog.
The button field is used for
selecting and inputting functions.
The haze port illuminates the
specimen to be measured.
The specimens to be measured are
placed at the haze port.
The comp port is used for compen-
sation measurement for the ISO
method.
The side connections are used to
connect the device to the mains
electricity supply, foot switch, PC,
and printer.
The power switch is used to switch
on the device. It also functions as a
voltage selector and fuse switch.
If you need both hands to hold the
specimen, it is possible to start
measurement by pressing the foot
switch.
