KEYENCE BL-N90 Series User Manual
Page 73
4-7 Settings for Limit Read Digits
4-19
4
Pr
o
g
ra
m
Example 2: Read only 8 to 10 digits for Codabar (NW-7).
Block 1 settings
1. Read the "Block 1 — digit settings" barcode.
2. Read the decimal program codes "0," "0," and "8."
3. Read the "Block 1 — code type settings" barcode.
4. Read the decimal program codes "0," "8," and "1."
Block 2 settings
5. Read the "Block 2 — digit settings" barcode.
6. Read the decimal program codes "0," "0," and "9."
7. Read the "Block 2 — code type settings" barcode.
8. Read the decimal program codes "0," "8," and "1."
Block 3 settings
9. Read the "Block 2 — digit settings" barcode.
10. Read the decimal program codes "0," "1," and "0."
11. Read the "Block 2 — code type settings" barcode.
12. Read the decimal program codes "0," "8," and "1."

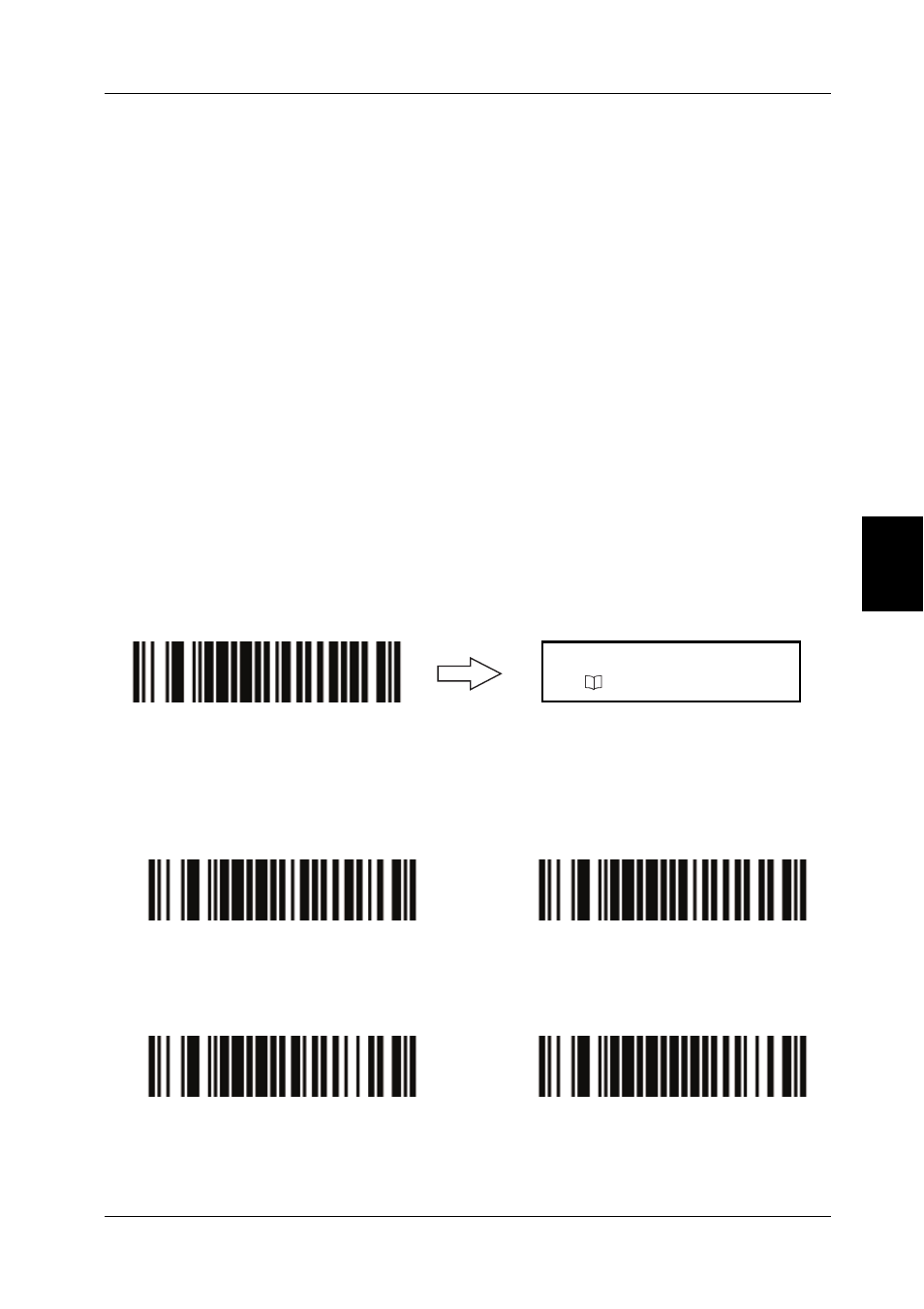

z
Limit all settings
Start limit all settings
z
Limit individual settings
Block 1 settings
Block 1 — digit settings
Block 1 — code type settings
Block 2 settings
Block 2 — digit settings
Block 2 — code type settings
Read the decimal program codes
(
page 4-26) three times
