Connecting the Controller and the Computer
This section describes how to connect the controller and the computer by using RS-232C.
Note
This operation varies depending on the location and direction of the RS-232C port on the computer. Refer to the manual
that comes with the computer when connecting the RS-232C cord.
Connect the controller (LS-7600/7500/7000) and the computer by using RS-232C.
Use the cord OP-35382 (D-sub 9-pin) or OP-25253 (D-sub 25-pin) for connection.

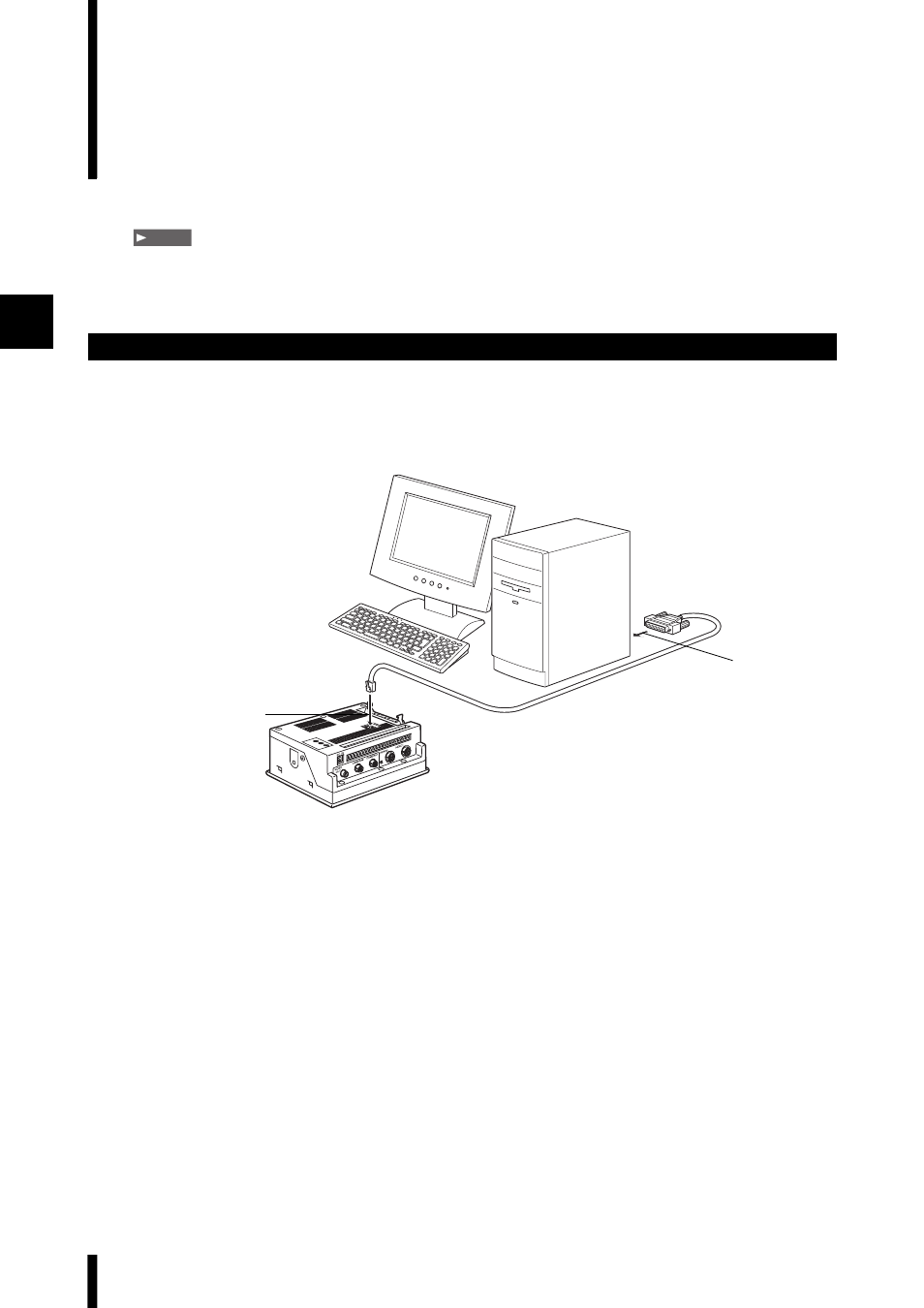

Connection diagram
1
Connect to the RS-232C connector for the
controller by using the cord OP-35382 (D-
sub 9-pin) or OP-25253 (D-sub 25-pin).
2
Connect to the RS-232C port for the
computer by using the cord OP-35382 (D-
sub 9-pin) or OP-25253 (D-sub 25-pin).
This procedure describes and example when
using OP-25253 (D-sub 25-pin).
Connecting
Computer
RS-232C cord
OP-35382 (D-sub 9-pin)
or
OP-25253(D-sub 25-pin)
Controller
• LS-7600 series
• LS-7500 series
• LS-7000 series
1
2
