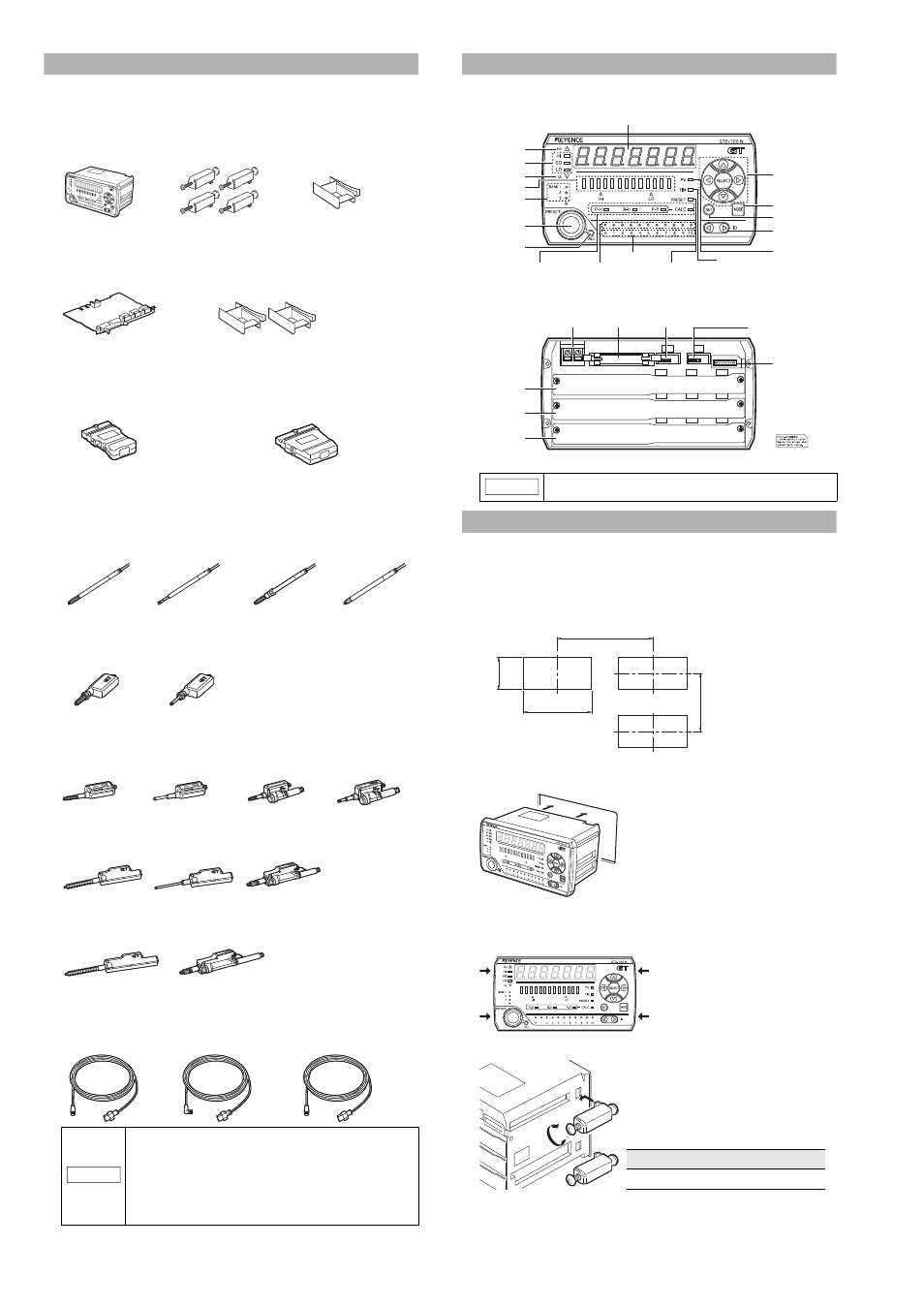

Package Contents
The product package of each model should include the following items.
Check that all items are included before use.
■ Amplifier parts
● Amplifier
● Head expansion board
● I/O connector
■ Sensor head parts
● Sensor head
● Sensor head connection cable
All possible care was taken in packaging; however, if any parts are found to
be defective or broken, please contact your nearest KEYENCE sales office.
Identifying Part Names and Functions
■ Front (display/operation section)
■ Rear (connection section)
Mounting the Amplifier and Wiring
■ Mounting the amplifier
● Mounting on a panel
1
Create a panel opening for mounting referring to the dimensions below.
2
Insert the main unit from the front side of the panel into the
opening for mounting.
3
Secure the main unit on the panel using the included mounting bracket.
Attach the mounting brackets on the sides of the unit (2 points on each
side).
4
Tighten the screw of the mounting bracket.
NOTICE
• The M8 L-shaped connector type cable cannot be
used with the GT2-H32(L)/H50/A32/A50.
• When a protection rating of IP67G and NEMA Type 13
enclosure is required for GT2-P12K(F)/P12(F), or a
protection rating of IP67G is required for GT2-PA12K/
GT2-PA12 use an M8 oil-resistant straight connector
type cable. Other cables do not meet the IP67G
protection rating or NEMA Type 13 enclosure rating.
GT2-100N/100P
Amplifier x 1
Instruction manual x 1
Mounting bracket x 4
Dummy connector x 1
(Mounted on the amplifier)
GT2-E3N/E3P
Head expansion board x 1 Dummy connector x 2
(Mounted on the board)
OP-22185
(MIL socket connector 20-pin)
Hood cover, Housing x 1
Contact x 25
OP-84456
(MIL socket connector 30-pin)
Hood cover, Housing x 1
Contact x 35
GT2-H12K/H12 GT2-H12KL/H12L
Sensor head x 1 Sensor head x 1
Precautions for Handling x 1 Precautions for Handling x 1
GT2-A12KL/A12L
Sensor head x 1
Precautions for handling x 1
GT2-H32 GT2-H32L
Sensor head x 1 Sensor head x 1
Precautions for Handling x 1 Precautions for Handling x 1
GT2-A12K/A12
Sensor head x 1
Precautions for handling x 1
Sensor head x 1 Sensor head x 1
Precautions for handling x 1 Precautions for handling x 1
Sensor head x 1
Precautions for handling x 1 Sensor head x 1
Precautions for handling x 1
Nut x 1
Key spanner x 1
Sensor head x 1
Precautions for handling x 1
Nut x 1
Key spanner x 1 Sensor head x 1
Precautions for handling x 1
Nut x 1
Key spanner x 1
GT2-A32
Sensor head x 1
Precautions for Handling x 1
GT2-H50
Sensor head x 1
Precautions for Handling x 1
GT2-A50
Sensor head x 1
Precautions for Handling x 1
GT2-P12K/P12 GT2-P12KL/P12L GT2-PA12K/PA12
GT2-H12KF/H12F GT2-H12KLF/H12LF
GT2-P12KF/P12F
GT2-CH2M/5M/10M/20M
(M8 straight connector) GT2-CHL2M/5M/10M/20M
(M8 L-shaped connector) GT2-CHP2M/5M/10M
(M8 oil-resistant straight connector)
NOTICE
Do not connect devices other than the DL Series
communication unit to the DL connector.
Special output indicator
Detection level indicator
Special output indicator
Bar LEDs
Bank indicator
[PRESET] button
Status indicator OK/NG indicator
for each Head No.
Head ID
indicator
Preset
indicator
Timing input
indicator
Arrow buttons
[MODE] button
[SET] button
[Head select]
button
PV indicator
Digital LED display
Batch setting indicator
Head expansion board
connection slot 1*
2
Head expansion board
connection slot 2*
2
Head expansion board
connection slot 3*
2
Power supply
terminal block I/O cable
connector Sensor head connector
(main unit: ID 0)
Sensor head connector
(expansion unit: ID 1)
DL connector
(for panel
mounting type)*
1
* Sticker is attached.
*1Covered with a
sticker at the time
of shipment.
*2A cover is attached when shipped from the factory.
(unit: mm)
76
Panel cut dimension
Panel thickness of mounting area
1 to 6 mm
163 min.
81 min.
139.5
Tightening torque
0.5 to 0.8 N•m (5.1 to 8.1 kgf•cm)
