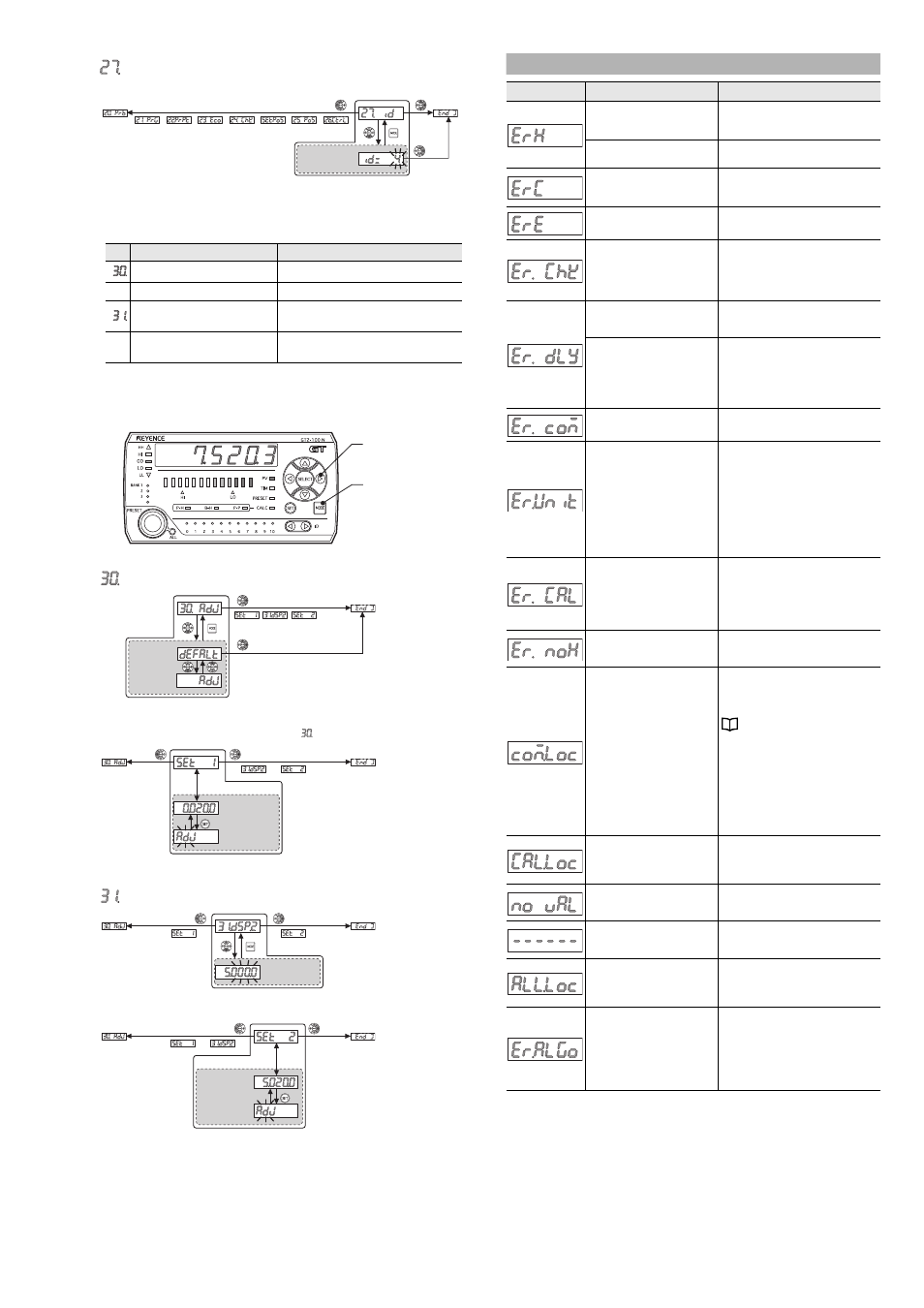

■ Calibration setting mode
You can set the following functions in the calibration setting mode.
● How to enter the calibration setting mode
Enter the calibration setting mode by the following procedure.
• In the main display, press the [MODE] button and the right Arrow
button at the same time for at least two seconds.
Error message
*1 If not recovered by this action, there may be a possibility of a failure
or permanent damage. In this case, change the amplifier unit.
*2 Bank switching, reset input, and preset input are available even
during "com.Loc".
No. Item Description
Calibration function setting Set the calibration function.
- 1st point detection/capture Set the zero point (1st point).
2nd point target value
Set the target value of the span
adjustment (2nd point).
- 2nd point detection/capture
Set the detection position for the
span adjustment.
Setting value
input screen
This can be set only on the main unit (ID00).
Valid ID Setting
* The valid ID setting changes in accordance with the number
of the installed head expansion boards.
*
Right Arrow button
[MODE] button
Main screen
Default
Adjustment
Calibration function setting
Detect 1st point
Blink alternately
Capture the
detection value
1st point detection/capture
Only available when "AdJ" is selected in [ Calibration function setting].
*Target value for the first point is the preset value.
Setting value
input screen
2nd point target value setting
Detect 2nd point
Blink alternately
Capture the
detection value
2nd point detection/capture
Error display Cause Corrective action
The sensor head cable is
disconnected.
• Connect the sensor head to
the amplifier.
• Set the valid ID setting correctly.
• The sensor head cable is broken.
• The sensor head is damaged. Change the sensor cable or
sensor head.
An overcurrent is present
in the output line.
• Check that the load is within the rating.
• Check that the output line is not
contacting other lines and frames.
Failed to write/read data.
Cycle power to the equipment
and initialize.
*1
Spindle movement is not
detected.
• If something is caught in the
spindle, causing the spindle not to
move, change the sensor head.
• Check the external timing input.
(Press the SET button to reset.)
The value fell below (rose
above) the timing level
during the delay time. Change the delay timer time
setting. (Press the SET button
to reset.)
When setting the internal
timing, detection was
completed when the value fell
below (rose above) the timing
level before the criterion value
(P.V. value) is fixed. The value should not fall below (rise
above) the timing level before the
criterion value is fixed. Alternatively,
lengthen the static hold delay
stabilizing amplitude so that the
criterion value can be easily fixed.
Contact between the
amplifiers is lost. After turning OFF the power, check the
connection between the amplifiers.
• In the case of using the
calculation function, the number
of the expansion unit when the
power is turned ON differs from
the number of the expansion
unit in the memory of the main
unit when the calculation is set.
• When using the calculation
function, a model other than the
GT2 Series is added.
• Reset the calculation mode or
perform the initial reset of the
main unit.
• After turning OFF the power,
check the connections
between the amplifiers.
• When using the reference difference
(rEF) calculation function, an error
occurred in the main unit.
• When using other than the reference
difference (rEF) calculation function, an
error occurred in an expansion unit.
Check each main/expansion
unit for the cause of the error.
The sensor head is connected
to the main unit in which the
calculation only mode is set. Remove the sensor head from the
main unit or set the mode other
than the calculation only mode.
"com.Loc" is displayed
and cannot change the
setting.
The read/write setting switch of
the connected communication
unit DL-RS1A is set to RW.
*2 Set
the read/write setting switch to R.
Refer to "RS-232 Communication
Unit DL-RS1A User's Manual"
Displayed when this equipment is
accessed (operation command/
settings and status writing/keylock) via
, or .
The buttons are locked, but after
approximately 10 seconds, "com.unLoc"
is displayed on the amplifier and the
buttons are unlocked.
*2
The calculation mode is
used, so the function
setting mode cannot be
changed. Check the calculation mode settings
again.The function setting mode can be
changed only when the calculation mode of
the main unit is set to “C0.oFF” or “C5.rEF”.
The criterion value (P.V.
value) becomes "------"
during the tolerance tuning. Perform the timing input and fix
the criterion value, and then
perform the tolerance tuning.
The hold detection is selected or the
timing input is not performed, so the
criterion value (P.V. value) is not fixed.
Perform the timing input.
The operations of the expansion unit
are locked while the simultaneous
input is selected and the keylock is
activated on the main unit.
Deactivate the keylock on the
main unit.
After ALL GO is selected in the
special output setting, the number of
expansion units changed.
• If the number of expansion units has
been changed, set the special output
setting again.
• If the number of expansion units has
not been changed, check if each
expansion unit operates correctly,
then turn on the power again.
