12 GT2-100-M-E

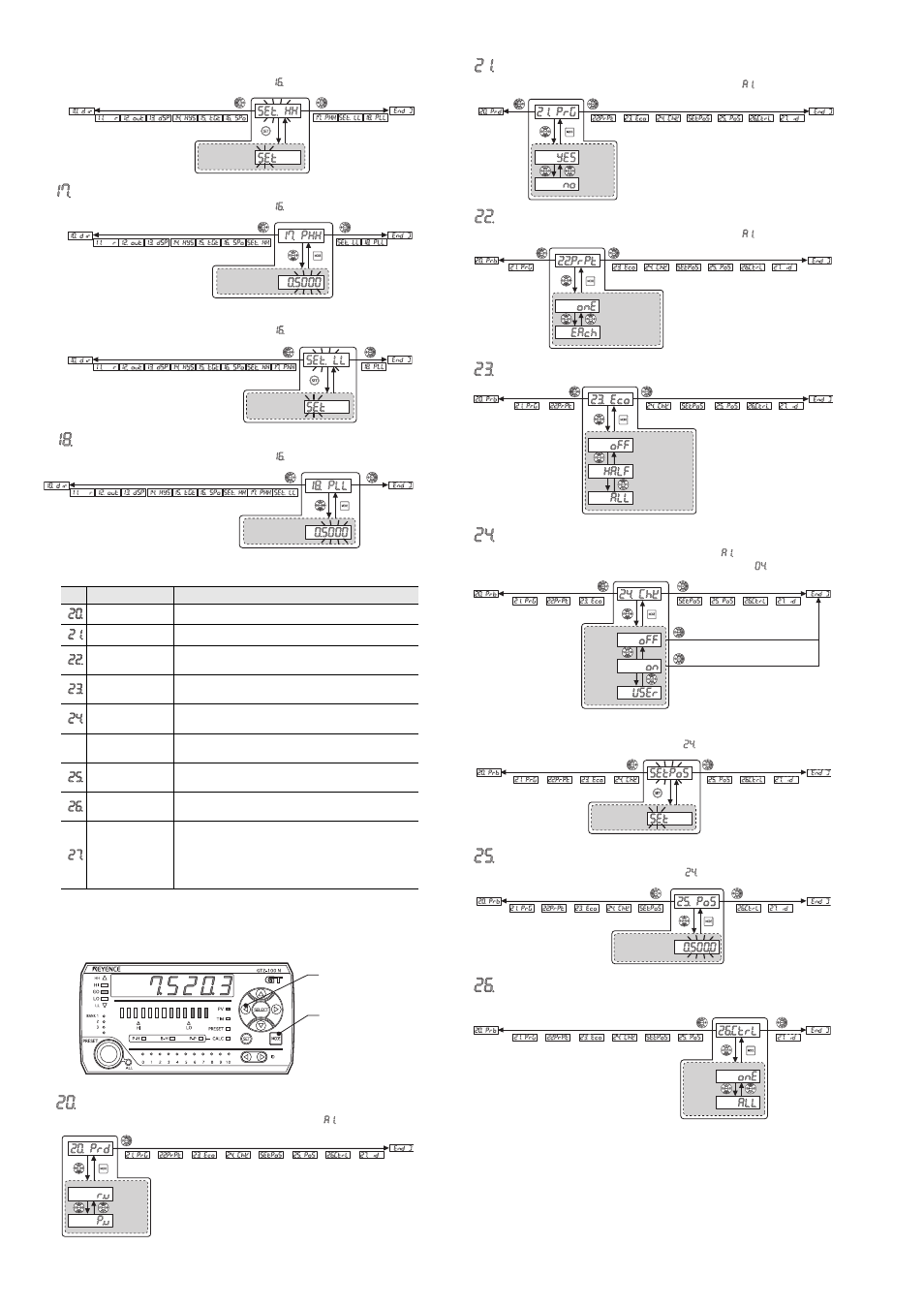

■ Additional function setting mode
You can set the following functions in the additional function setting mode.
* Can be set only on ID00.
● How to enter the added function setting mode
Enter the added function setting mode by the following procedure.
• In the main display, press the [MODE] button and the left Arrow
button at the same time for at least two seconds.
No. Item Description
Select preset data Select the data to use when performing the preset.
Store preset value Set whether or not to save "zero-point correction".
Preset point
Set the memory method for "zero-point
correction" when using the bank function.
Power-saving
function (ECO) To decrease the power consumption or not to
display the numerical value, set this function.
Jam detection
function
When the spindle does not fully extend.
-
Jam detection
teaching Set the reference position for the jam
detection.
Jam detection
check point setting Set the position to perform the jam detection
function with the reference position being 0.
Batch setting*
Set whether or not to apply the preset
performed on ID00 to all IDs.
Valid ID
Setting*
You can set the number of sensor heads
(expansion units) that can be connected to the
amplifier. The number of connectable sensor heads
changes in accordance with the number of the
installed expansion boards (one to three boards).
Reference
position set
Limit output HH side teaching
Only available when "Lt.USEr" is selected in [ Special output setting].
Setting value
input screen
Limit output HH side criterion position setting
Only available when "Lt.USEr" is selected in [ Special output setting].
Reference
position set
Limit output LL side teaching
Only available when "Lt.USEr" is selected in [ Special output setting].
Setting value
input screen
Limit output LL side criterion position setting
Only available when "Lt.USEr" is selected in [ Special output setting].
Left Arrow button
[MODE] button
Main screen
R.V. value
Select preset data
P.V. value
Not available to set on the main unit for which "CAL.noH" is selected in [ Calculation mode].
YES
Store preset value
NO
Not available to set on the main unit for which "CAL.noH" is selected in [ Calculation mode].
Common for
all banks
Preset point setting
Save for
each bank
Not available to set on the main unit for which "CAL.noH" is selected in [ Calculation mode].
OFF
Power-saving function
ECO Half
ECO All
Jam detection function
OFF
ON
User
Not available to set on the main unit that selects "CAL.noH" in [ Calculation mode], and
the main unit and expansion unit that selects values other than "t-in" in [ Timing type].
Jam detection teaching
Available to set when "USEr" is selected in [ Jam detection function].
Reference
position fixed
Setting value
input screen
Available to set when "USEr" is selected in [ Jam detection function].
Jam detection point setting
This can be set only on the main unit (ID00).
Batch setting
Separate
Batch
