Required Parts
•.Stabilizer.(2). •.Elevator.(2)
•.Wing.(left.and.right). •.Rudder
•.Aileron.(left.and.right). •.Fuselage
•.CA.hinge.(19)
Required Tools and Adhesives
•.Rotary.tool. •.T-pins
•.Thin.CA
•.Drill.bit:.1/16-inch.(1.5mm)

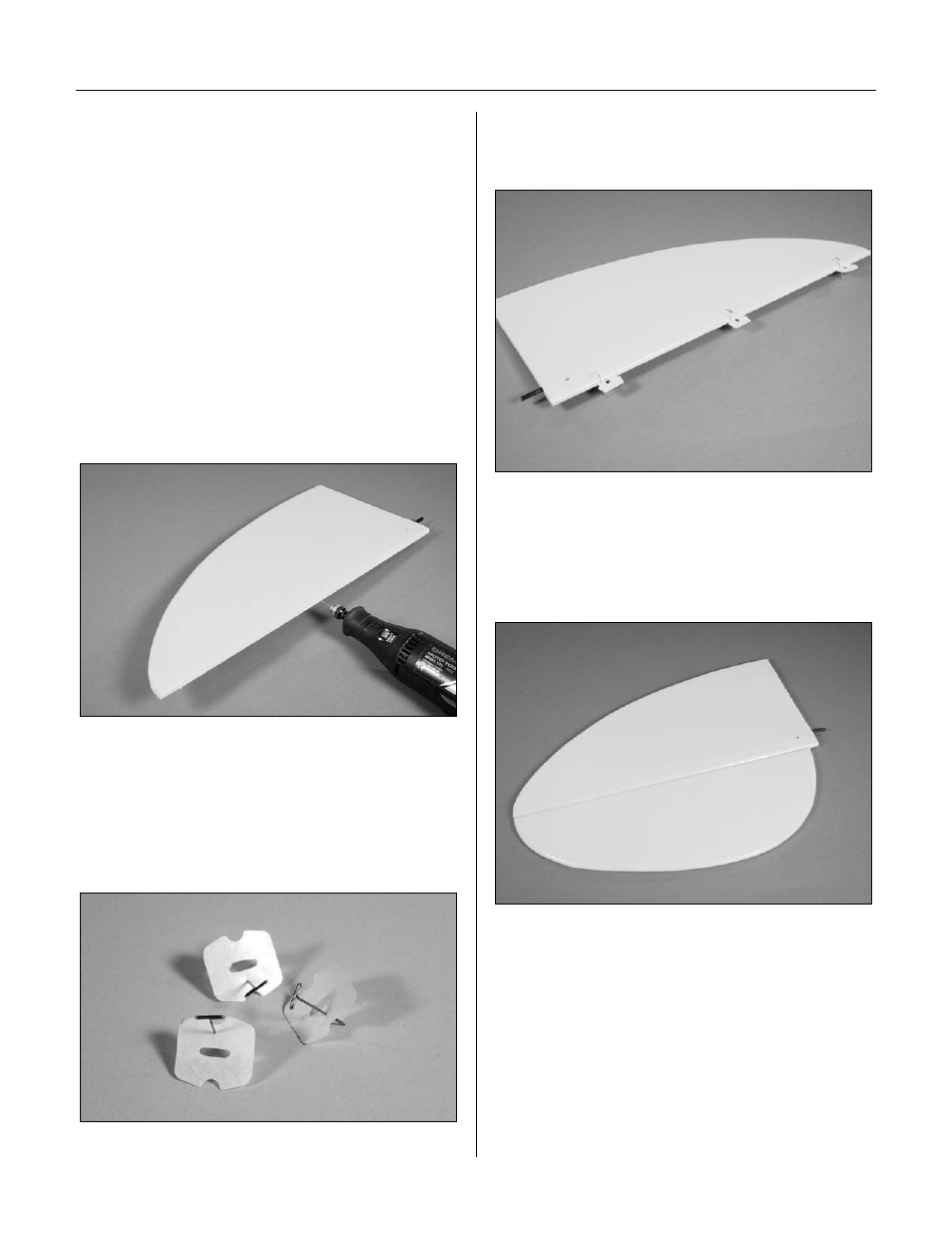

 .  .  .Step 1
Use.a.rotary.tool.and.1/16-inch.(1.5mm).drill.bit.to.drill.a.
hole.in.the.center.of.each.of.the.three.hinge.slots.in.both.
of.the.stabilizers.
Note:.While.your.rotary.tool.is.out,.
drill.the.holes.in.the.elevators,.ailerons,.
wing,.rudder.and.fin.as.well.
 .  .  .Step 2
Place.a.T-pin.in.the.center.of.three.CA.hinges.
 .  .  .Step 3
Position.the.hinge.in.the.stabilizer..The.slot.in.the.hinge.
will.align.with.the.hole.drilled.in.the.stabilizer.
 .  .  .Step 4
Slide.the.hinges.in.the.elevator..Position.the.stabilizer.
and.elevator.so.there.is.as.little.gap.between.the.two.as.
possible.without.restricting.movement..Align.the.tips.of.
the.stabilizer.and.elevator.
