Hangar 9 1/4-Scale J-3 Cub ARF - Manual (Page 26)

26
Required Parts
•.Fuselage.assembly. •.Firewall.template
•.Engine.mount.(2). •.#8.washer.(12)
•.8-32.locknut.(4). •.Throttle.pushrod
•.Throttle.pushrod.tube. •.Metal.clevis.(2)
•.Battery.cover. •.#4.washer.(4)
•.8-32.blind.nut.(4)
•.Cowl.screw.fuel.tubing.(4)
•.4-40.x.1/2-inch.socket.head.screw.(4)
•.#2.x.1/2-inch.sheet.metal.screw.(2)
•.Threaded.rod,.1-inch.(25mm).(2)
•.8-32.x.1
.
1 /
4
-inch.socket.head.screw.(4)
•.8-32.x.1
.
1 /
2
-inch.socket.head.screw.(4)
Required Tools and Adhesives
•.Drill. •.Threadlock
•.Clamp. •.Medium.CA
•.Phillips.screwdriver
•.Hex.wrench:.3/32-inch,.9/64-inch
•..Drill.bit:.1/16-inch.(1.5mm),.5/32-inch.(4mm),.
3/16-inch.(4.5mm)

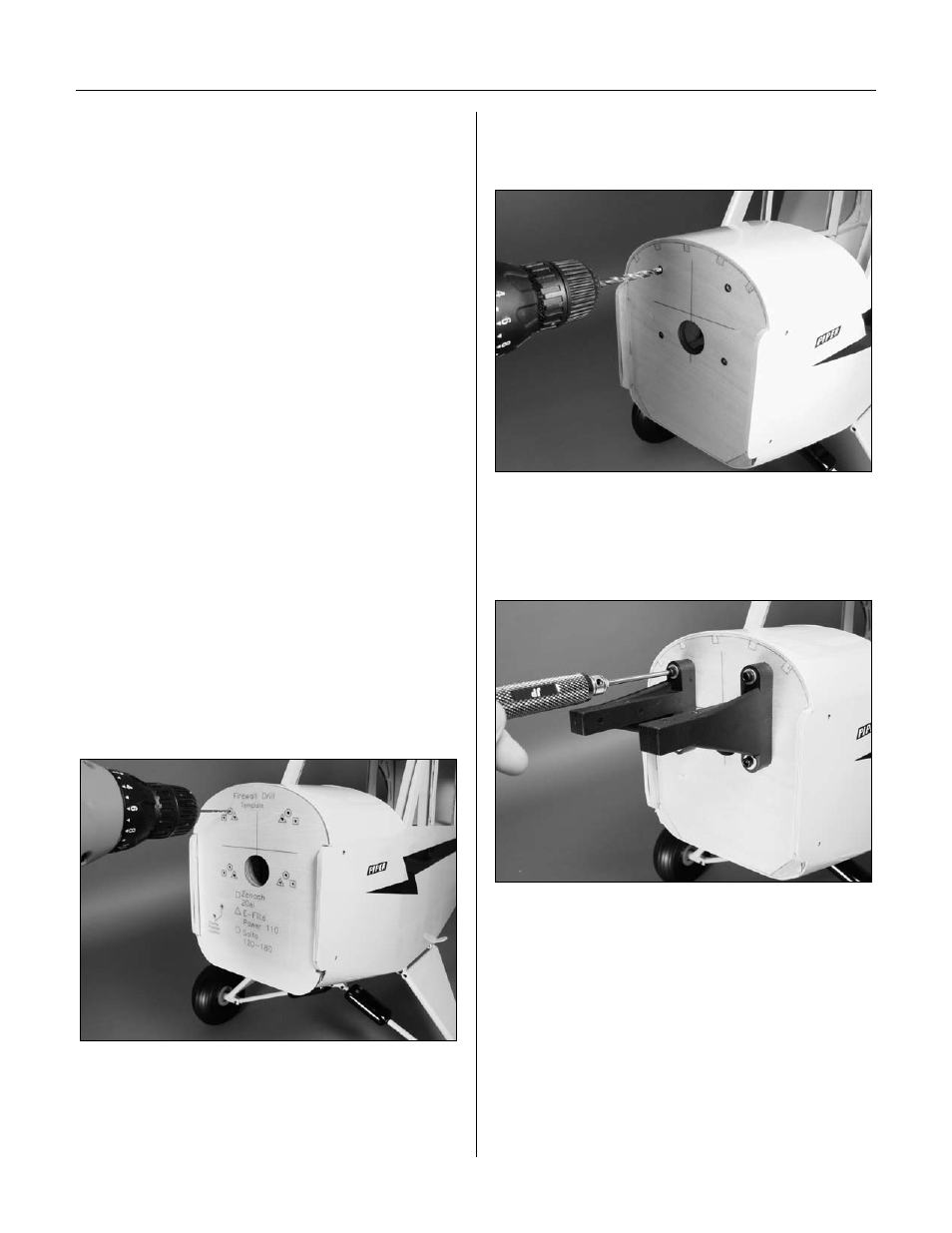

 .Step 1
Place.the.firewall.template.in.position.on.the.firewall..Drill.
the.locations.for.your.particular.engine.using.a.1/16-inch.
(1.5mm).drill.bit..Drill.the.location.for.the.throttle.pushrod.
at.this.time.as.well.
 .Step 2
Remove.the.template.and.enlarge.the.holes.using.a..
3/16-inch.(4.5mm).drill.bit.
 .Step 3
Secure.the.engine.mounts.to.the.firewall.using.four..
8-32.blind.nuts.from.the.inside.of.the.fuselage,.and.four.
8-32.x.1
.
1 /
4
-inch.socket.head.screws.and.four.#8.washers.
Engine Installation (Glow)
