Hangar 9 1/4-Scale J-3 Cub ARF User Manual

Page 17



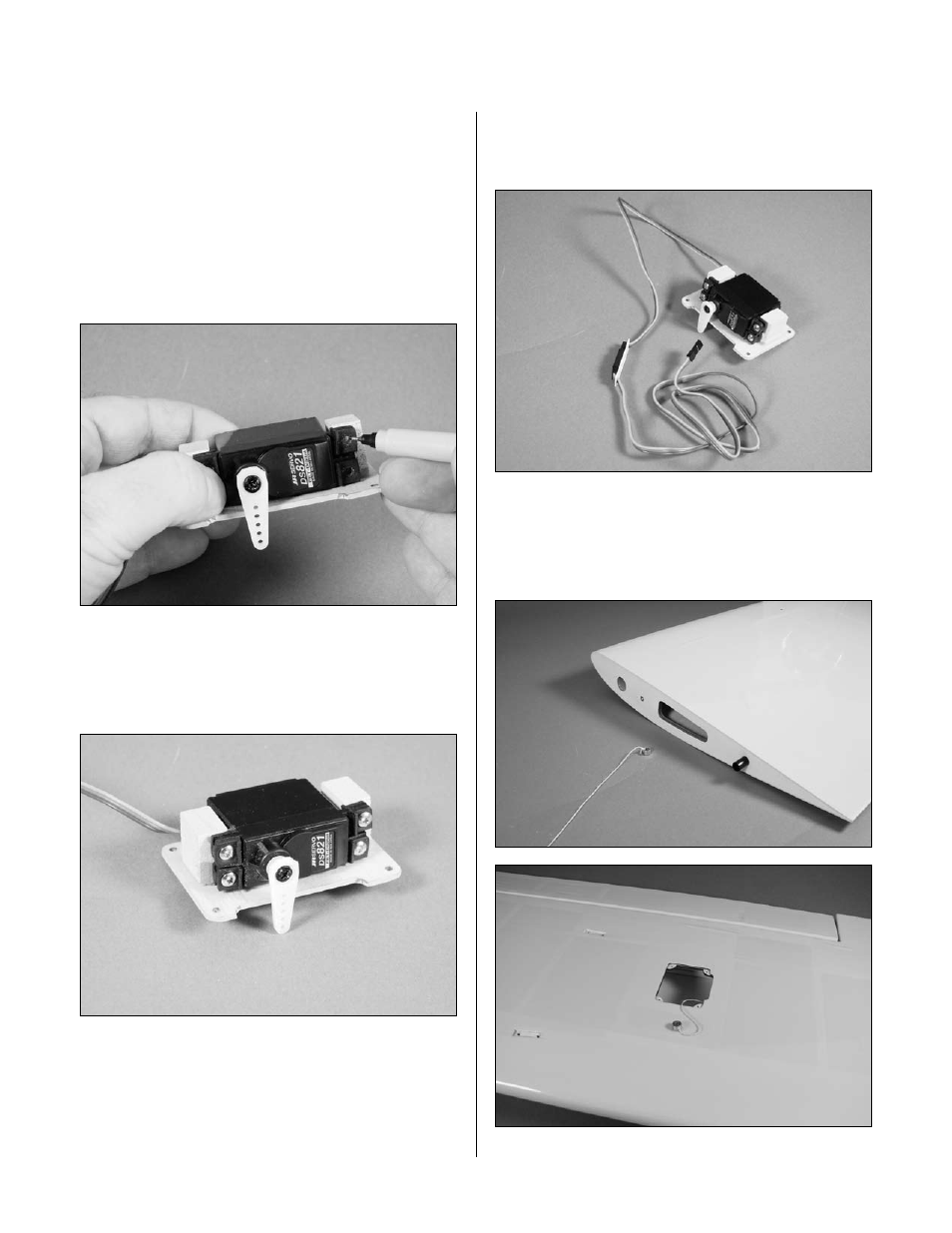

.Step 4

Repeat.steps.1.through.3.to.prepare.the.remaining.cover.

while.the.epoxy.cures.



.Step 5

Position.the.servo.between.the.block.and.with.a.small.

space.between.the.servo.and.cover..Use.a.felt-tipped.pen.

to.mark.the.locations.for.the.servo.mounting.screws.onto.

the.blocks.



.Step 6

Drill.the.marked.locations.using.a.drill.and.1/16-inch.

(1.5mm).drill.bit..Use.the.hardware.provided.with.the.

servo.to.secure.it.to.the.blocks.



.Step 7

Use.string.or.a.commercially.available.connector.to.secure.

a.18-inch.(457mm).servo.extension.to.the.servo.lead.



.Step 8

Tie.a.weight.to.a.24-inch.(610mm).piece.of.string..Lower.

the.weight.into.the.wing.and.pull.it.out.at.the.opening.for.

the.servo.cover.

Aileron Servo Installation
