Hangar 9 1/4-Scale J-3 Cub ARF User Manual

Page 29



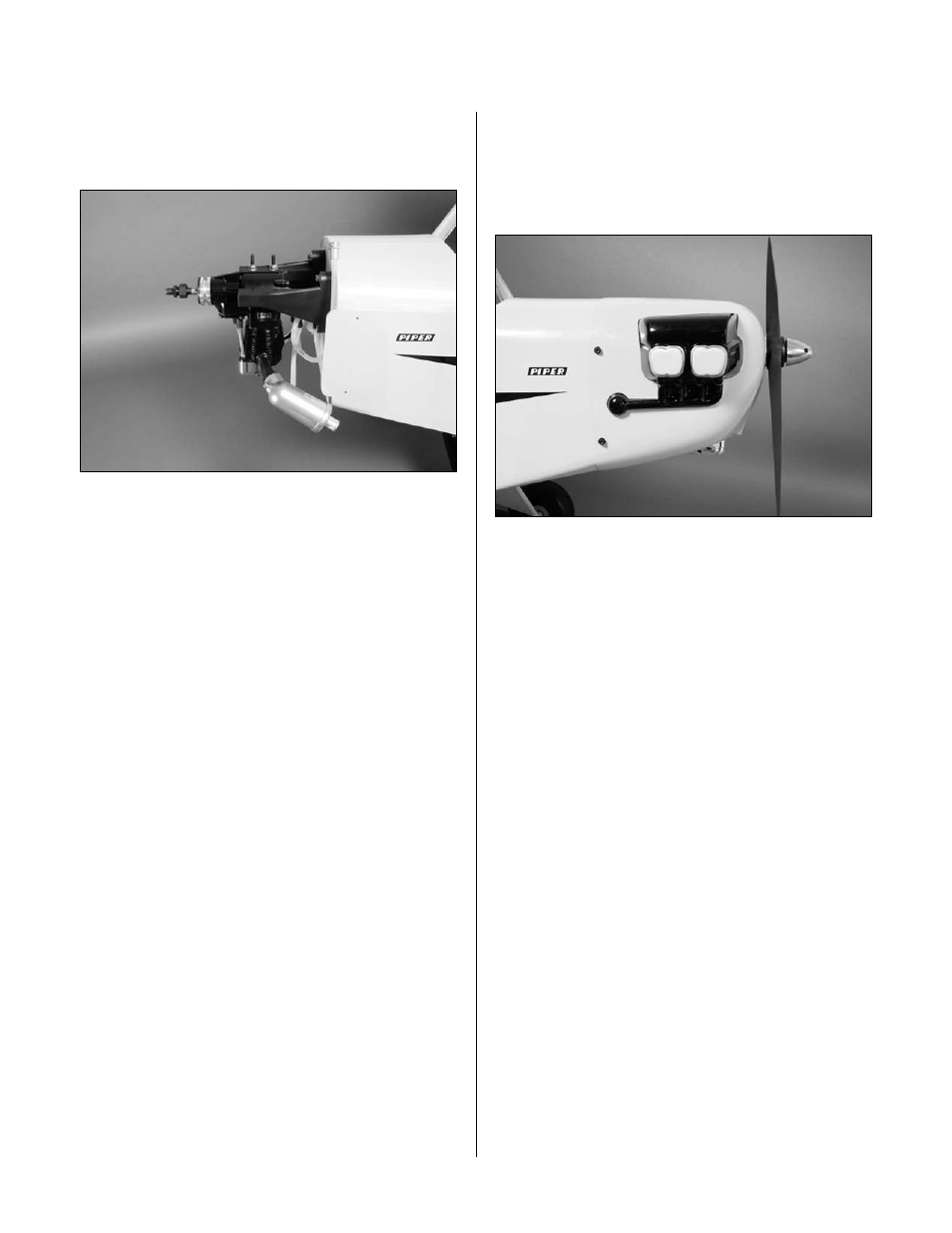

.Step 13

Install.the.muffler.and.connect.the.fuel.lines.from.the.tank.

to.the.engine.

Note:.We.used.a.fuel.dot.and.T-fitting.

on.our.model.so.the.cowl.won't.have.

to.be.removed.to.fuel.the.engine.

Note:.You.will.need.to.use.a.Muffler.

Right.Angle.Adapter.(SAI120S140).

when.installing.the.Saito.engines.



.Step 14

Attach.the.cowling.using.four.4-40.x.1/2-inch..

socket.head.screws,.four.pieces.of.cowl.screw.tubing..

and.four.#4.washers..Install.the.propeller.to.complete..

the.engine.installation.

Engine Installation (Glow)
