13
Required Parts
•.Fuselage.assembly. •.Stabilizer/elevator.(2)
•.6
.
3 /
8
-inch.(162mm).joiner. •.#6.washer.(4)
•.Tail.wheel.assembly. •.2-56.nut.(4)
•.4-40.locknut.(3)
•.Large.strut.support.bracket.(2)
•.Small.strut.support.bracket.(2)
•.#6.x.5/8-inch.sheet.metal.screws.(2)
•.4-40.x.5/8-inch.socket.head.screw.(3)
•.Support.rod.w/clevis,.10-inch.(254mm).(2)
•.Support.rod.w/clevis,.9
.
1 /
2
-inch.(241mm).(2)
•.6-32.x.3/4-inch.socket.head.screw.(4)
Required Tools and Adhesives
•.Threadlock
•.Hex.wrench:.3/32-inch,.7/64-inch

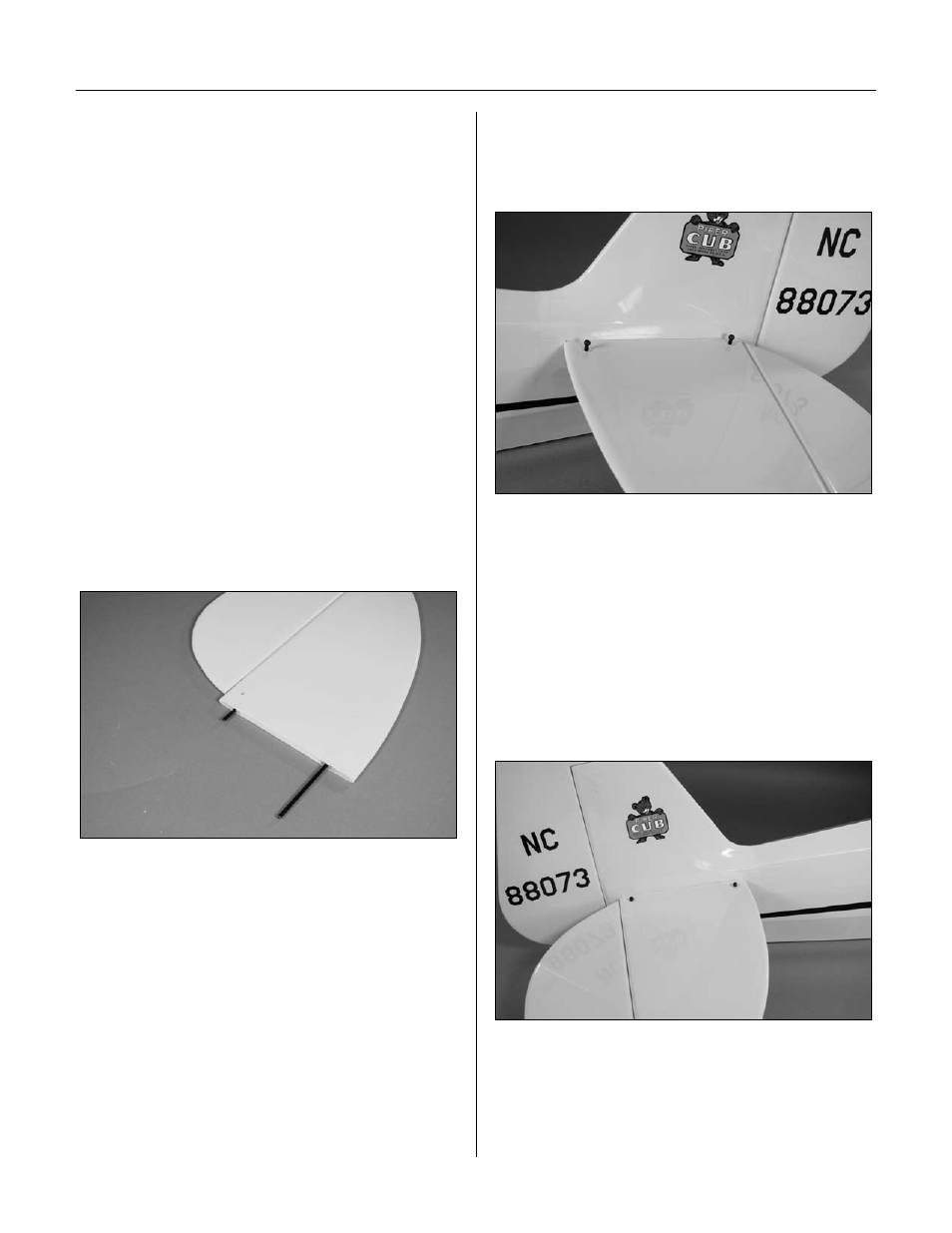

 .Step 1
Slide.the.6
.
3 /
8
-inch.(162mm).joiner.into.the.forward.hole.
in.the.stabilizer.
 .Step 2
Slide.the.stabilizer.into.the.slot.in.the.fuselage..Use.two..
6-32.x.3/4-inch.socket.head.screws.and.two.#6.washers.
to.secure.the.stabilizer.
Note:.Leave.the.screws.loose.until.
instructed.to.tighten.them.
 .Step 3
Slide.the.remaining.stabilizer.into.the.slot.in.the.fuselage..
The.tubes.from.the.first.stabilizer.will.key.into.the.second.
stabilizer..Use.two.6-32.x.3/4-inch.socket.head.screws.
and.two.#6.washers.to.secure.the.stabilizer..Once.all.four.
screws.have.been.started,.tighten.each.one,.but.avoid.
crushing.the.underlying.wood.
Note:.Use.threadlock.on.the.four.6-32.screws.
to.prevent.them.from.vibrating.loose.in.flight.
Stabilizer Installation
