Hangar 9 1/4-Scale J-3 Cub ARF - Manual (Page 11)

11
Note:.In.Step.2,.leave.the.screws.
loose.in.the.gear.until.all.the.struts.
and.cross.brace.are.in.position.

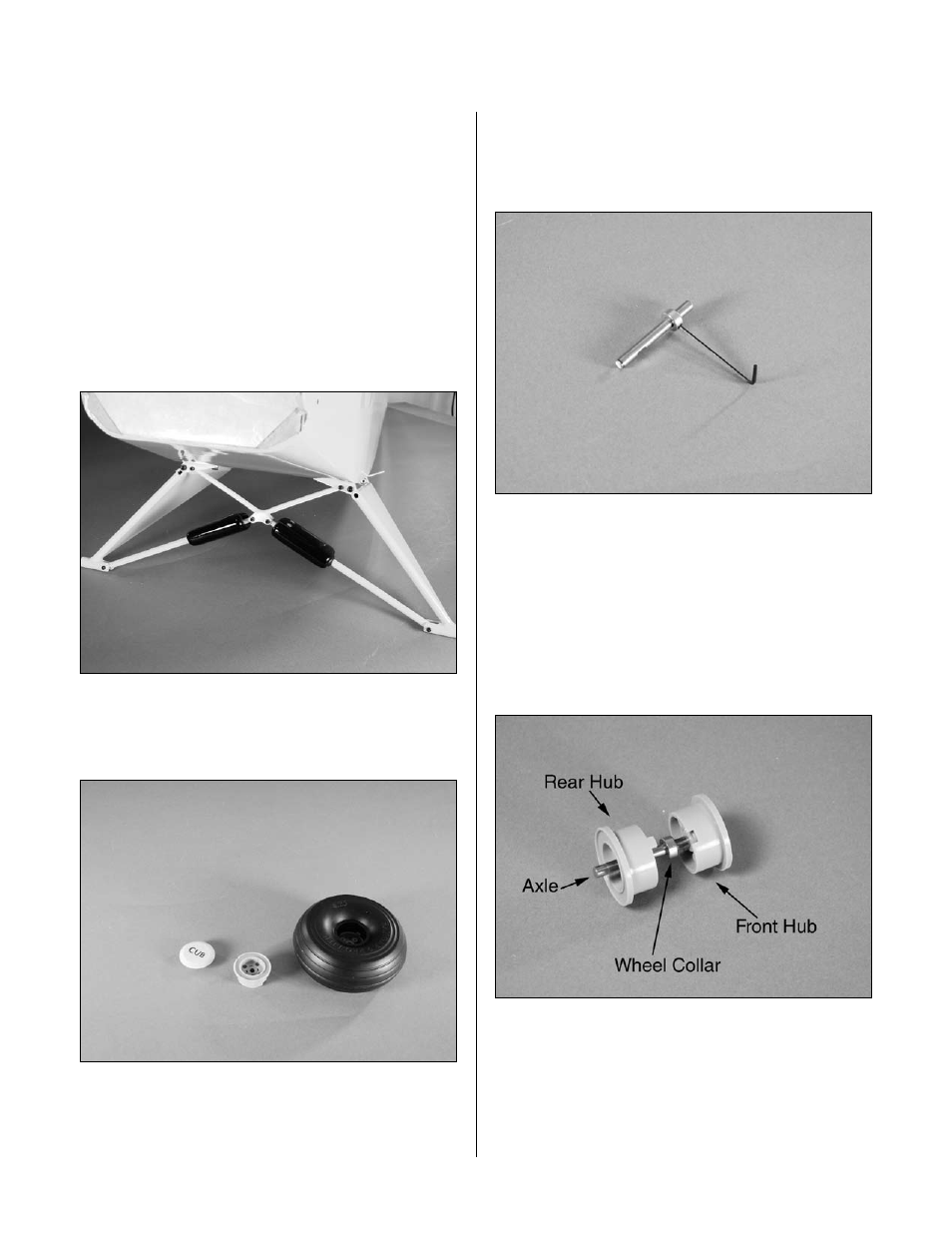

 .Step 2
Use.two.4-40.x.5/8-inch.socket.head.screws.and.two..
4-40.locknuts.to.attach.the.shock.struts.to.the.main.
landing.gear.struts..The.cross.brace.also.uses.two..
4-40.x.5/8-inch.socket.head.screws.and.4-40.locknuts..
to.attach.to.the.gear.near.the.fuselage..Last,.use.two..
4-40.x.1/2-inch.socket.head.screws.and.two.4-40.
locknuts.to.attach.the.shock.struts.to.the.cross.brace.
 .  .Step 3
Locate.the.main.wheel.and.remove.the.front.and.rear.hubs.
from.the.wheel.
 .  .Step 4
Secure.the.wheel.collar.to.the.axle.by.tightening..
the.setscrew.onto.the.flat.of.the.axle.with.the.included..
hex.wrench.
Note:.Use.threadlock.on.the.setscrew.to.
prevent.it.from.vibrating.loose.in.flight.
 .  .Step 5
Slide.the.rear.hub.into.the.wheel..The.rear.hub.is.
identified.as.the.one.without.the.holes.going.through.the.
hub.for.the.screws..Slide.the.longer.portion.of.the.axle.
into.the.hub,.then.slide.the.front.hub.into.the.wheel.
Note:.The.photo.does not.show.
the.wheel.to.illustrate.how.the.wheel.
collar.is.placed.between.the.two.wheel.
hubs.to.hide.the.wheel.collar.
Landing Gear Installation
