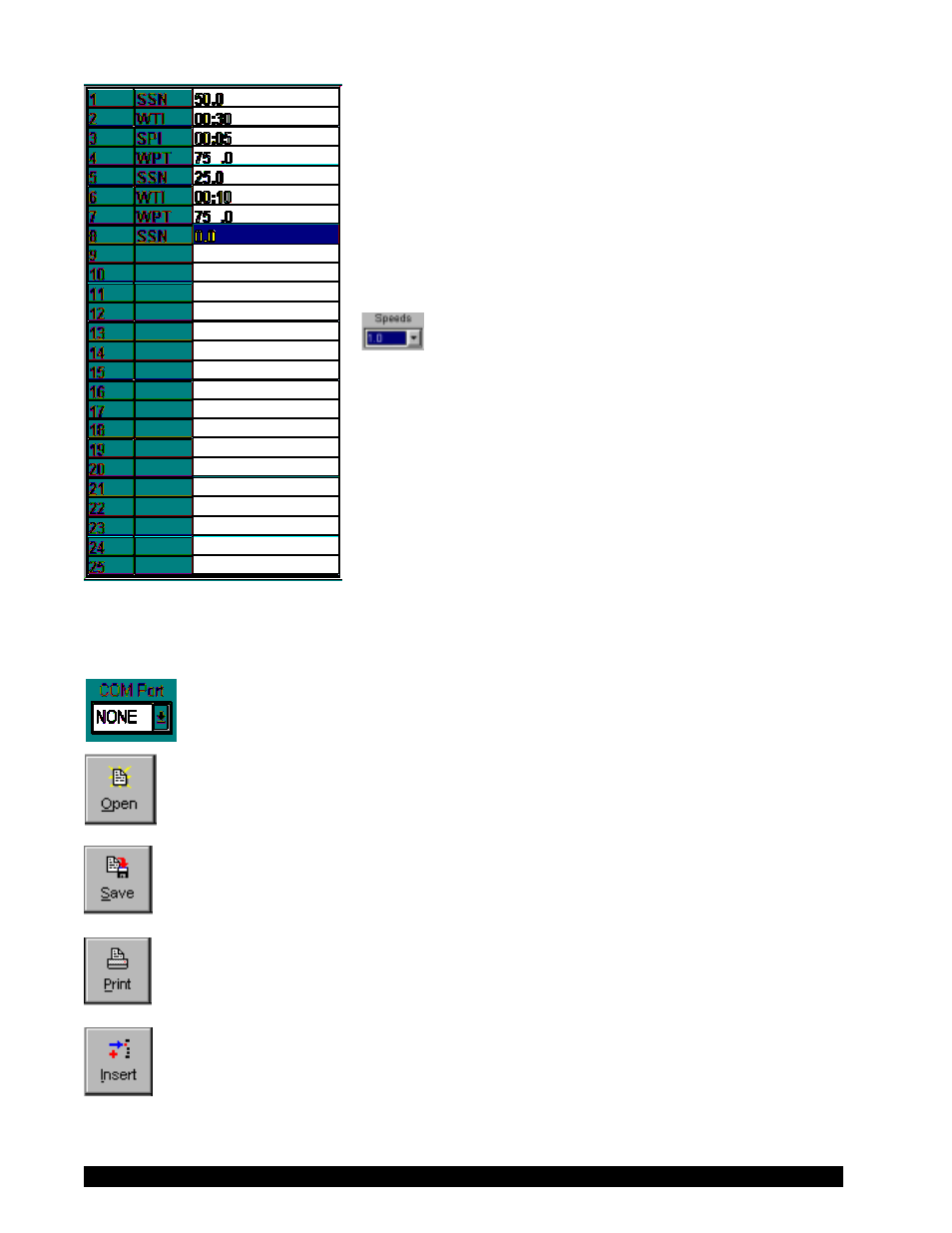

Figure 67 shows the grid where the operator programs are
created. It is used to view and edit the B.E.V.I.S. programs.
When the software starts, an empty grid appears on the left of
the screen. You can choose up to 25 commands for your
program. Highlight each command in the list box to the right of
this grid, then click on the Insert button to insert that same
command into the highlighted line of the grid. This same
insertion task can also be accomplished by double-clicking on
the appropriate command in the list box to the right.
In the case of a speed command (SSN), the Speeds
list box becomes enabled when the cursor is placed in
the parameter column for an SSN command. Click on the
down arrow to display a list of available speeds. Click on the
desired speed, and it will be inserted into the appropriate
parameter column in the program grid. The same applies to the
spindle command (SSP).
Select the COM (RS-232) port the Programmable DV-II+ viscometer is connected to
from the COM Port drop down list.
Click the Open File button to load existing B.E.V.I.S. programs.
Click the Save File button to save the B.E.V.I.S. program displayed in the grid.
Click the Print button to print the B.E.V.I.S. program displayed in the grid.
Click the Insert button to insert the B.E.V.I.S. command selected in the Commands
box into the selected row in the program grid.
The buttons shown on the main screen are explained below.
Figure 67
