52 vdc c
oNFigurAtioN
defined; no VDC Slots are reserved for specific data types.
The VDC interface includes the numeric VDC Slot display, the inc/dec buttons
used for VDC Slot selection, the Assign Port list of VDC data types, and a
selection button for choosing a VDC data type for the currently selected VDC
Slot.

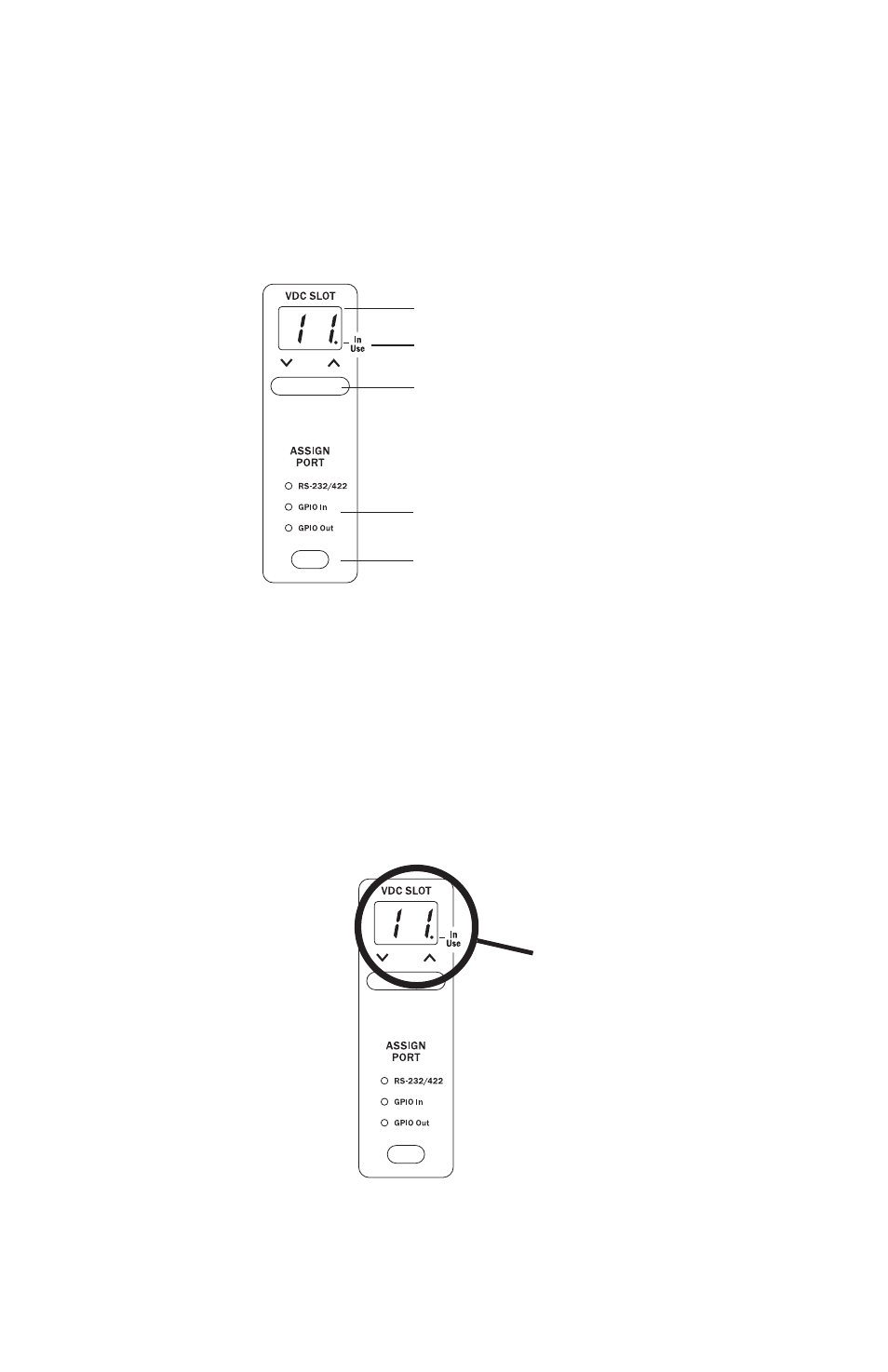

VDC Slot display
In Use LED
inc/dec button
VDC port
assignments
VDC port selection
The VDC section of the user interface is used to assign VDC ports and data
types.
VDC Slot Display
The two‑digit VDC Slot display shows the currently selected VDC Slot (1
through 14). The In Use LED within the display indicates that a selected
VDC Slot has an active input somewhere in the network. If only an output is
assigned to a particular VDC, its In Use LED will not be lit.
When a rear-panel VDC port has been assigned to a VDC Slot, its In Use
LED will be on.
