Setting Control Master Status
Setting a 6416dio to be the Control Master is done using the DIP switches
found on the rear panel. The Control Master switch is part of the Virtual Data
Cable port section of the interface.
75Ω
TERMINATION
B A
Digital I/O Module
AES3 I/O CHANNELS 9–16 AES3 I/O CHANNELS 1–8
6416
dio
AC POWER
1 AMP
PIN 1 = GND
PIN 4 = 24VDC
IN
OUT
RS-232/422
FUSE: 250VAC-F4AL
BACKUP POWER
1 2 3 4 1 2 3 4
GPIO INPUT
UP = ISOLATED
DN = TTL
PORT SETUP 1–8 CTRL MASTER

232 / 422

10
12 RESERVED 9, 11
ON
WORD CLOCK
IN
75Ω
TERMINATION
OUT
DIGIDESIGN / TASCAM COMPATIBLE
YAMAHA COMPATIBLE
VIRTUAL DATA CABLE PORTS

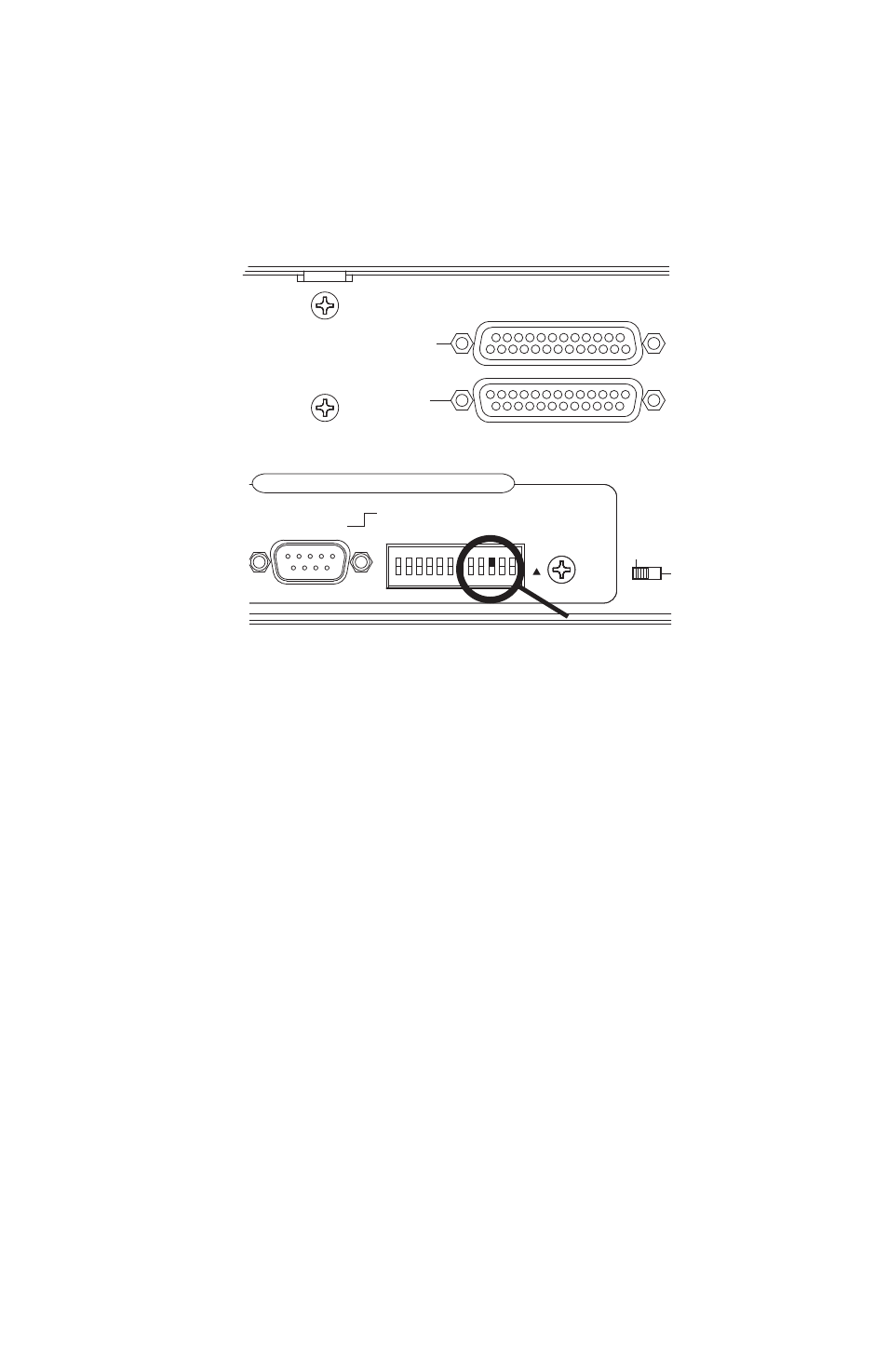

Switch 10 in the RS-232/422 configuration group is used to set the Control
Master status.
In the VDC section, locate the 12‑position DIP switch in the RS‑232/422 area
of the rear panel. Switch #10 will set the 6416dio to be the Control Master for
the Pro64 network when the switch is in the on (up) position (the up position
is shown in black in the diagram above).
Control Master Functions
This section describes the individual functions that the designated Control
Master device in a Pro64 network controls.
Enumeration
When the Control Master is powered on, its first job is to identify and count
all connected A‑Net modules in the network in a process called enumeration,
similar to a PC booting up and loading its operating system. The time for this
process will vary based upon the number of modules in a system.
Enumeration is an automated process performed by the command and
control portion of the A‑Net software. There are no user‑controllable
