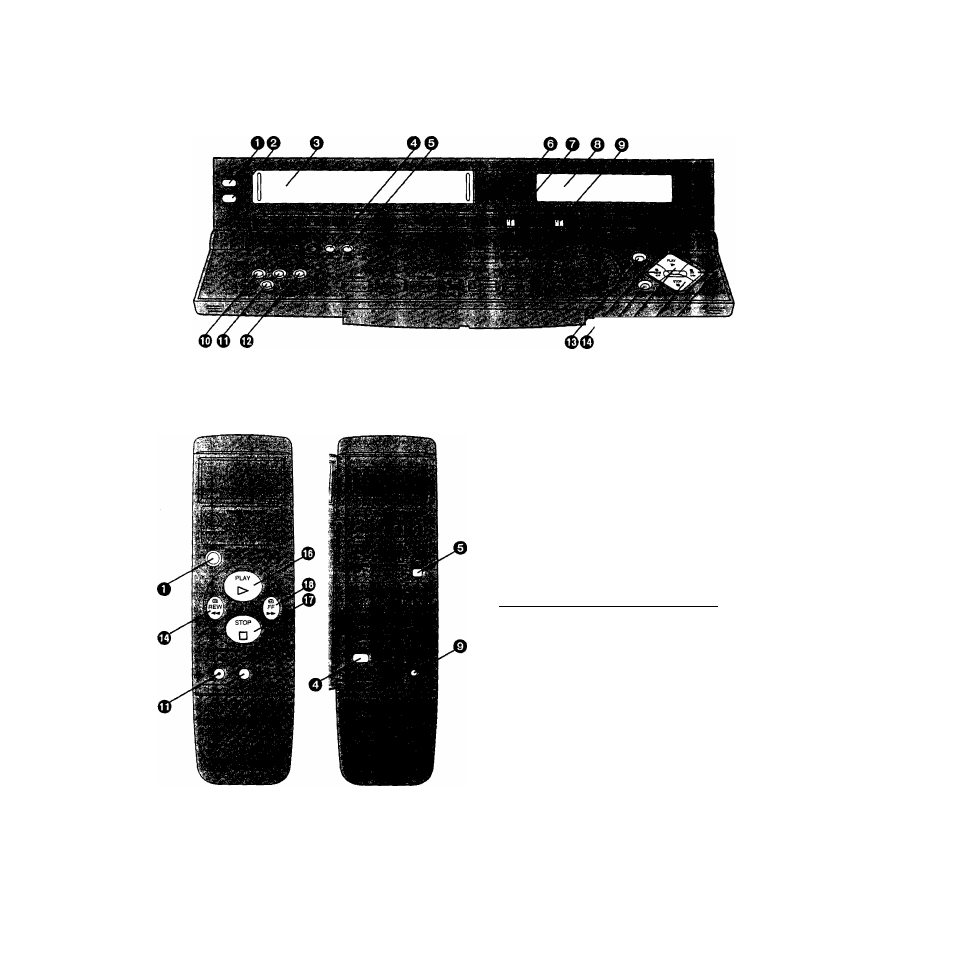

Controls and Connection Sockets
(D
Basic Controls
o
e
OPERATE
To turn the VTR on and off.
EJECT
To eject a video cassette,
o Cassette Compartment
Insert a video cassette here.
o AUDIO OUT
To select the desired sound mode.
At the every push of this button, the audio output mode
changes as follows.
|-»Stereo-»Left-»Right-»Normal audio track—j
The Left and Right Indicators show which sound mode
is selected in the following way.
Stereo; Both the Left and Right Indicators are lit.
Left:
The Left Indicator is lit.
Right: The Right Indicator is lit.
Normal: Both the Left and Right Indicators are not lit.
© AVLINK
To select the VTR mode or TV mode for AV LINK.
© S-VHS Indicator
Lights up when the S-VHS switch is set to ON.
