Connections
SP A B indicators
Light up according to the set of front speakers activated
(see page 43).
SP A: The FRONT A speakers are activated.
SP B: The FRONT B speakers are activated.
SP A B: The FRONT A and FRONT B speakers are
activated.
® ZONE2 indicator
Lights up when Zone 2 is turned on (see page 104).
® DSP indicators
The respective indicator lights up when any of the sound
field programs are selected (see page 48).
CINEMA DSP indicator
Lights up when you select a CINEMA DSP sound
field program (see page 48).
VIRTUAL indicator
Lights up when the Virtual CINEMA DSP mode is
active (see page 51).
SILENT CINEMA indicator
Lights up when headphones are connected and a
sound field program is selected (see page 51).
@ Multi-information display
Shows the name of the current sound field program and
other information when adjusting or changing settings.
® SLEEP indicator
Lights up while the sleep timer is on (see page 47).
® Input channel and speaker indicators
----- LFE indicator
ÌLFÈ
I s D ìsb I ìsr I
□ - Presence speaker indicators
_ Input channel indicators
(US (m
Input channel indicators
• Indicate the channel components of the current
digital input signal.
• Light up or flash according to the settings of the
speakers when this unit is in the automatic setup
procedure (see page 32) or in the “BASIC MENU”
in “MANUAL SETUP” (see page 87).
Presence speaker indicators
Light up or flash according to the setting of “EXTRA
SP ASSIGN” when this unit is in the automatic setup
procedure (see page 32) or in the “BASIC MENU” in
“MANUAL SETUP” (see page 85).
You can make settings for the presence and surround back
speakers automatically by running “AUTO SETUP” (see
page 32) or manually by adjusting settings for “SUR.B L/R
SP” (see page 86) in “SPEAKER SET”.
Using the remote control

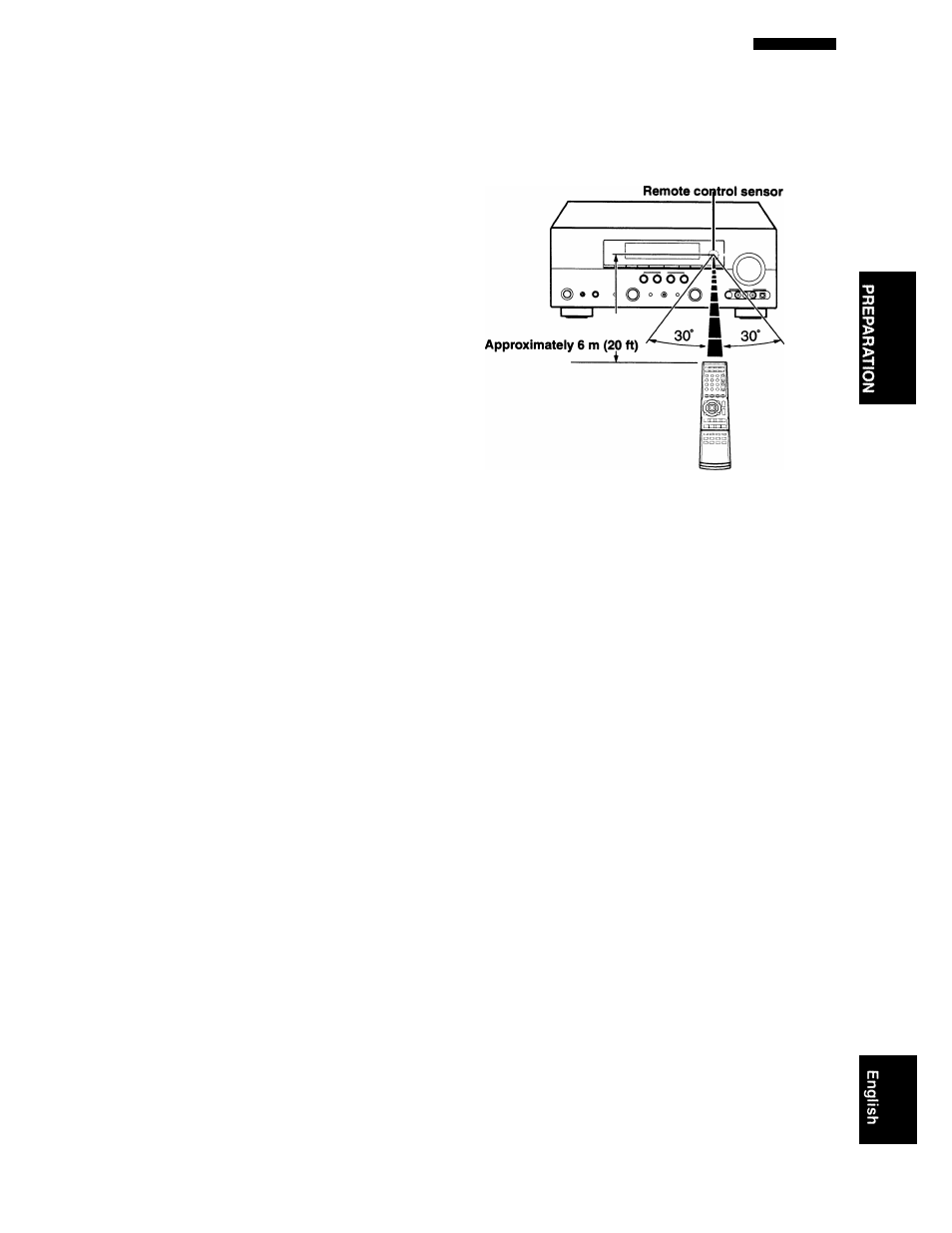

The remote control transmits a directional infrared ray.
Be sure to aim the remote control directly at the remote
control sensor on this unit during operation.
©Infrared window
Outputs infrared control signals. Aim this window at the
component you want to operate.
To set the remote control codes for other components, see
page 102.
NotBB
• Do not spill water or other liquids on the remote control.
• Do not drop the remote control.
• Do not leave or store the remote control in the following types
of conditions:
- places of high humidity, such as near a bath
- places of high temperature, such as near a heater or stove
- places of extremely low temperatures
- dusty places
