Before You Start
D
Front side view
c
•D
0)
o
5'
(O

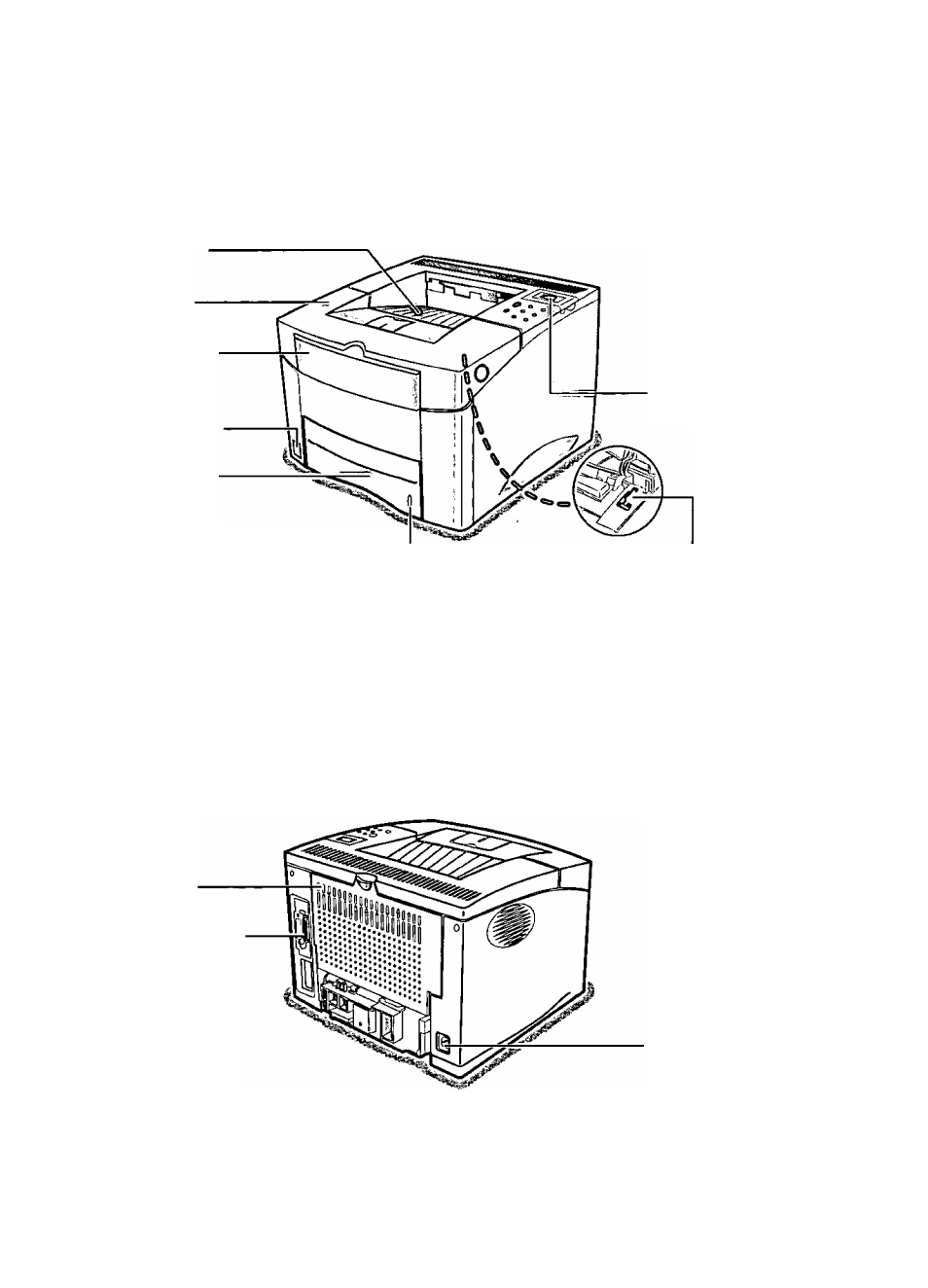

The following illustration shows the front view of your printer and indicates the various main
elements.
Output tray
Top cover
(see page 22)
MP (Multi
purpose) tray
(see page 27)
Power switch
(see page 32)
1st cassette
(1st tray)
(see page 24)
Paper level indicator -
* a window showing paper level
Print prevention sensor
(It prevents the printer
from printing when 250
sheets of paper are piled
up on the top output bin.)
Operator panel
(see page 19)
LSU (Laser Scanning Unit) cleaner
(When the top cover is opened)
(see page 49)
Rear side view
The following illustration shows the rear view of your printer and indicates the various main
elements.
Rear cover
(see page 53)
Parallel interface
connector
(see page 30)
AC inlet
(see page 32)
18
