2-5 T-268-07
d. Condenser Section
The condensing section consists of a condenser fan
motor, a condenser fan and an air-cooled condenser coil.
When the unit is operating, air is pulled in the bottom of
the coil and discharged horizontally out through the
front of the condenser fan grille.
1
2
3
4
5
6
7
8
2

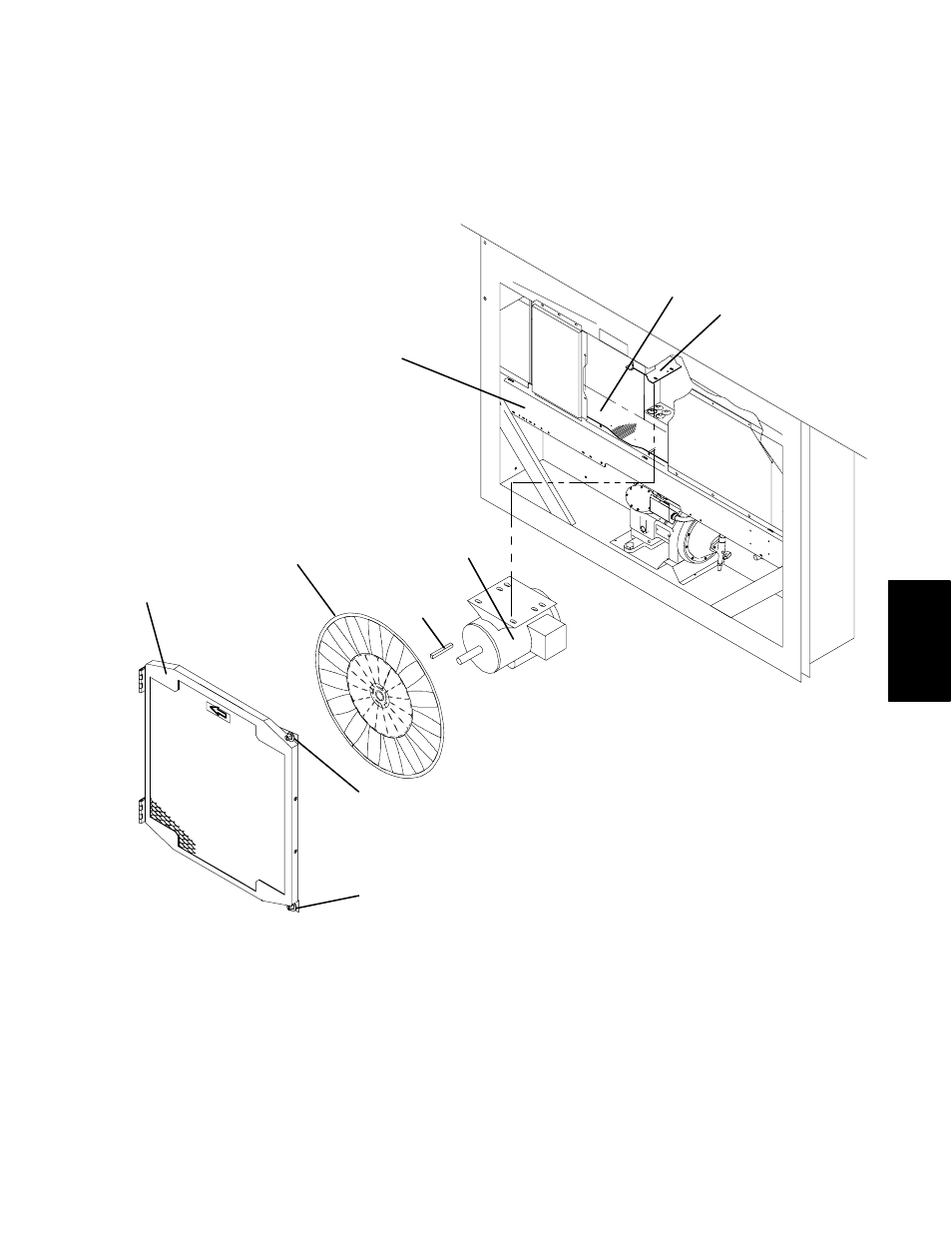

1. Grille and Venturi Assembly
2. Retaining Screw
3. Condenser Fan
4. Key
5. Condenser Fan Motor (CM)
6. Condenser Coil Cover
7. Condenser Coil
8. Condenser Motor Mount Bracket
Figure 2-4. Condenser Section
