Page 2
Installation Guidelines
W A T E R W O R K S
Waterworks is a registered trademark of Waterworks Inc.
10.06.06
1
1a
2
3
3a
3c
3d
4
3b
4a
5e 5d
5c
5b
5
6b
6a
6
3d
4c
4b
6c
6d
5a

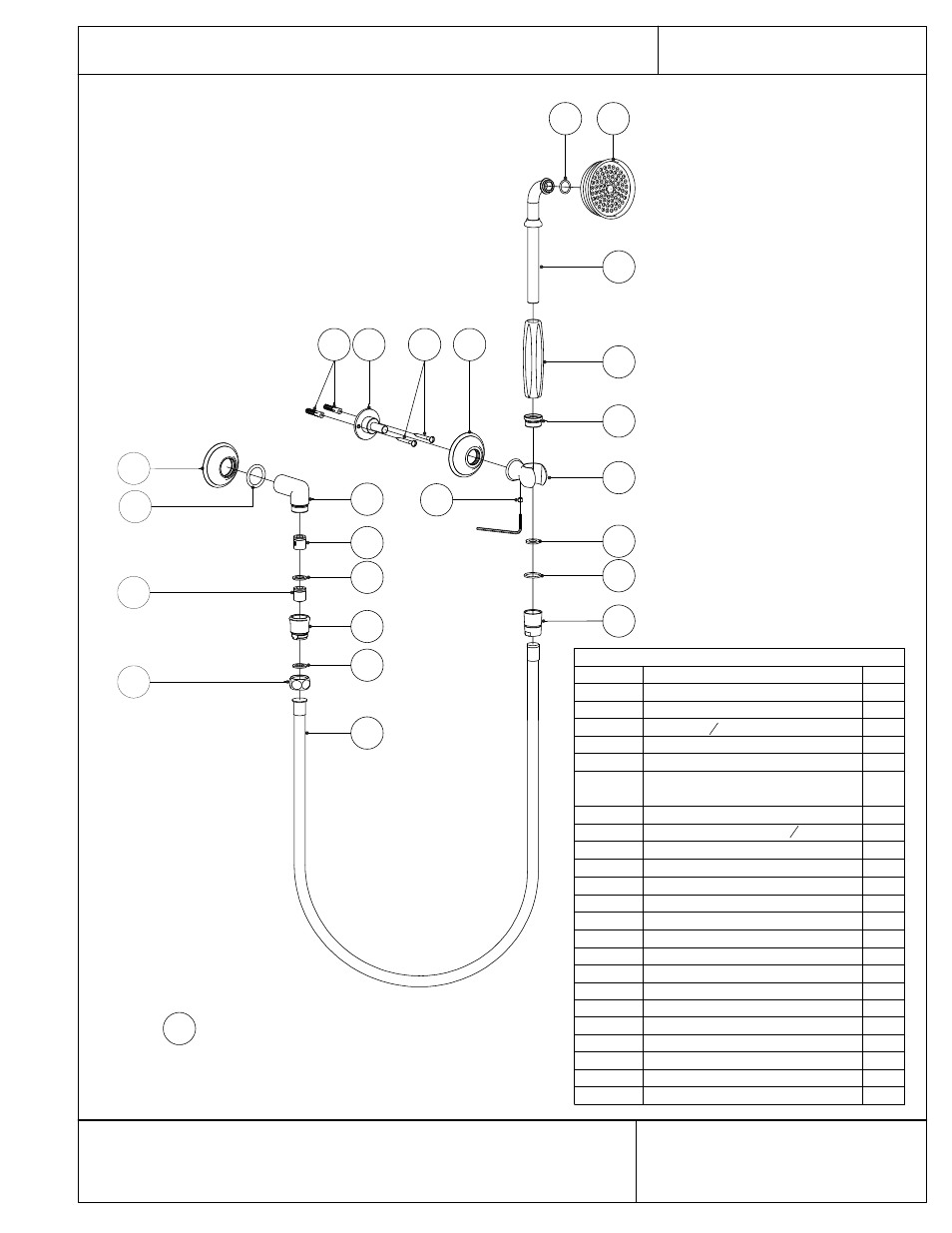

PARTS TABLE
ITEM NO. DESCRIPTION
QTY.
1
1
ESCUTCHEON
1a
O-RING, INNER
2
ELBOW,
1
2
" NPT
3
CHECK VALVE
3a
WASHER
3b
FLOW REGULATING CHECK
VALVE, 2.5 GPM
3c
CHECK VALVE HOUSING
3d
2
WASHER, RUBBER-
1
2
"
4
HOSE
4a
NUT
4b
NUT, CONICAL
4c
O-RING, OUTER
5
HOOK
5a
HEX SET SCREW, 2.5MM
5b
ESCUTCHEON
5c
2
SCREWS
5d
MOUNTING BRACKET
5e
2
ANCHORS
6
HANDSHOWER INLET BASE
6a
HANDLE
6b
HANDSHOWER INLET PIPE
6c
O-RING
6d
HANDSHOWER HEAD
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Julia Handshower on Hook
These guidelines have been prepared for the professional contractor to aid in the installation of:
JULIA HANDSHOWER ON HOOK (JUHS11-K, JUHS12-K, JUHS13-K) All dimensions
are based on original specification and are subject to change and variation. Please consult your Design
Associate for current specifications.
3b FLOW REGULATING CHECK
VALVE, 2.5 GPM
