REGULATOR
One Hole Low Profile Bar Faucet with Metal Wheel Handle

Installation Guidelines

Page 2 of 2

Rev - 01

10.9.2014

These guidelines have been prepared for the professional contractor to aid in the installation of:
REGULATOR ONE HOLE LOW PROFILE BAR FAUCET WITH METAL WHEEL HANDLE
(STYLE No. RGKM01, RG01KM UK).
All dimensions are based on original specification and are subject to change and variation.
Please consult your Design Associate for current specifications.

4. Connect the SUPPLY HOSES to the water supplies

making sure the hoses are not pinched or kinked.

NOTE: The SUPPLY HOSES are marked with colored
ZIP TIES to identify their function,

red for incoming hot

supply water and

blue for incoming cold supply water.

FINISHED AND INSPECT THE INSTALLATION:

5. Remove the AERATOR from the SPOUT using the

TOOL provided then open the hot and cold supplies
and carefully turn the HANDLE to flush out any debris
in the supply lines.

6. Inspect all connections for leaks.

7. Shut the water off and re-install the AERATOR.

SERVICING THE SPOUT:

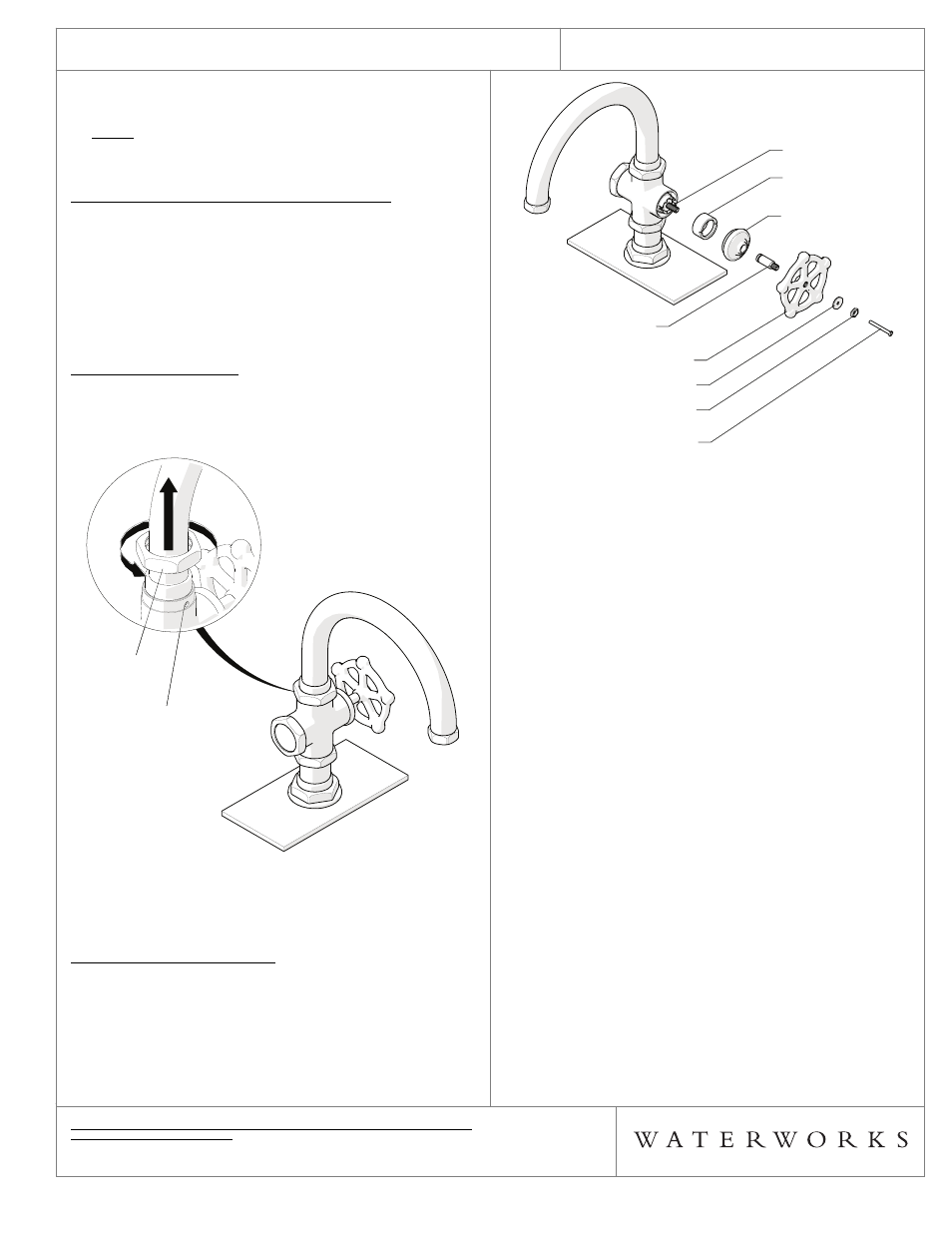

8. To remove the SPOUT, unthread the NUT to expose

the SET SCREWS on the front and back of the VALVE
BODY. See FIGURE – 02.

FIGURE - 02

9. Loosen the SET SCREWS and pull the SPOUT up to

remove.

SERVICING THE CARTRIDGE:

10. To access the CARTRIDGE, unthread the SCREW then

remove the HEX COLLAR, METAL WASHER, HANDLE,
and HANDLE STEM as shown in FIGURE – 03.

11. Unthread the GLAND COVER then unthread the

RETAINING COLLAR to expose the CARTRIDGE as
shown in FIGURE – 03.

NUT

SET SCREW

"FRONT AND BACK"

NUT

SET SCREW

"FRONT AND BACK"

FIGURE – 03



If further assistance is required, please contact Product

Support at 1-800-927-2120 Ext 2 Monday through
Friday, 8am - 6pm EST.



See the service part document for parts ordering,

available on WATERWORKS.COM.

* Putty contains oil and can cause permanent

discoloration on certain materials such as marble,
granite and any porous surface.

CARTRIDGE
RETAINING

COLLAR

GLAND COVER

HANDLE STEM

HANDLE

METAL WASHER

HEX COLLAR

SCREW
