R.W. ATLAS
Wall Mounted Articulated Pot Filler with Metal Lever Handles Installation Guidelines
Page 2 of 2
Rev - 01
10.14.2014
These guidelines have been prepared for the professional contractor to aid in the installation of:
R.W. ATLAS WALL MOUNTED ARTICULATED POT FILLER WITH METAL LEVER HANDLES
(STYLE No. RWPF01, RW10PF UK)
All dimensions are based on original specification and are subject to change and variation.
Please consult your Design Associate for current specifications.

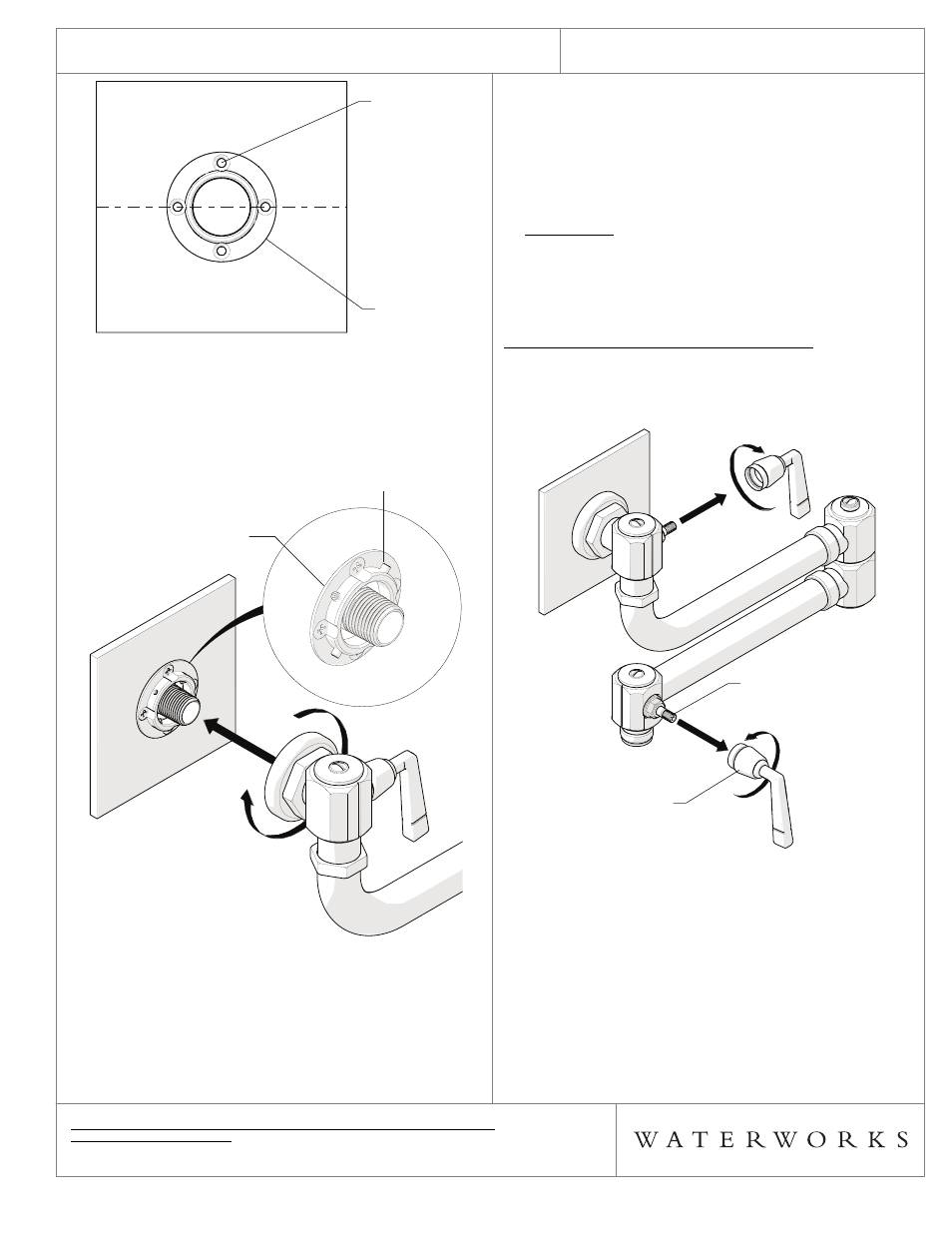

FIGURE – 02
5. Slide the ESCUTCHEON and HEX COLLAR against the
VALVE BODY and loosen the 4 SET SCREWS on the
MOUNTING PLATE, then thread the POT FILLER onto
the 1/2" male NPT connection. Make sure to securely
tighten the POT FILLER. See FIGURE – 03.
FIGURE – 03
6. Securely tighten the SET SCREWS. The SET SCREWS
will prevent the POT FILLER from rotating.
7. Slide the ESCUTCHEON over the MOUNTING PLATE
then slide the HEX COLLAR against the ESCUTCHEON
to hold the ESCUTCHEON against the finished wall.
PRE-DRILLED
HOLES
MOUNTING
PLATE
C/L
PRE-DRILLED
HOLES
MOUNTING
PLATE
MOUNTING PLATE
SET SCREW (X4)
8. If desired, a bead of caulk or a clear silicone may be
applied where the escutcheons contact the finished
wall. DO NOT use putty.*
9. Remove the AERATOR from the SPOUT using the
TOOL provided then open the inlet supply water and
carefully turn both LEVER HANDLES to flush out any
debris in the supply lines.

IMPORTANT: Both valves must be open for water to
flow out. Only 1 valve must be closed to shut-off the
water.
10. Inspect all connections for leaks then re-install the
AERATOR.
SERVICING THE SHUT-OFF CARTRIDGE(S):
11. To access the SHUT-OFF CARTRIDGES, remove the
LEVER HANDLES by unthreading the GLAND COVERS.
See FIGURE – 04.
FIGURE – 04
 If further assistance is required, please contact
Product Support at 1-800-927-2120 Ext 2 Monday
through Friday, 8am - 6pm EST.
* Putty contains oil and can cause permanent
discoloration on certain materials such as marble,
granite and any porous surface.
CARTRIDGE
GLAND COVER
CARTRIDGE
GLAND COVER
