PRODUCT SUPPORT 800.927.2120 8am - 6pm EST

RW ATLAS

Bridge Two Hole Deck Mounted Lavatory Faucet

INSTALLATION GUIDELINES

Page 2 of 2


8.14.2012

These guidelines have been prepared for the professional contractor to aid in the installation of:
RW ATLAS BRIDGE TWO HOLE DECK MOUNTED LAVATORY FAUCET WITH METAL LEVER SIDE
MOUNT HANDLES (STYLE# RWLS50)
All dimensions are based on original specification and are subject to change and variation.
Please consult your Design Associate for current specifications.
SEE SERVICE PART DOCUMENT FOR PART ORDERING, AVAILABLE ON WATERWORKS.COM

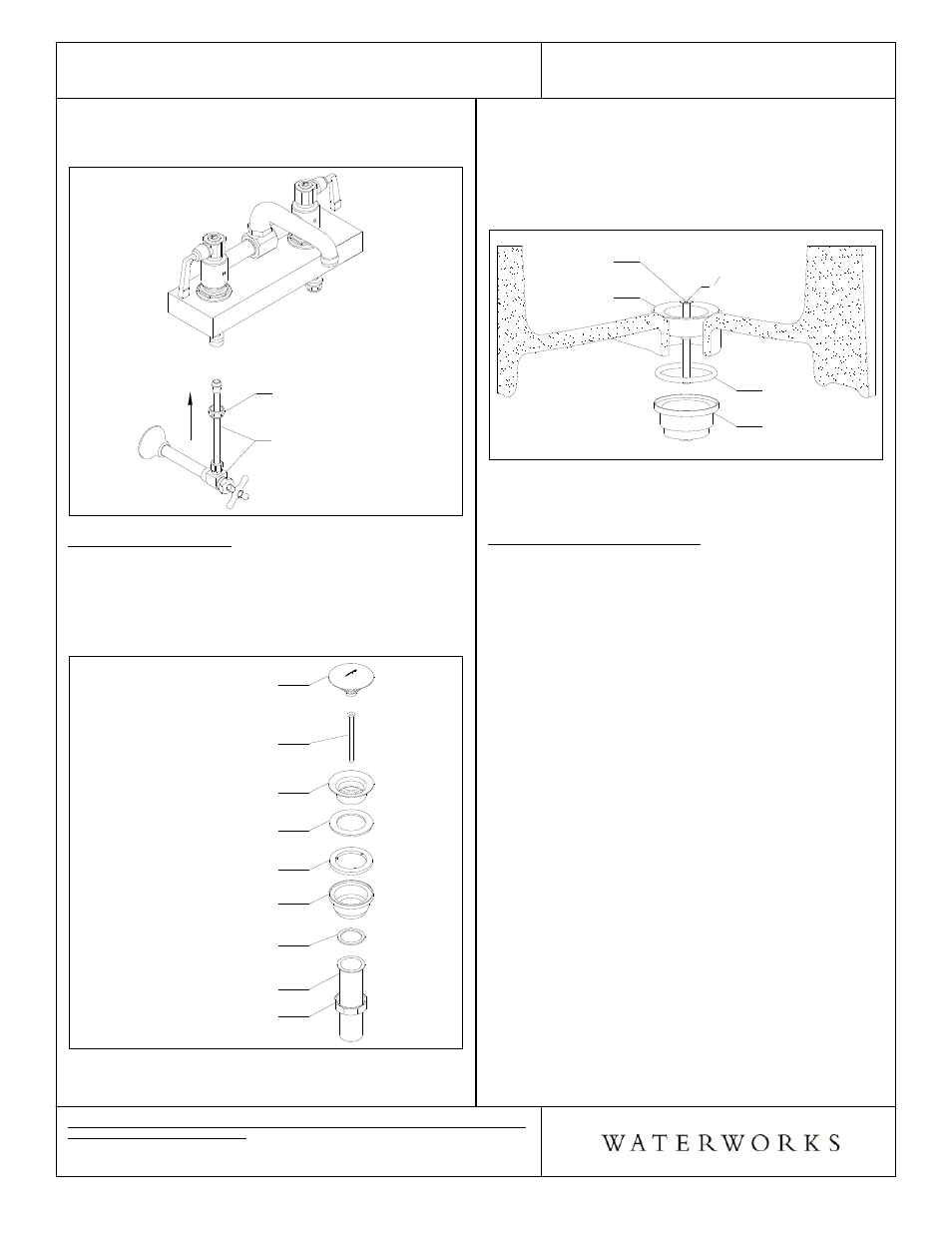

4. Attach supply kits [sold separately] to both inlet

supply tubes, using the supply nut. See Figure - 02.

Figure - 02

SUPPLY KIT

[SOLD SEPARATELY]

SUPPLY NUT


DRAIN INSTALLATION:

5. Unthread and remove the drain stopper and lower

drain body from the drain flange. The foam washer
can be discarded then remove the tailpiece from the
lower drain body. See Figure - 03.

Figure - 03

DRAIN STOPPER

SCREW

DRAIN FLANGE

FOAM WASHER

RUBBER GASKET

LOWER DRAIN BODY

TAILPIECE

RUBBER WASHER

TAILPIECE

NUT

6. Set the drain flange in the lavatory drain opening

using putty or a clear adhesive silicone depending

on the mounting surface material.* Re-install the
lower drain body with the screw, making sure to use
the rubber gasket provided and tighten until fully
secured. Putty or a clear adhesive silicone may be
used to ensure a water-tight seal between the
gasket and lavatory.* See Figure - 04.

Figure - 04

SCREW

DRAIN

FLANGE

RUBBER
GASKET
LOWER
DRAIN
BODY

5

32

" or 4mm

Hex Key

7. Re-install the tailpiece using the washer and nut

then re-install the drain stopper.

INSPECT THE INSTALLATION:

8. Remove the flow restricting aerator using a flat head

screwdriver or a coin, then carefully open the hot
and cold valves to flush out any debris in the supply
lines. See Figure 1.

9. Inspect all connections for leaks.

10. Close the drain and fill the sink with water to make

sure the drain stopper and gasket operates and
seals properly.

11. Re-install the flow restricting aerator making sure

the washer is in place.

¾ The hex collars on the bottoms of the handle

assembly can be rotated after installation to
orientate the hexes so they are straight.

¾ The screws on the top of the handle assembly are

aesthetic and do not serve any mechanical purposes
and should not be removed.

* Putty contains oils and can cause permanent

discoloration on certain materials such as marble,
granite and any porous surface.


¾ If further assistance is required, please contact

Product Support at 1-800-927-2120 (8am-6pm EST).

¾ See service part document for parts ordering,

available on WATERWORKS.COM.
