Rice Lake TransAct 2.0 User Manual
Page 53

52
Admin

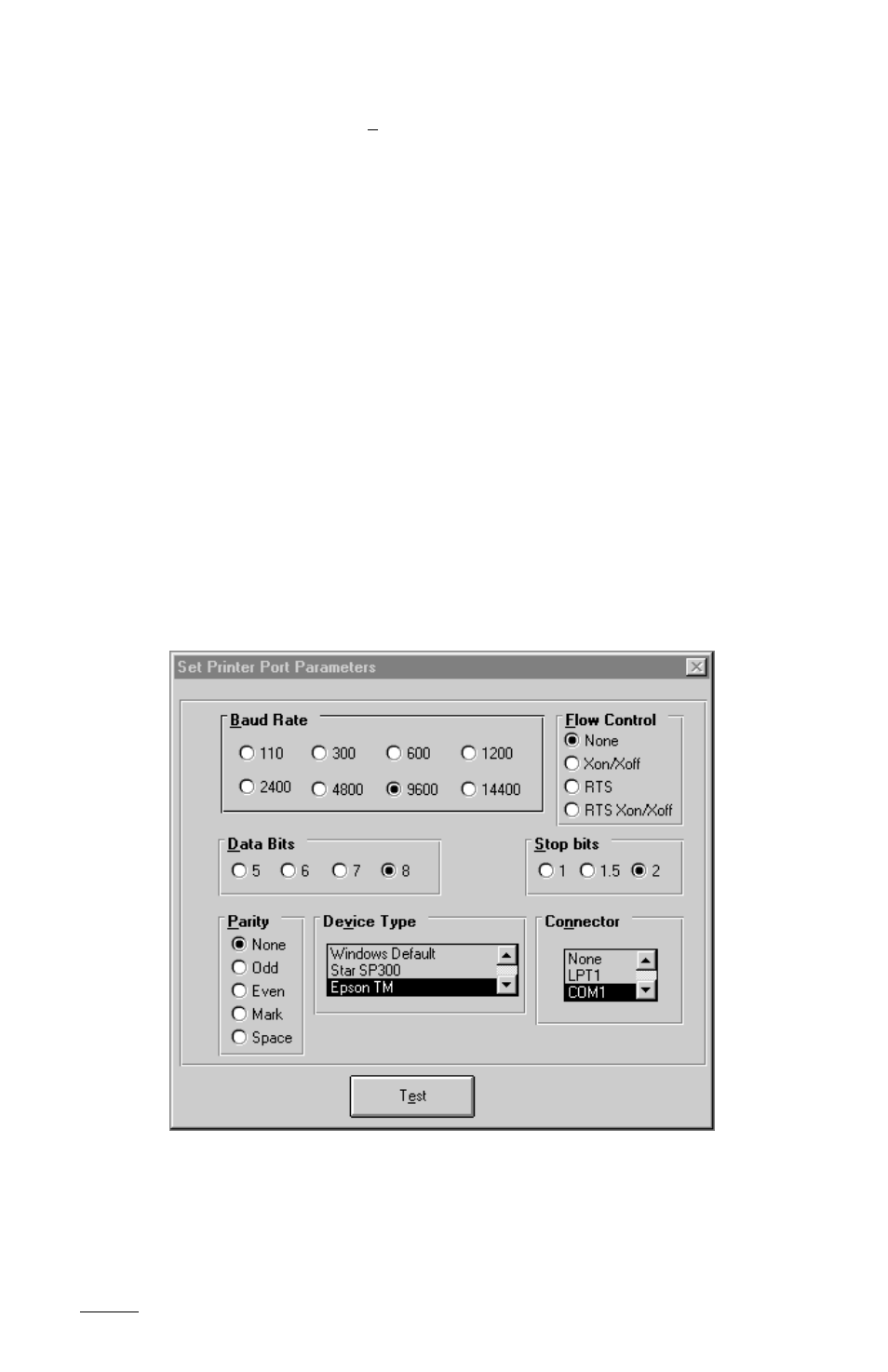

Set Printer Port Parameters
If you are not using a ticket printer with the TransAct program, simply select
None from the Connector list.
Select the Device type, Connector (i.e. serial port), and correct settings for
the second scale. Click the Test button to view activity received from the
scale. Data will be readable if the settings are correct.
Note: Be sure to select either Comm Ports 1 & 2 together, or Comm Ports
3 & 4 together. These combinations ensure that each port has a unique
interrupt, unless you have changed their configuration. If two scales have
the same interrupt, the dual scale feature will not work.
When you are not using a second scale, set the Connector to None. This
prevents the second indicator display window from appearing in the Weigh
form.
7.7.4
Ticket Printer Port
Use this mode to define the type of ticket printer connected to the computer.
You will need to know specific information about the ticket printer you are
using to properly interface with TransAct .
To set up the ticket printer, select Admin…
Preferences
Ticket Printer
Port to access the Set Printer Port Parameters window.
