Conversion of Brushed Micro Vehicle to Brushless page 4 of 14
Step 3.

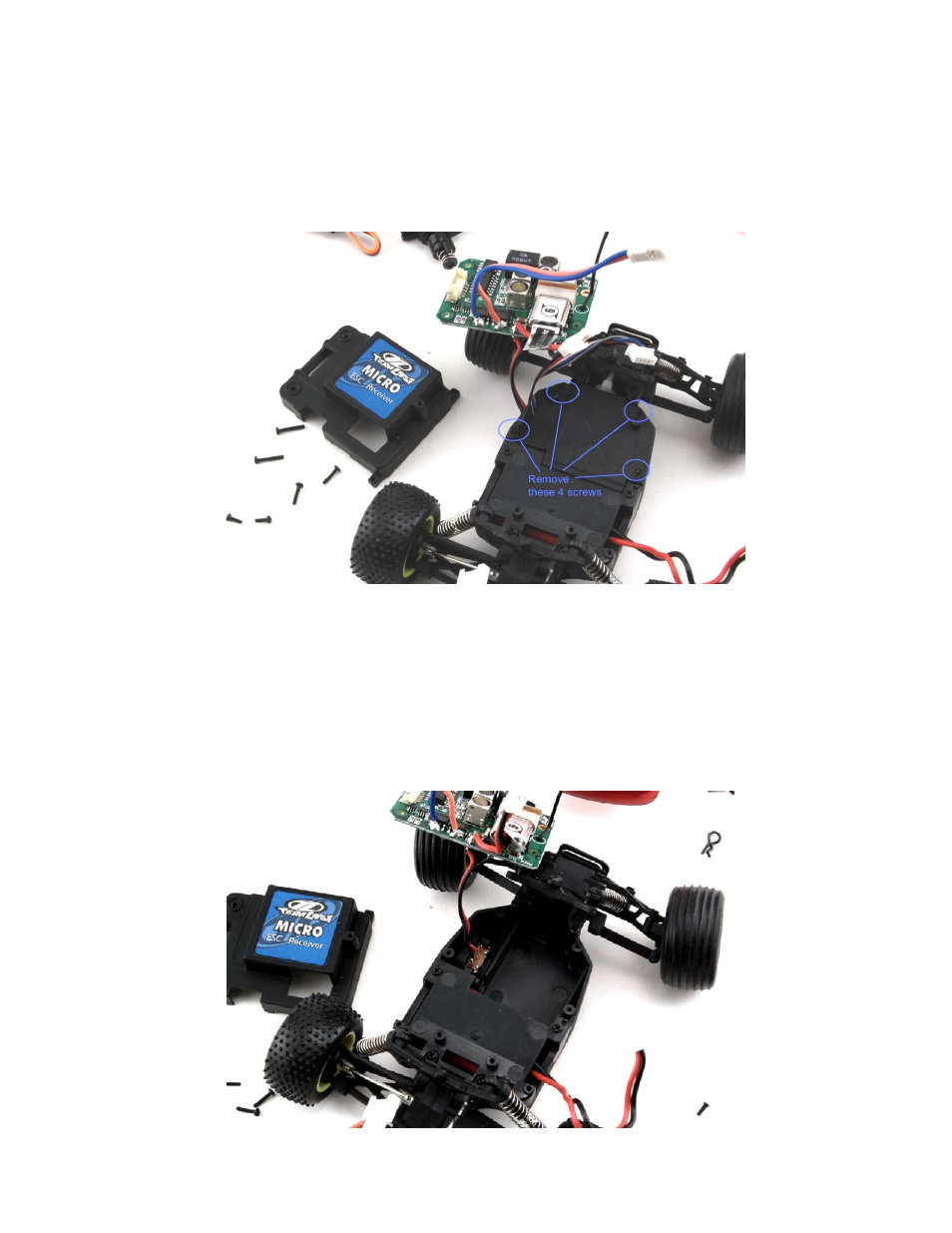

Lift and rotate this circuit board resting it on the left front tire as in the figure below.
Remove the four (4) screws holding the Servo cover in place. Shown in the circles.
Step 4.
With the servo cover removed, we can remove the servo by simply lifting it up and out.
Then we can remove the original ON/OFF switch. There are two plastic pins holding the
switch in place. Using the small Phillips screwdriver, gently push the pin/clip away from
the switch while pushing upward on the switch from the bottom of the chassis.
