Conversion of Brushed Micro Vehicle to Brushless
page 11 of 14

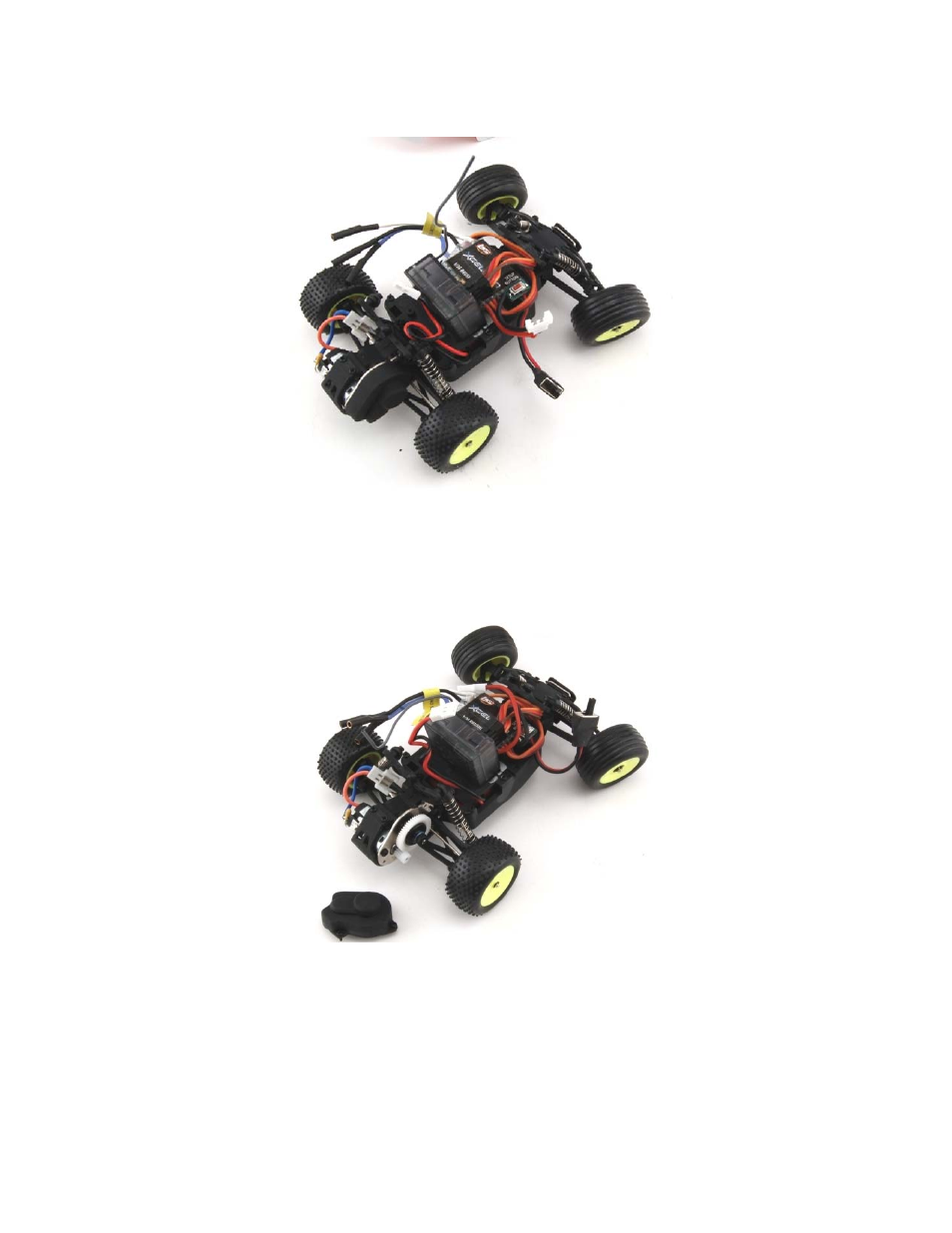

Different view with the ESC mounted on the servo tape.
Note: The steering servo and ESC have been plugged into the receiver below.
Step 12.
Now we will install the Brushless motor. First, remove the three (3) screws holding the
gear cover on.
There are two (2) screws holding the brushed “stock” motor in place. Remove these two
(2) screws.
Below the stock motor is on the right. Using the backside of the side cutters carefully
push the pinion away from the motor. The pinion is made of plastic and will come off
without much trouble.
Note: The car originally comes with three (3) pinions. The one installed on the motor is
an 11 tooth, and then two (2) more came in a plastic bag, a 10 and 12 tooth.
The 11T pinion works very good but for more speed install the 12T pinion.
