Conversion of Brushed Micro Vehicle to Brushless page 3 of 14
Let’s start the conversion:
Step 1.
Remove the two body clips holding the body on, and remove the body.
Disconnect the Battery

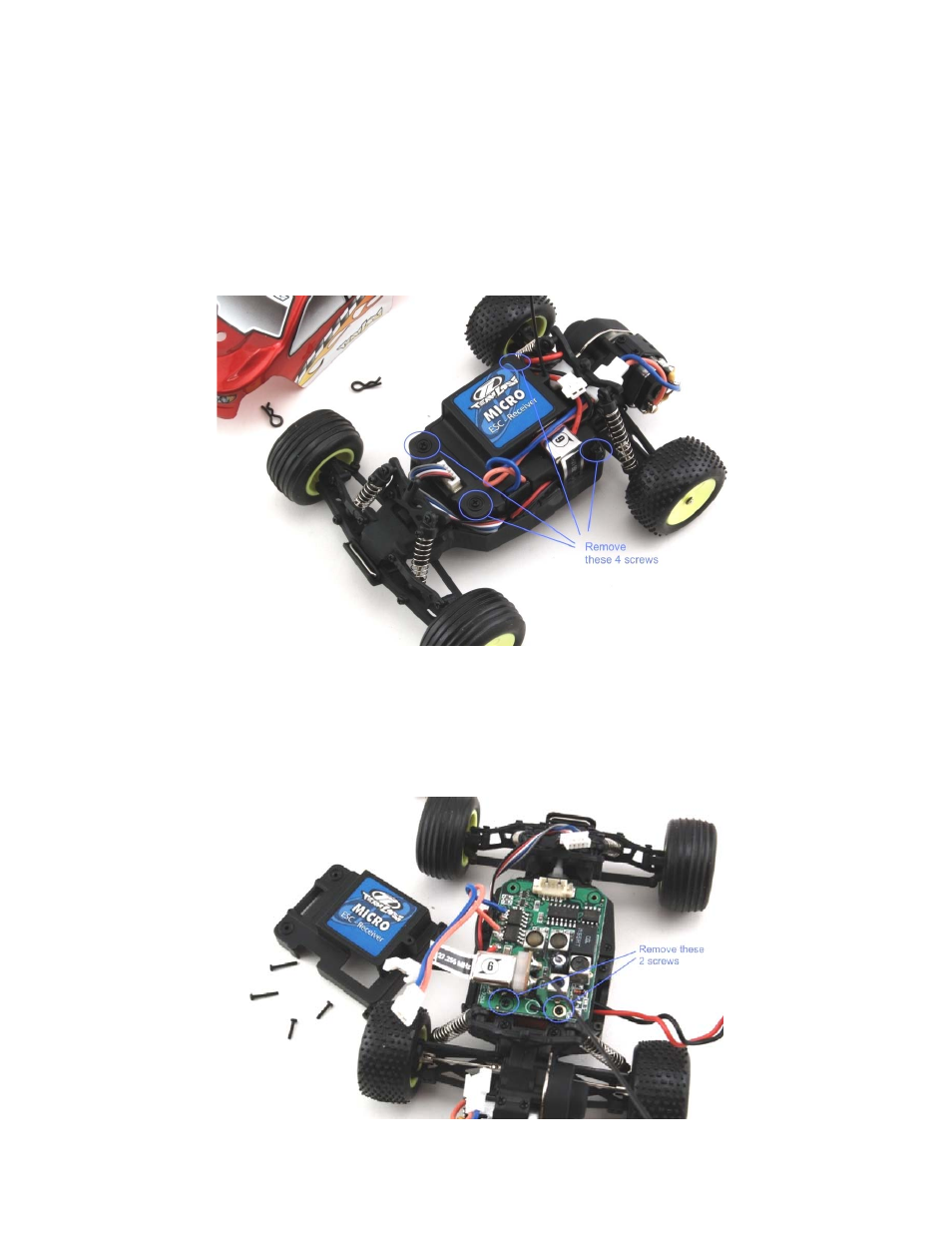

Now remove the four (4) screws that are holding the original Receiver/ESC cover in place.
The location of the screws is noted by the circles in the figure below.
Step 2.
Disconnect the Servo lead (white plug at the top of figure below).
Remove the two (2) screws securing the actual Receiver/ESC. Shown in the circles.
