Conversion of Brushed Micro Vehicle to Brushless page 10 of 14

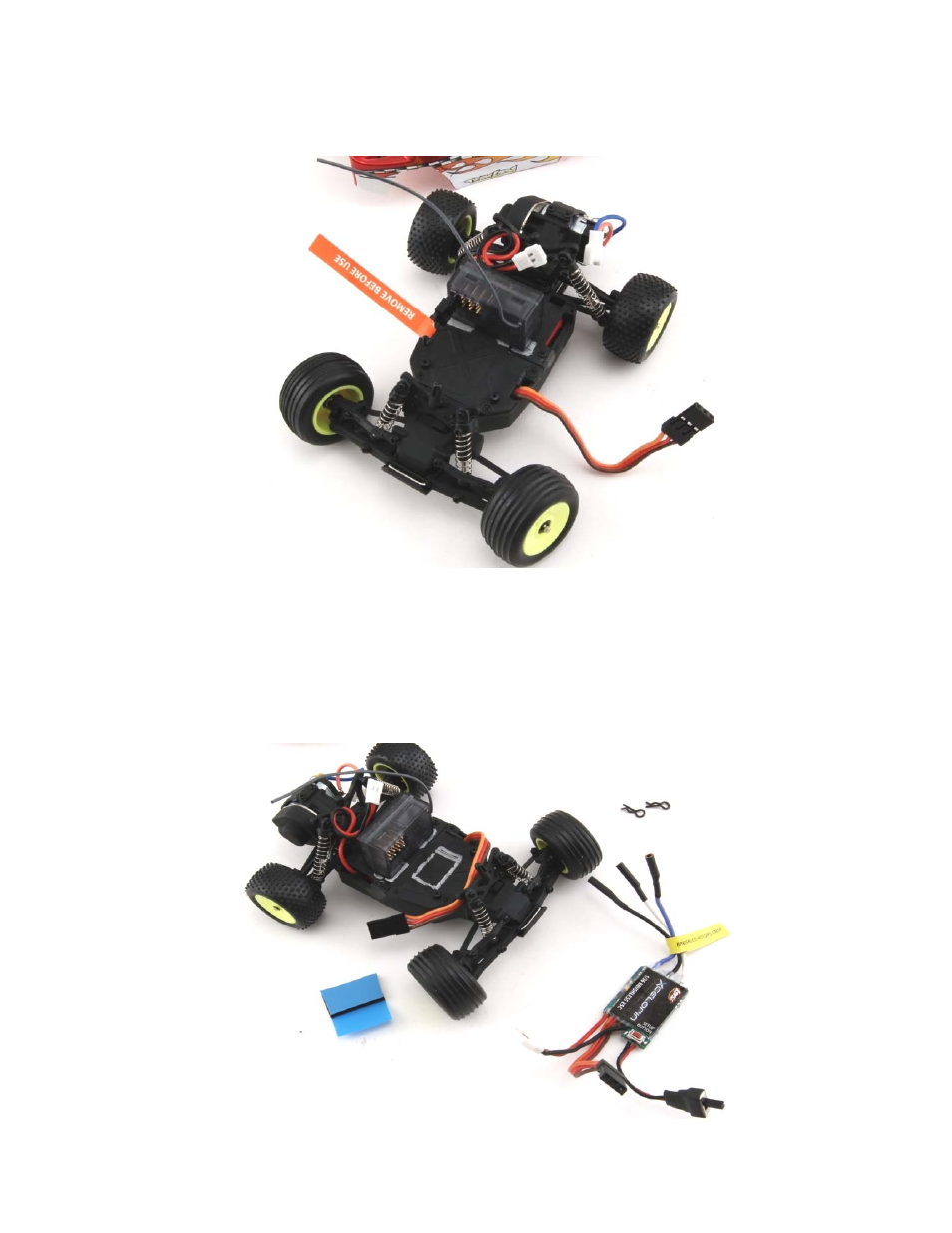

The receiver has been installed.
Note: The BINDING plug location, all the PINS are pointing towards the front.
Step 11.
We are now ready to mount the ESC just in front of the receiver. Notice the “square” in
light color. Cut the servo tape twice as long so you can double up before use.
Note: We will most likely remove this in the last step to center the servo. You may want
to do that now and jump to Step 15 and then returning to Step 11.
