Kontron IP Network Server NSW1U
December 2009
Product Guide, rev. 1.4
61
Optional Component Installation Procedures—NSW1U Network Server
4.7
Installing a SMART Embedded USB Solid-State Drive
The optional SMART Embedded USB Solid-State Drive (eUSB SSD)provides local memory storage for
various options such as system information, diagnostic partitions, and configuration data. The eUSB
SSD is positioned perpendicular to the EFP board and fastens to the PCI fan air duct.
1. Remove the chassis top cover. For instructions see
Section 3.2.1, “Removing the Chassis Cover”
.

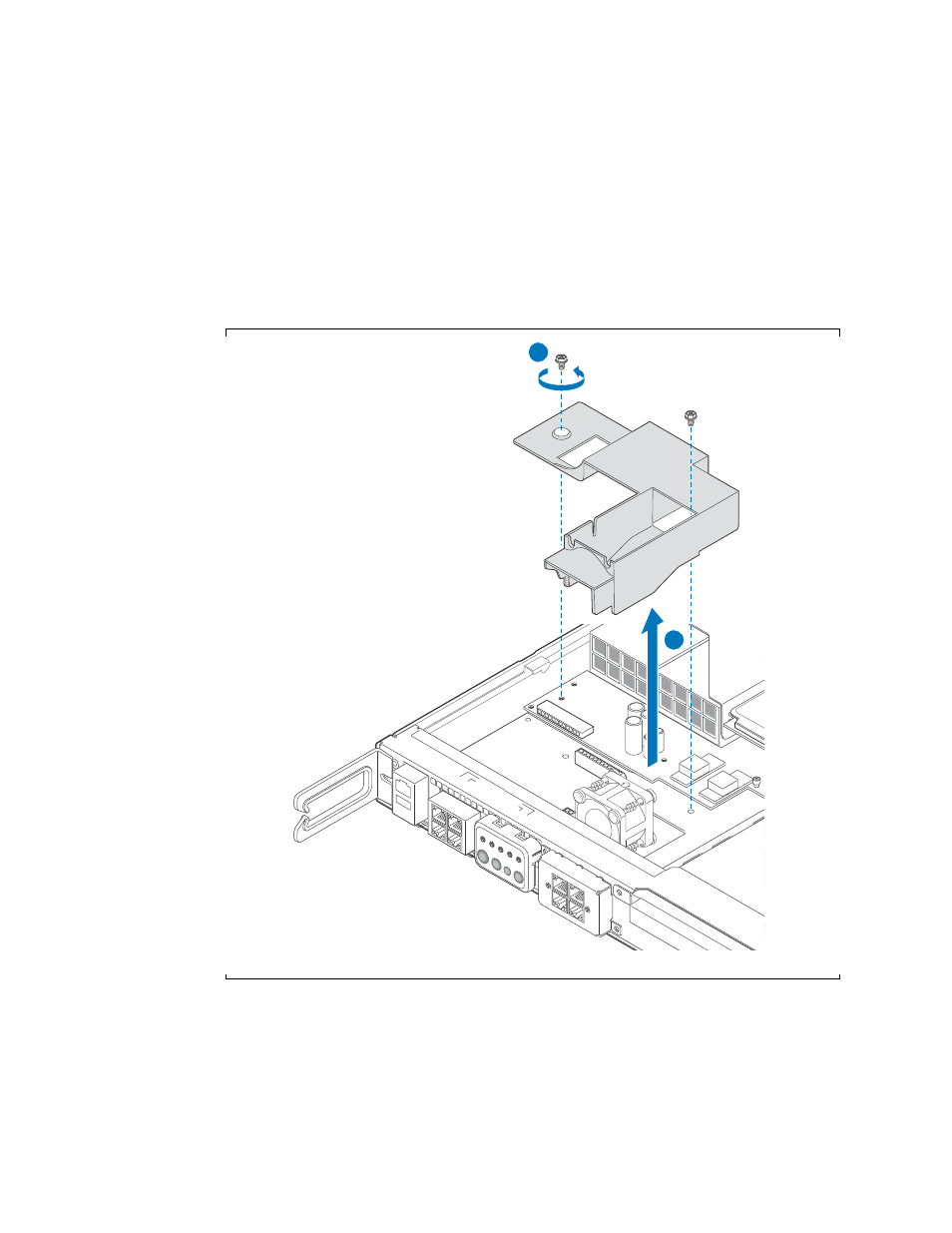

2. Remove the PCI fan air duct as shown in
.
Figure 44.
Removing the PCI Fan Air Duct
TS000504
A
B
