10. Standard Interfaces – Pin Assignments

Micro Client 3 – User’s Guide (Version 1.0)

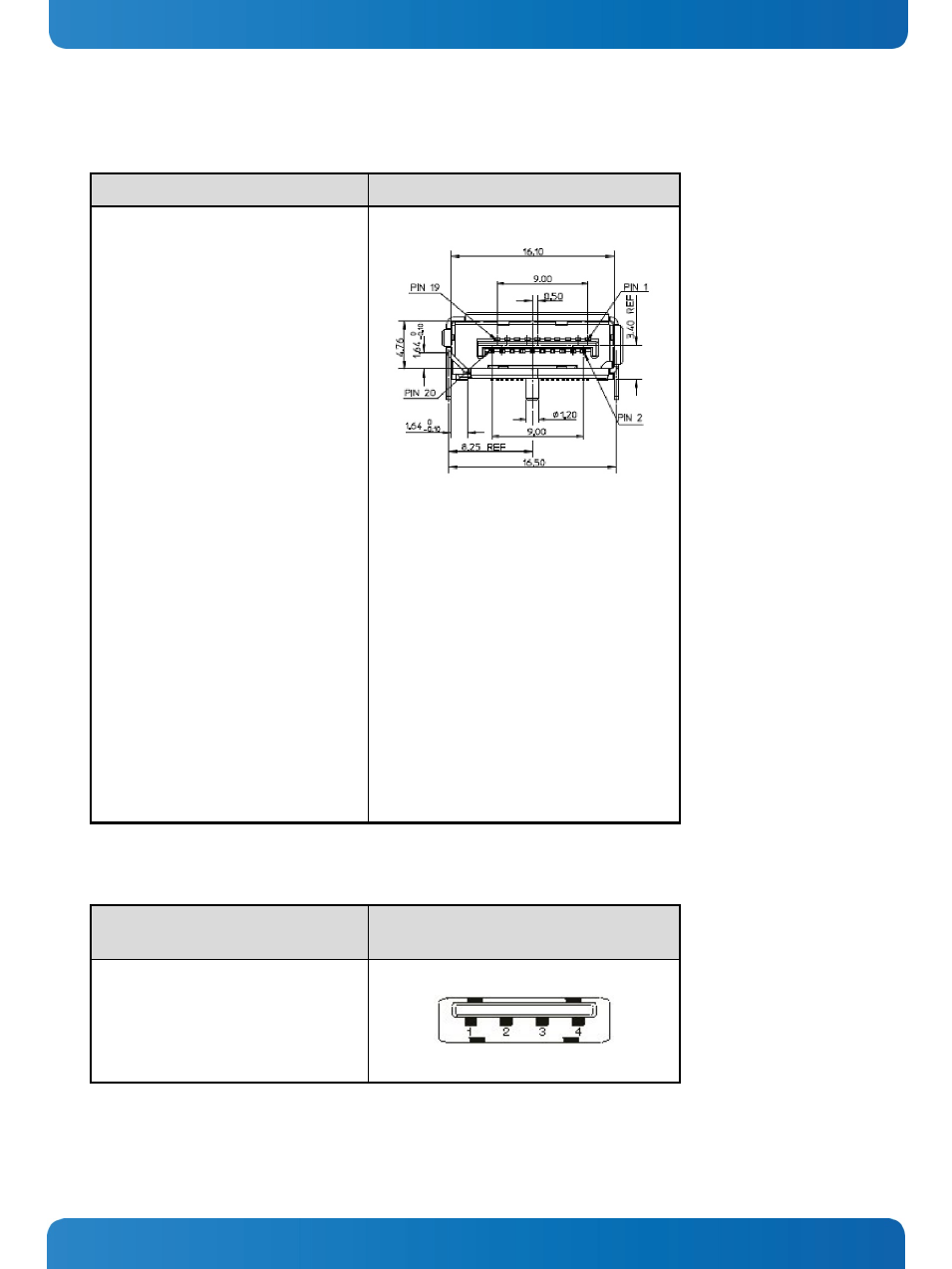

10.1.7. DP Connector (DisplayPort)

Pin Signal Name

20-pin DP Connector

1

ML LANE 0+

2

GND (ML LANE 0)

3

ML LANE 0-

4

ML LANE 1+

5

GND (ML LANE 1)

6

ML LANE 1-

7

ML LANE 2+

8

GND (ML LANE 2)

9

ML LANE 2-

10 ML LANE 3+

11 GND (ML LANE 3)

12 ML LANE 3-

13 AUX_SEL#

14 Pull-down to GND

15 AUX CH+

16 GND (AUX CH)

17 AUX CH-

18 Hotplug

19 GND (GND_DDC)

20 +3.3V (DDC EEPROM power)

500mA fused

10.1.8. USB Port

Pin Signal Name

4-pin USB Connector

Type A Version 2.0

1

VCC

2

Data-

3

Data+

4

GND

60
