7. Product Description

Micro Client 3 – User’s Guide (Version 1.0)

7.12. MC 3/MC 3W System Mounting to a Subframe or Panel

The system configurations come in the delivering status without assembled mounting clamps and the corresponding Allen
Screws. In order to mount the system to a subframe or panel, refer to Fig. 43 or Fig. 44, depending on the system ordered.

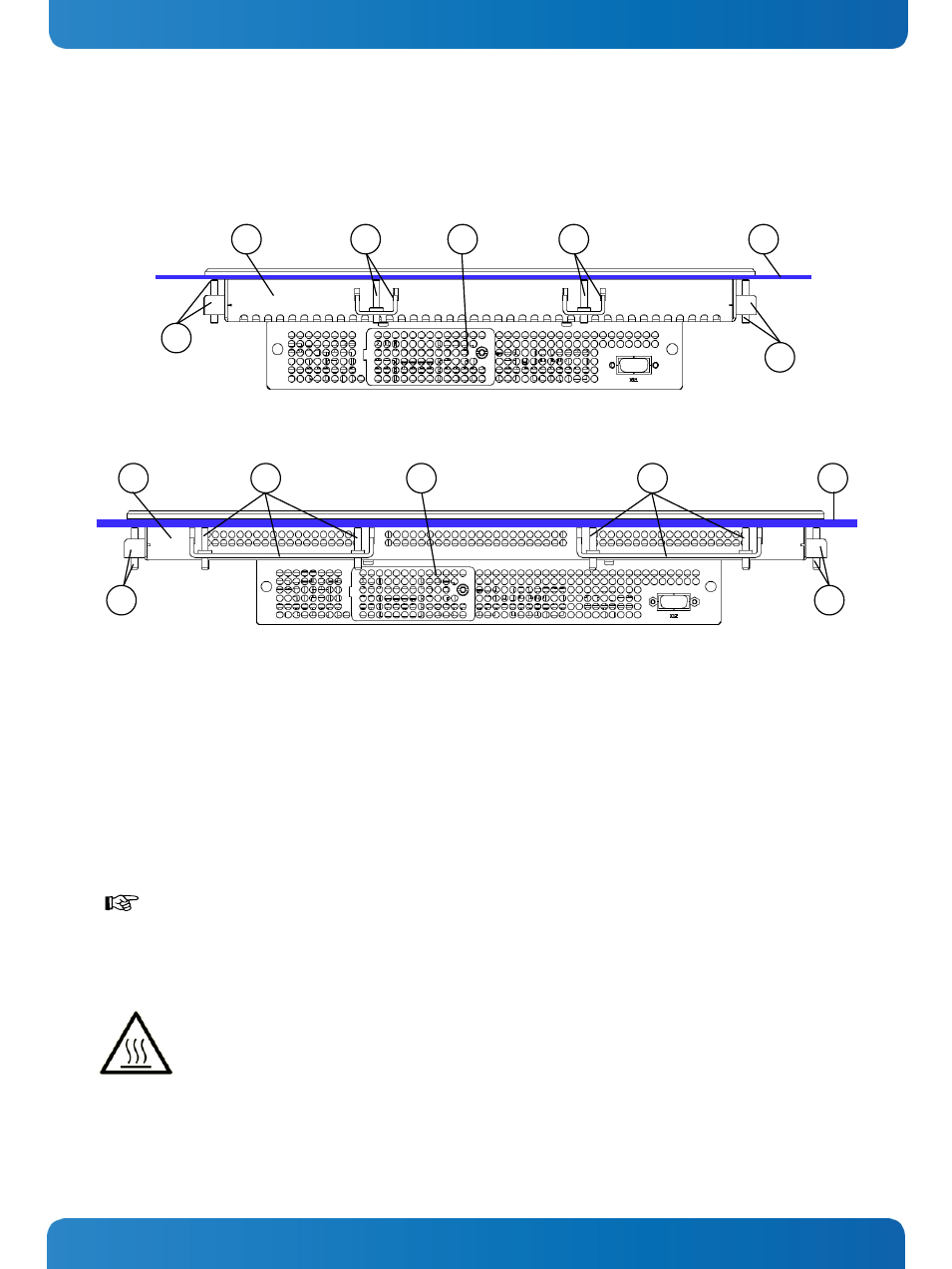

Fig. 43: Detail with mounting clamps and a subframe

(shown with a MC 3 104 system)

Fig. 44: Detail with mounting clamps and a subframe

(shown with a MC 3W 156 system)

Legend for Fig. 43 and Fig. 44:

1 Enclosure of the 10.4" display

2 Mounting clamp with 1x screw (used for mounting of

MC 3 104/ MC 3W 156 into a subframe/panel)

3 Cover of CompactFlash™/SD card slot

4 Example of subframe for system installation

5 Enclosure of the 15.6" display

6 Mounting clamp with 2 screws (used for mounting of the

MC 3 121/150/170 and MC 3W 156 into a
subframe/panel)

In order to ensure IP65 front sealing against dust and water,

mount the system on a non-textured

surface. Before you install the MC 3 system into a panel or a subframe for industrial cabinet, verify the
perfect condition of the seal at the rear of the front plate. The seal has to be in place without
injury/defects and dirt.

Please observe the warning label “Hot Surface” shown in Fig. 36 and Fig. 37on the rear side of the cabinet.

The MC 3/MC3W chassis may be hot during operation and should not be touched without taking care.

The material on bottom surface of the enclosure interior where the MC 3/MC 3W is to be mounted, shall
keep at least flammability class UL 94-5VB. Don’t put flammable materials under the device.

2

2

2

5

6

2

4

2

4

1

2

3

6

3

42
