Fig. 1: bottom view, Fig. 2: right view, Fig. 3: frontal view – Kontron Micro Client 3 104 User Manual
Page 17: Fig. 4: left view, Fig. 5: top view, Fig. 6: rear view
7. Product Description
Micro Client 3 – User’s Guide (Version 1.0)

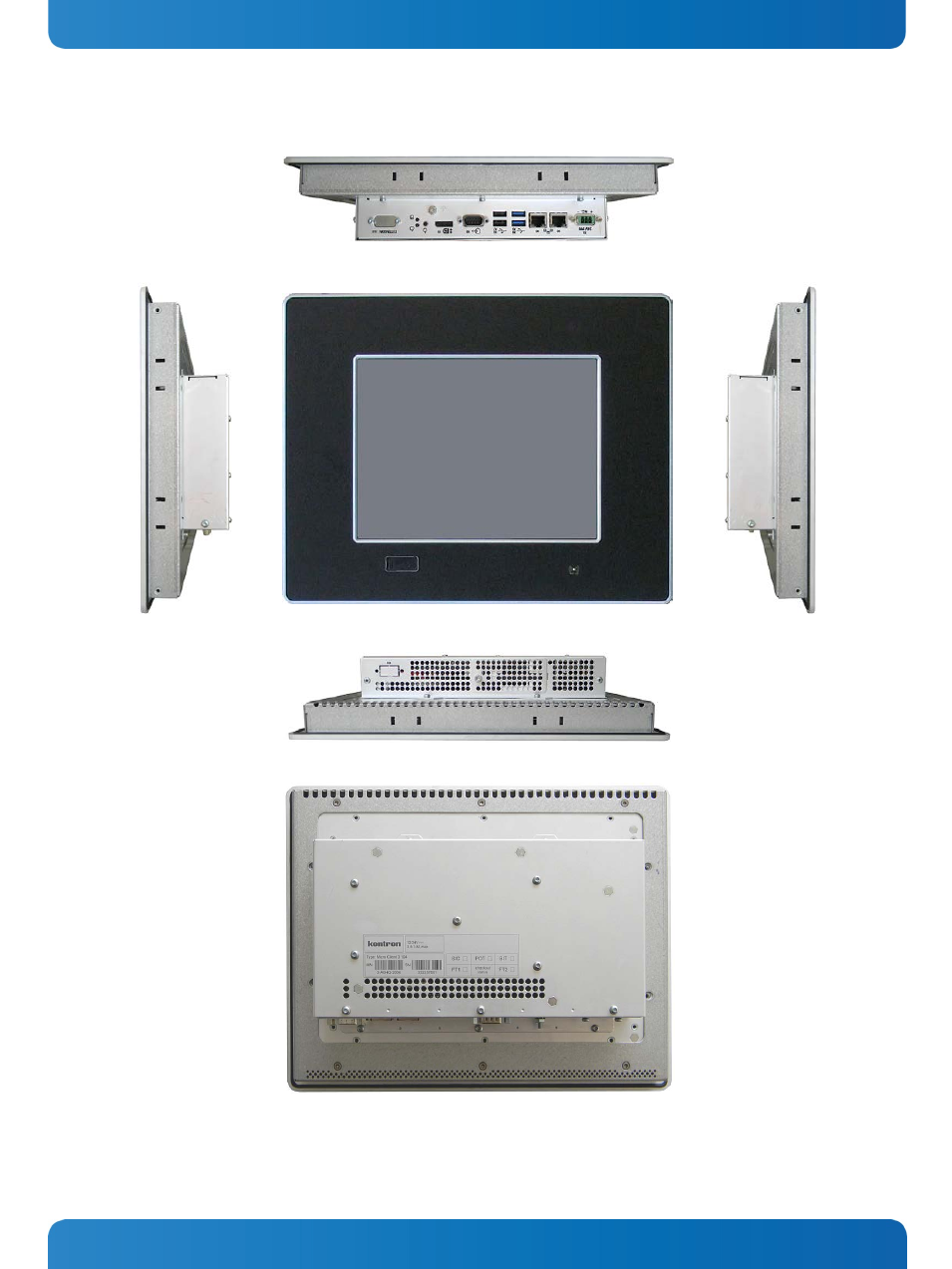

Fig. 1: Bottom view
Fig. 2: Right view
Fig. 3: Frontal view
Fig. 4: Left view
Fig. 5: Top view
Fig. 6: Rear view
In these pictures (Fig. 1 up to Fig. 6) the MC 3 system is shown as an MC 3 104 unit.
www.kontron.com
15
