7. Product Description Micro Client 3 – User’s Guide (Version 1.0)
7.5. Left and Right Side View

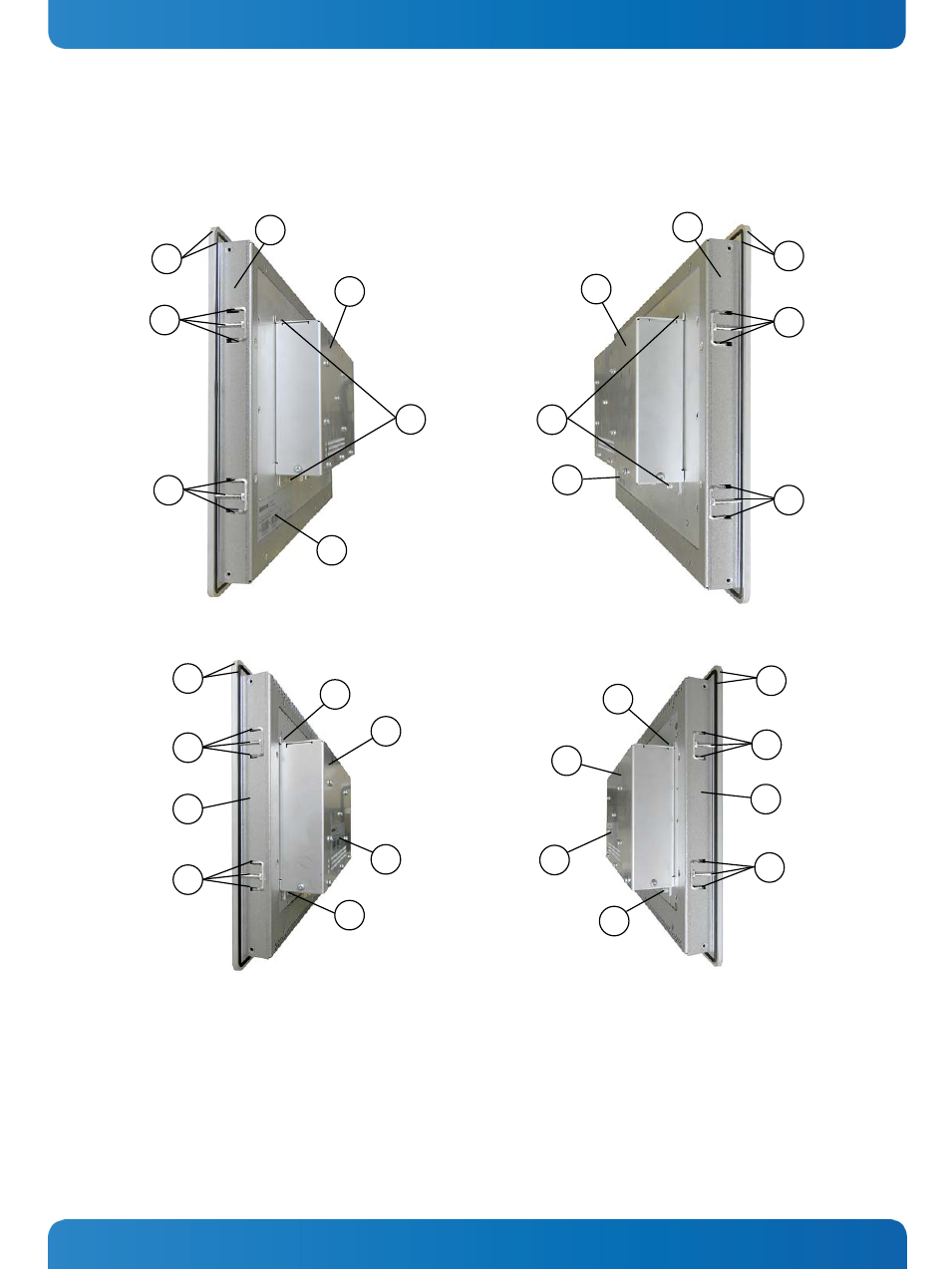

Fig. 32: Right side shown as MC 3W 156 system Fig. 33: Left side shown as MC 3W 156 system
Fig. 34: Right side of the MC 3 104 system Fig. 35: Left side of the MC 3 104 system
Legend for Fig. 32, Fig. 33, Fig. 34 and Fig. 35:
1 Front panel of the system with seal at the rear side
2 Enclosure of the display
3 System cover 4 Mounting slots with installed mounting clamp and Allen
Screw
5 Screws that secure the cover on the top and bottom side
6 Type label of the MC 3 system with C-UL Listing Mark
1
2
5 5
6
6
1
3
3
6
4
4
1
4
4
2
3
4
4
5
3
5
2
6
1
4
4
2
5
5
