6

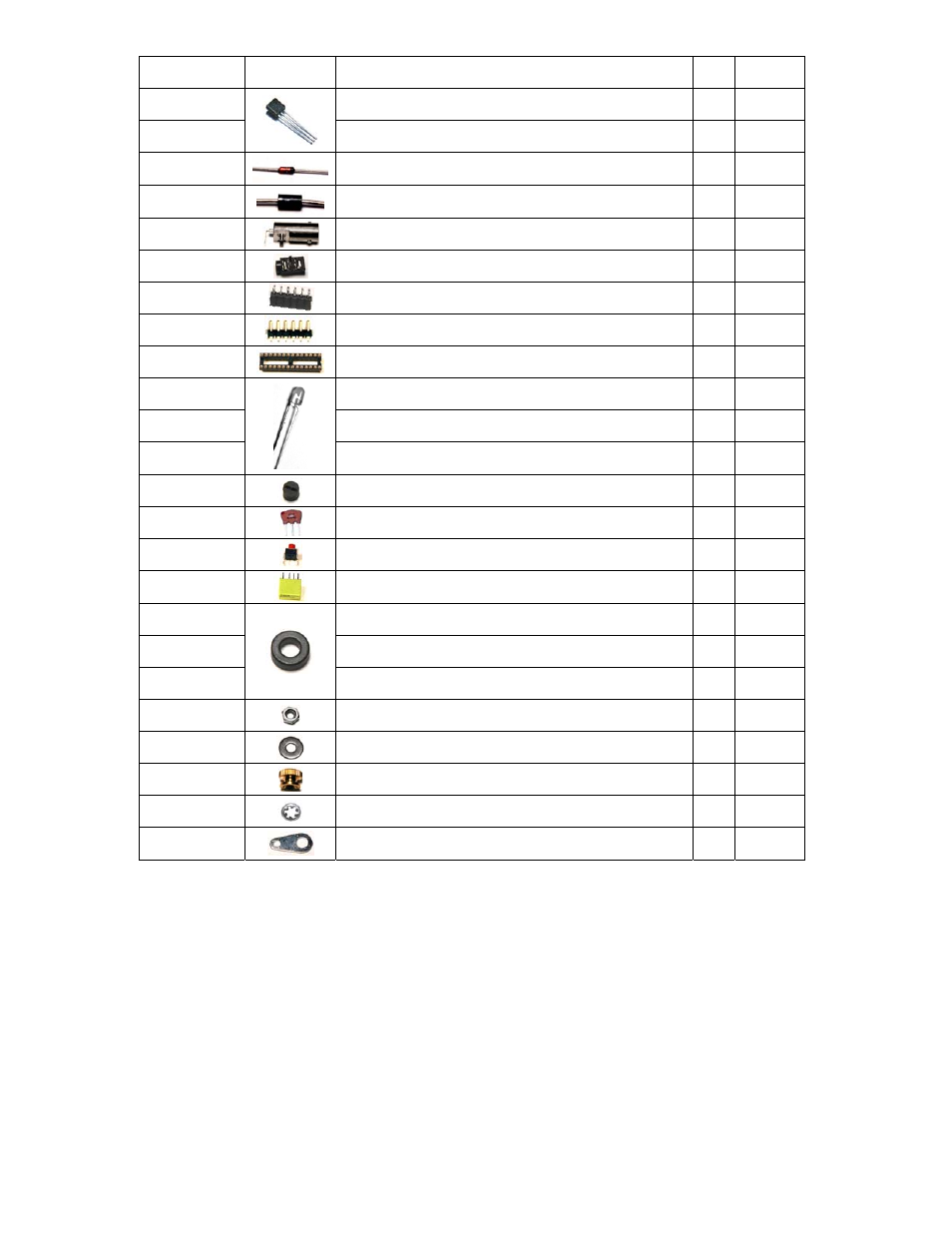

Ref. Photo Description Qty
Part
Number
Q1 Transistor 2N3906 1 E580000
U2 I.C. L78L06 or LM78L06 1 E600001
D1,D2, D4 Diode 1N5711 3 E560004
D3 Diode 1N5817 1 E560008
J1,J2 BNC female, PCB mount 2 E620075
J3 Stereo jack, 3.5 mm, miniature 1 E620087
J4, J5 Conn., 0.1" spacing, 6 pin female, low-profile 2 E620096
P1, P2 Conn., 0.1" spacing, 6 pin male 2 E620095
Misc. Socket for U1, low-profile, 28 pins 1 E620074
D6 LED, green 1 E570021
D7 LED, yellow 1 E570020
D8 LED, red 1 E570019
Misc. LED spacer 3 E570024
Z1 Ceramic resonator, 4.0 MHz 1 E660001
S1,S2 Switch, Tactile, SPST, 6 mm, actuator length 7 mm 2 E640022
K1-K15 Miniature DPDT relay 15 E640010
T1,T2 Toroid, FT37-43 (Gray) 3 E680003
L1-L5 Toroid, T37-6 (Yellow) 5 E680013
L6-L7 Toroid, T37-2 (Red) 2 E680006
Hardware Hex nut, 6-32 1 E700040
Hardware Flat washer, #6 1 E700067
Hardware Knurled thumb-nut, brass, 6-32 1 E700094
Hardware Lock washer, #6 internal tooth, stainless 1 E700095
Hardware Solder lug, #6 1 E700096
