SERIES 901 QUICK SET 4 1/2" NONTHERMAL FRAMING
1/4" GLAZING
SHEAR BLOCK PKG. FOR
#8583 HORIZ. at 135°
S.S.G. OUTSIDE CORNER
(1) FT92, (1) FT93, (2) MTZ4, (4) SPC9,
(1) S110
SHEAR BLOCK PKG. FOR
#8583 HORIZ. at 135°
S.S.G. INSIDE CORNER
(1) FT94, (1) FT95, (4) MTZ4, (2) SPC9,
(1) S110
DESCRIPTION PART NO. DESCRIPTION PART NO.
K490
K491
HNA1
1/4" SETTING BLOCK AT
SILL CAN
WEEP BAFFLES
25 PER PKG.
HCW6
INTERMEDIATE
HORIZONTAL SETTING
BLOCK USE w/ 9469
HEP2
BUTT GLAZED SPACER
3/8" x 1/2" TAPE USE w/
7028 & 7253
WM10
TEMPORARY GLAZING
CLIP USE w/ 7028 & 7253 HV11

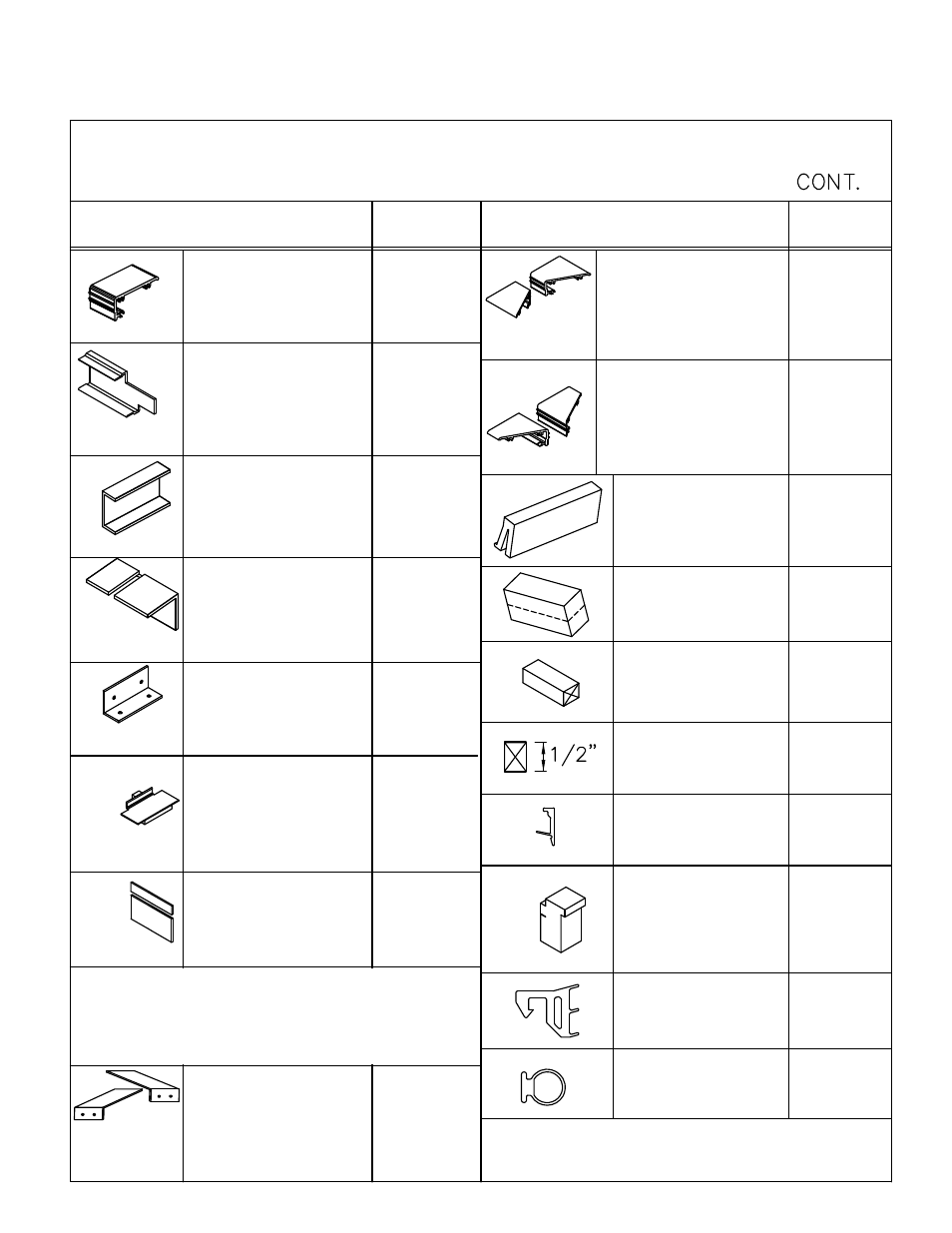

SECTION II A - PARTS IDENTIFICATION CHART
PAGE 3
HORIZONTAL END DAM
at 2 PC JAMB INSTALLS
IN GLAZING POCKET IN
HEAD & SILL CAN
HN30
W164
W138
GLAZING GASKET
500' PER ROLL
STANDARD WEATHER
SEAL @ DOOR STOPS
INTERMEDIATE
HORIZONTAL SHEAR
BLOCK USE
w/ 9469 (1) F365, (3) MRF8, (1) S110
9470
K176
F076
F077
2 1/2" C.O.C. DOOR
HEADER SHEAR BLOCK
901 - 9598
(2) STV2, (1) F076/(1) F077
(2) S117/(2) STD8
K309/K311
(CLR. - R / L)
K310/K312
(BRZ. - R / L)
FS67
2" DOOR JAMB as DOOR
HEADER SHEAR BLOCK
901 - 9597
(1) FS67, (2) STV2, (2) MRF1/(2)
MRF6
K278
(CLR.)
K279
(BRZ.)
TRANSOM HEADER SHEAR
BLOCK PACKAGE USE w/
9472
(1)F259,(1)F260,(6)STT6,(4)MRF6
K277
HEAD/SILL CAN ANCHOR
CLIP (USE w/ 9578 at
JAMBS)
(1) FT14, (4) SFP8
HORIZONTAL BRIDGE
ASSEMBLY 1/4" GLAZING
at BUTT GLAZE
MULLIONS ONLY w/ INT.
HORIZ.
(1) F023, (1) H189, (1) WM76
INTERMEDIATE
HORIZONTAL FACE SPLICE
USE w/ 9565 FACE
(1) F024, (1) F025
K433
K143
K146
HEAD/SILL SPLICE for 901
(USE w/ 9479)
25 PER PACKAGE (1) F014, (1) WM96,
(1) WM01
SHEAR BLOCK PKG. FOR
#8583 HORIZ. @ 90° S.S.G.
INSIDE/OUTSIDE CORNER
(1) FT98, (1) FT99, (4) STV2, (4) STK4
FT98
FT99
7885
FT14
EX32
Q-SET CDB 9/2009
K376
K493
