SECTION V A - GLAZING PROCEDURES FOR
BUTT GLAZED VERTICAL
STEP 7)

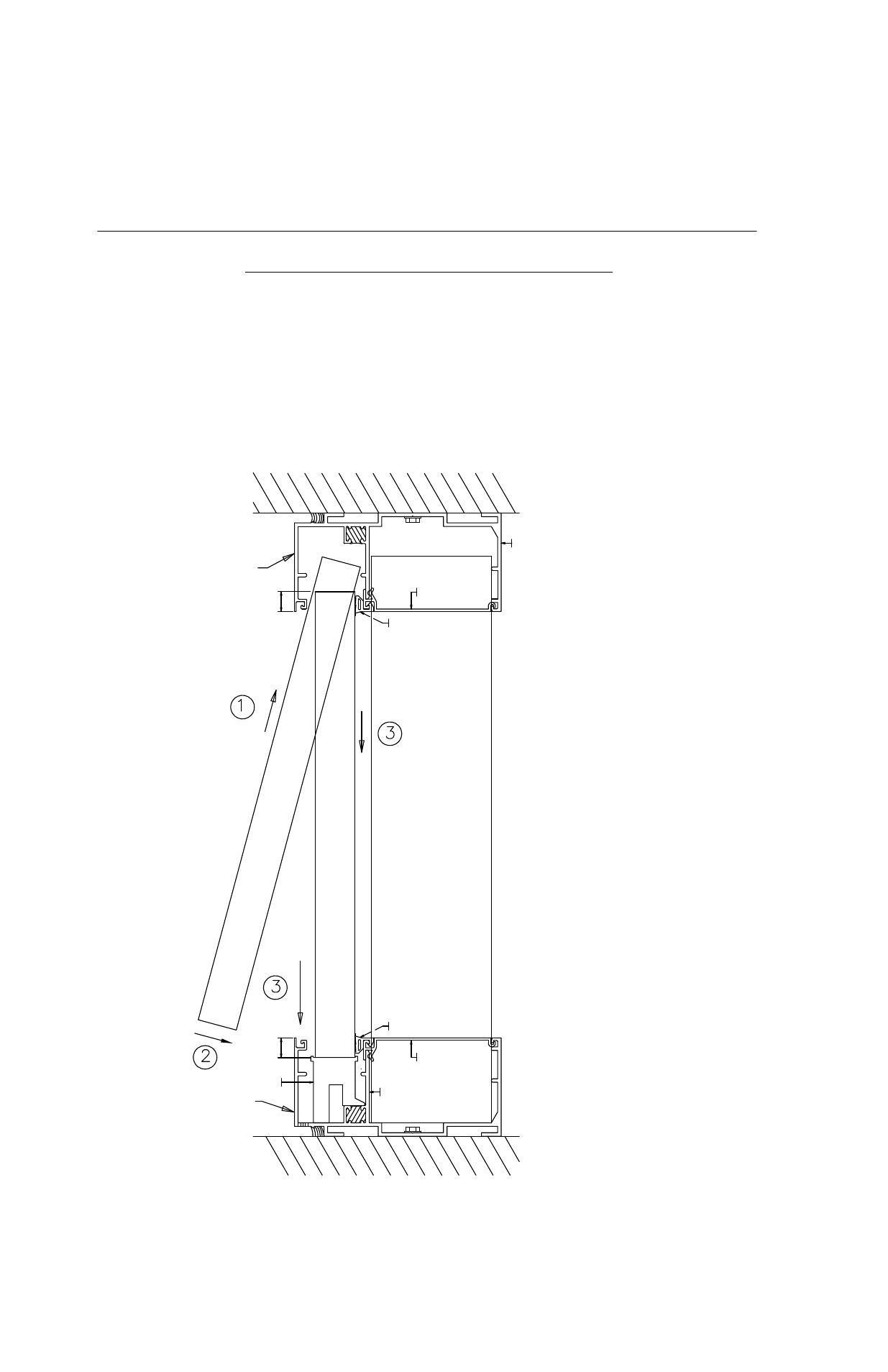

Lift the glass into the head can glazing pocket. Then set it
down on the setting blocks in the sill can glazing pocket, and
slide the glass horizontally into proper position.
NOTE:
If there are no vertical intermediates being used, proceed to
nstall the exterior glazing gasket as described at Step 1 on page 37.
HEAD
1/2"
G.B.
9485
9484
W102
G
LA
SS
U
N
IT
1/2"
G.B.
W102
9485
9484
HN33
SILL
[FIG. 46]
DPS 6/2003 QUICK SET
PAGE 40
(CONT.)
