EFCO CORPORATION 1/2013 PART NO. Y001 Page 9 of 94
Series 401,402, & 403 Installation Instructions
Steel Reinforcing:
Fasteners:
S401 Drill Jigs:
Drawings on this page are not to scale.

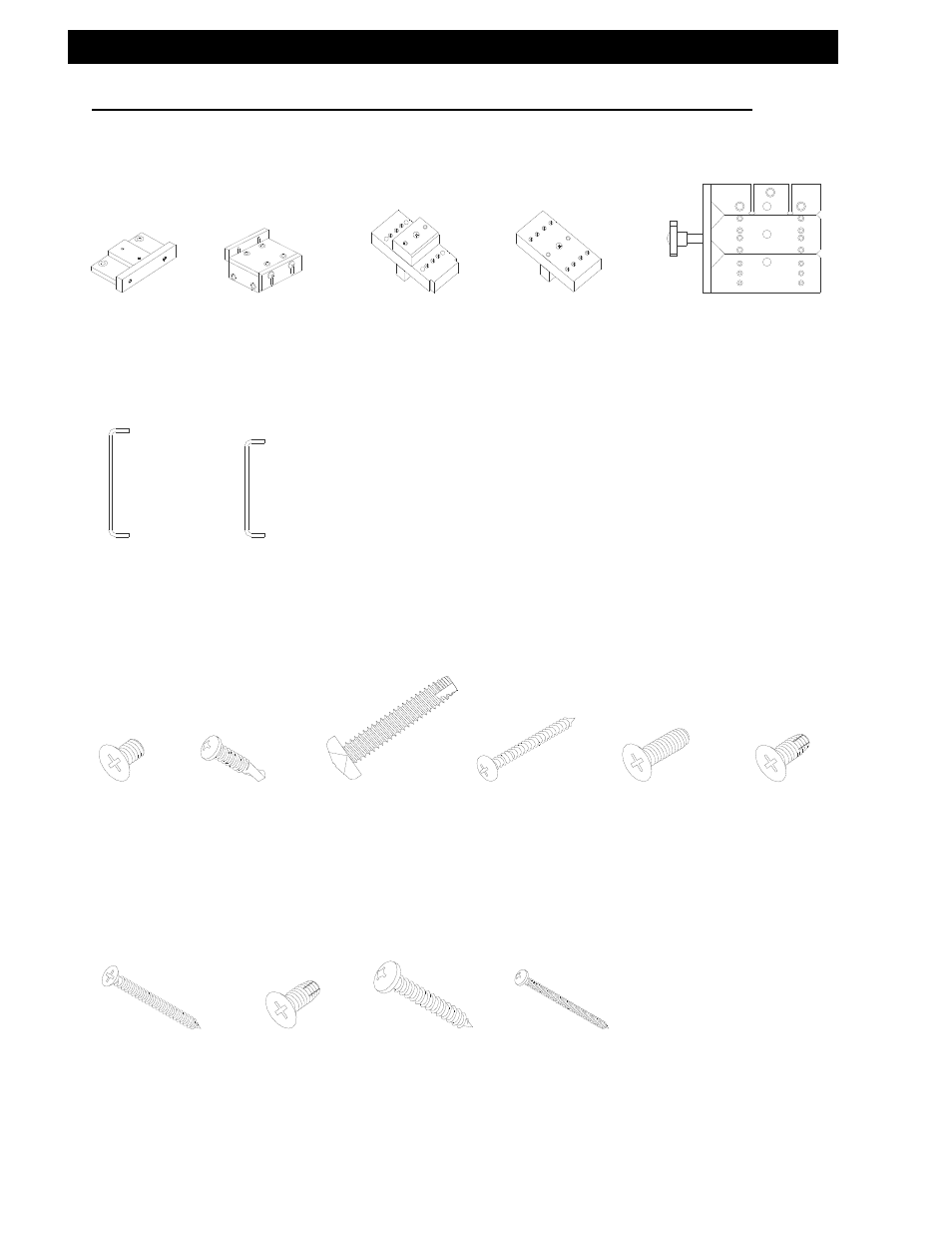

SECTION II: A. S401 PARTS IDENTIFICATION
DJ01
Shear Block Drill
Fixture
(Head Members)
DJ03
Shear Block Drill
Fixture
( Horizontals to
Shear Blocks )
H700
Economy Drill
Guides
( Shear Block to
Vertical )
H701
Economy Drill
Guides
( Screw Spline
Application )
H382
Shear Block /
Screw Spline
Drill Fixture
( At Verticals )
L100
Tubular Mull
Reinforcing Steel
Use W/ 9102,
9108, 9109,
9112 & 9120
L101
Expansion Mull
Reinforcing Steel
Use W/ 9103 &
9104
M109
Threshold Clip
Screw
#12-24 x 3/8”
FH-MS
STK0
Adjustable Side
Lite Base Vert. to
Mull Attachment
Screw 4 ½”
Deep Base
#8-18 x ¾” PH-
SMS 410 TEK/2
S129
Frame Spline
Attachment
Screw
#10-16 x PH-
SMS
Type 25
Zinc Chromate
S100
Shear Block
Attachment
Screw
#8 x 1 ¾” PH-
SMS
M100
( CLR )
M108
( BRZ )
Frame to Offset
Pivot Screw
#12 x ¾” FH-
SMS-F
S123
High Side Lite
Base Shear
Block Screw
#12 x ¾” FH-
SMS-F
S109
High Side Lite
Base Shear
Block Screw
#8 x 2 ½” FH-
SMS
S110 (CLR)
S113 (BRZ)
Horizontal to Shear
Block Screw
#12 x ½” FH-MS-
“F”
STT7
Adjustable Side
Lite Base
Vertical
Attachment
#10-12 x 1” PH-
SMS
STU5
Adjustable Side
Lite Vert. to Mull
Attachment
Screw 2 ½”
Deep Base
#8-15 x 2” PH-
SMS
